Product Specifications
| Prod Model: |
XJJUD-5.5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Impact Testing Machine |
| Weight: |
0-100Kg |
| Power Source: |
AC220V |
Product Description

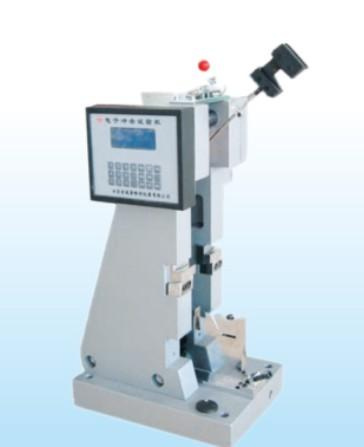

XJJUD-5.5 Pendulum Impact Testing Machine is an ideal instrument used to conduct impact tests on thermoplastic materials such as hard plastic, enhanced nylon, ceramic, toughened glass and dielectric etc. In order to determine their impact fragility characteristics under specify stress conditions. It is widely adopted by scientific research institutes, colleges, universities and many non-metallic materials manufactures and laboratories.
|
Specification |
|
|
XJJUD-5.5 |
|
|
Charpy Impact Test |
|
|
|
|
Impact velocity |
|
|
3.5 m/s |
|
|
Pendulum energy |
|
1J, 2.75J, 5.5J |
|
|
Rising angle |
|
|
150 degree |
|
|
Span of anvil supporters |
|
40mm, 60mm, 70mm, 95mm |
|
|
Corner dimension of Striking edge |
30 degree |
|
|
Round angle radius of striking edge |
R=1mm |
|
|
Indication |
|
|
Digital Display |
|
|
IZOD Ompact Test |
|
|
|
|
Impact velocity |
|
|
3.5 m/s |
|
|
Pendulum energy |
|
0.5J, 1J, 2.75J, 5.5J, 11J, 22J |
|
|
Rising angle |
|
|
150 degree |
|
|
Pendulum moment |
|
Pd 0.5=0.26795Nm |
Pd 5.5=2.8355Nm |
|
|
|
|
|
Pd 1=0.5359Nm |
Pd 11=5.6711Nm |
|
|
|
|
|
Pd 2.75=1.41775Nm |
Pd22=11.3419Nm |
|
Round angle radius of striking edge |
R=0.8mm |
|
|
Indication |
|
|
Digital Display |
|
TIME Group Inc. was established in 1984 is a leading manufacturer of Material Testing Machines in China. TIME Group Inc. has over 2, 800 dedicated, highly skilled employees in facilities located in China. From engineering, service, training, to front-line support, our commitment to customer satisfaction is the driving force behind everything we do. In 1995, we achieved the ISO 9001 certificate, and we have got many other certificates, such as CE. We are not only famous in China, but also have been exporting into more than 35 oversea countries and area.
JINAN SHIJIN GROUP was established in 1952, is the leading company in testing machine industry, honored as the excellent HI-TECH company in China. In August, 2003, TIME GROUP INC. Merged SHIJIN GROUP, this is a landmark in China testing machine industry.
We invested 180 million RMB to build a new factory of TIME SHIJIN GROUP in the Jinan economy & technology development district in 2010, and it occupies 102 Mu, with building area 46800 sq. M. It consists of 10 production lines: Foundry, Heat Treatment, Painting, Big Parts, Accessories, Bearings, Electric, Oil Sources, Load Frame, Installation & Calibration, Diversified Big Digital Controlled Processing Centers and 131 units of special machine tool equipments. The advantages of our new factory are not only the biggest production capacity in the Testing Machine industry of China, but also with the most modern technology.
Our main products include:
--Servo Hydraulic Universal Testing Machine
--Hydraulic Compression Testing Machine
--Electronic Universal Testing Machine
--Pendulum Impact Testing Machine
--Torsion Testing Machine
--Fatigue Testing Machine
--Friction & Wear Testing Machine
--Hardness Tester
--Spring Testing Machine
--Metallographic
