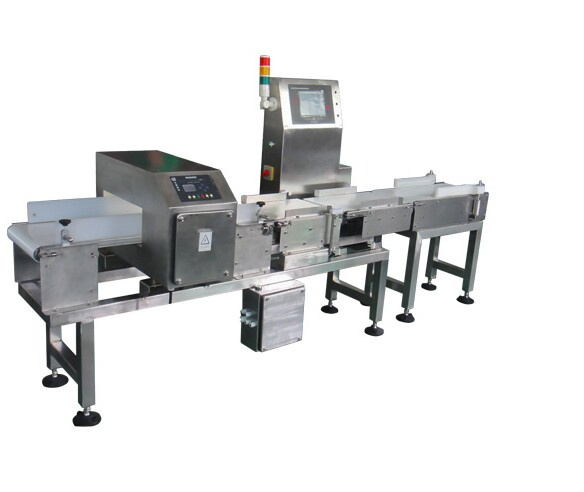

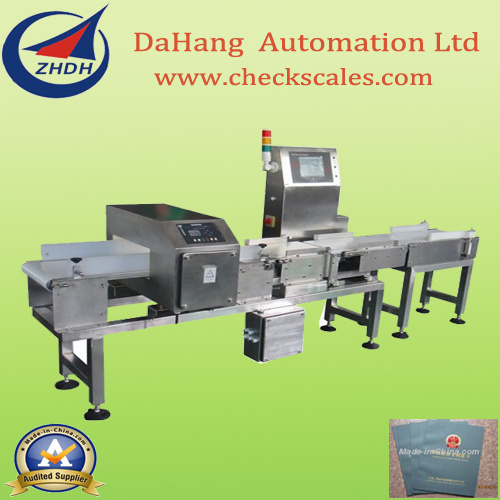

Checkweigher with Integrated Metal Detector
| Price: |
US $ 8500-10000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Money Gram,Western Union |
Combo Metal Detector With Check Weigher For Fresh Food/packed Food/rubberSpecification· Used to check the single product whether it was polluted by metals and its weight is in
accordance with target weight or not. This is an economy, durable and integrative solution.· Theory: Electric Induction/ Digital Load Cell· Belt Speed: 50~60/minute· Accuracy: ±0.1g· Weighing Range: 100~5000g· Minimum Scale: 0.01g· Sensitivity: FE Φ≥0.2-2.0mm SUSΦ≥0.6-4.0mm· Sorting Speed: 200items/min.· Product Size (mm): 300L×250W×(10-200) or customized designed· Reject Device: Air jet/flipper / pusher/dropdown· Operation Method: Touch Screen· Alarm Method: Buzzer and lamp· Power Source: AC110V/220V 50-60HZ· Power: Appr. 300W· Weight: Appr. 260kg· Dimension: 1630mm(L)*800mm(W)*750±20mm(H)· Accuracy, Sorting Speed and sensitivity are affected by product shape, conditions, nature,
bet speed etc.Features· High accuracy sensor based on advanced, high speed Digital Proceesing Technology· Dynamic weight compensate technology, Automatic ZERO point analyse and tracking
technology· 100 Product Preset; Simple product edit and product store· Quick product change and automatic adjust product sorting speed· Stainless Steel Conveyor with high waterproof level design· Based on friendly touch screen operation· Based on 32bit high speed CPU· Multi-functions operation system and multi-languages for option· Automatic reject system, different reject device for option· Updated Product Learn function· Variety of peripheral system connection and setup· Multi-frequencies for option· Digital Signal processing technology and multiple digital filter
| Prod Model: |
CW&MD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
Electronic |
| Usage: |
Universal Testing Machine |
| Operation Method: |
Touch Screen |
| Housing: |
Su201/Su304 |
ZhuHai DaHang was established in 2005. In 2014 the company name changed to ZhuHai DaHang Automation Equipment Co., Ltd with 10 million RMB registered capital, it is a branch of Zhuhai KangDing Electronics Co., Ltd which is a listed company (Stock Name: K. D Electronics, Stock Code: 830928).
Zhuhai Dahang is an integrated high-tech enterprise which includes research and development, production, sales and service in the industry of weight sorting, check weight, non-standard automatic technology and equipment with 10 year industry experience.
Core Competitivenes:
1. Leader brand in industry, occupied 80% of Chinese marketing
Dahang equipment widely be used many fields and were validated by many leading enterprises, Dahang have the largest and most stable customers resource in China, market share and excellent rate were the first one in industry, Dahang occupied 80% of Chinese marketing
2. The biggest professional research center and production base
Zhuhai Dahang have the strongest team of technology research and development in domestic, including the general engineer Mr. Yangcheng who is the leader of online weighing industry reported by CCTV10. Dahang is SGS supplier passed the SGS authentication, existing plant area of 3000 square meters.
3. Technology leading in industry, The first one of several technical indicators in domestic
Zhuhai Dahang Self-help develop unique dynamic weighing control system with high stability andpracticability. The weighing sorting accuracy can reach ± 0.05g, sorting speed can reach 200 times/min, the top sorting rank can reach 16 levels, the technical indicators always keep the first position in domestic industry.
4. Inventing patents
Zhuhai Dahang got 9 Technology Licensing Patents and 4 Computer Software Copyrights. Dahang invented
Seafood Weight Sorting Machine and Rotating Disc Weight Sorting Machine. Dahang is the inventor of weigh
Sorting company special reported by CCTV10 scientific channel.
5. Strong Scientific research support, cooperate with 3 high universities
Zhuhai Dahang cooperated with 3 Chinese high universities to sure strong research support, including Jilin University of Electric design and research Institute, Beijing University of Aeronautics and Astronautics of Mechanical Engineering and Automation Institute, Zhangjiajie Aeronautical Engineering Institute of Aviation electrical and information engineering department.
