| Price: | US $ 20/Roll |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 20/Roll |
| Pay Type: | L/C,T/T,Paypal,Western Union |
| Prod Model: | MS-CWN |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Finished: | Hot Dipped or Electro Galvanized, PVC Coated |
| Aperture: | 1", 1/2", 2", 3/4" etc |
| Roll Lengtth: | 15.24m, 30m, 50m |
| Roll Width: | 0.6m-3m |
| Wire Diameter: | 0.6-1.4mm |
| Certificate: | ISO 9001:2000 |
| Application: | Window Curtain |
| Weave Method: | Twist |
| Material: | Galvanized, Stainless Steel and PVC Coated Wire |
| Surface Treatment: | Galvanized or PVC Coated |
| Weave Technique: | Twist |
Material:
High quality steel wire ,galvanized wire,stainless steel wire or Pvc coated wire.
Two standard zinc coating for hot-dipped galvanzied:
1) normal zinc coating(50-60g/m2)
2) heavy zinc coating(260g/m2)
Netting type:
Electro Galvanzied before weaving Hexagonal Wire Netting
Electro Galvanzied after weaving Hexagonal Wire Netting
Hot dipped Galvanzied before weaving Hexagonal Wire Netting
Hot dipped Galvanzied after weaving Hexagonal Wire Netting
PVC coated before or after weaving Hexagonal Wire Netting
Character of hexagonal mesh netting
<1>Economic, you just only to put the mesh on wall or constructional stucco will be ok;
<2>It is easy to use, without any special technique;
<3>Have a strong ability of corrosion, antioxidant and resist the destroy from nature;
<4>Can bear a widespread out of shape;
<5>Fasten, keep warm, has excellent thermal insulation properties;
<6>Galvanized balance for the good technique and better corrosion;
<7>Less transportation expenses. Can be rolled and water proofed with little space.

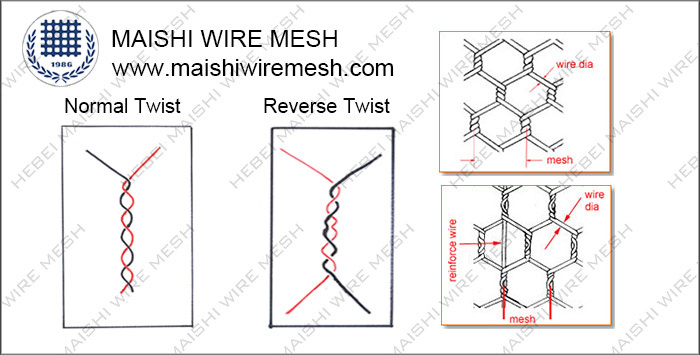

Weaving type: Normal Twist and Reverse Twist
Maishi Standard Specification
Maishi Hexagonal wire netting | |||||
mesh | Min. Gal.v. G/SQ.M | Width | Wire Gauge (Diameter) BWG | ||
Inch | mm | Tolerance(mm) | |||
3/8" | 10mm | ±1.0 | 0.7mm - 145 | 2' - 1M | 27, 26, 25, 24, 23 |
1/2" | 13mm | ±1.5 | 0.7mm - 95 | 2' - 2M | 25, 24, 23, 22, 21 |
5/8" | 16mm | ±2.0 | 0.7mm - 70 | 2' - 2M | 27, 26, 25, 24, 23, 22 |
3/4" | 20mm | ±3.0 | 0.7mm - 55 | 2' - 2M | 25, 24, 23, 22, 21, 20, 19 |
1" | 25mm | ±3.0 | 0.9mm - 55 | 1' - 2M | 25, 24, 23, 22, 21, 20, 19, 18 |
1-1/4" | 31mm | ±4.0 | 0.9mm - 40 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
1-1/2" | 40mm | ±5.0 | 1.0mm - 45 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
2" | 50mm | ±6.0 | 1.2mm - 40 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
2-1/2" | 65mm | ±7.0 | 1.0mm - 30 | 1' - 2M | 21, 20, 19, 18 |
3" | 75mm | ±8.0 | 1.4mm - 30 | 2' - 2M | 20, 19, 18, 17 |
4" | 100mm | ±8.0 | 1.6mm - 30 | 2' - 2M | 19, 18, 17, 16 |
Technical Note: | |||||
Specification List of Hexagonal Wire Mesh | |||
Specification in Metric Unit | Specification in Inch | Wire Diameter in BWG | Technical Note |
1.5cm | 1/2" | 22 | Max. roll width: |
24 | |||
2cm | 3/4" | 20 | Max. roll width: 2m ,single, double edge,or reinforced |
22 | |||
24 | |||
1.8cm | 5/8" | 21 | Max. roll width: 4', single or double edge |
23 | |||
25 | |||
2.5cm | 1" | 19 | Max. roll width: 2m , straight or reverse twist |
21 | |||
23 | |||
3cm | 1.25" | 19 | Max. roll width: 2m , straight or reverse twist |
21 | |||
4cm | 1.5" | 18 | Max. roll width: 2m |
20 | |||
22 | |||
5cm | 2" | 18 | Max. roll width: 2m |
| |||
Uses: With its good corrosion resistance and oxidation resistance, serves well as strengthing, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, petroluem, chemical, breeding, garden and food processing industries.
Extensively used as reinforcement and fencing in industrial, agricultural and constructions. It is also used as Fence for Poultry Cage, Fishing, Garden and Children playground, etc
Advantages:
Delivery time usually within 25-30 days.
Packed with strong PVC bag, at your request.
If there is quality problem, we can compensate accordingly.

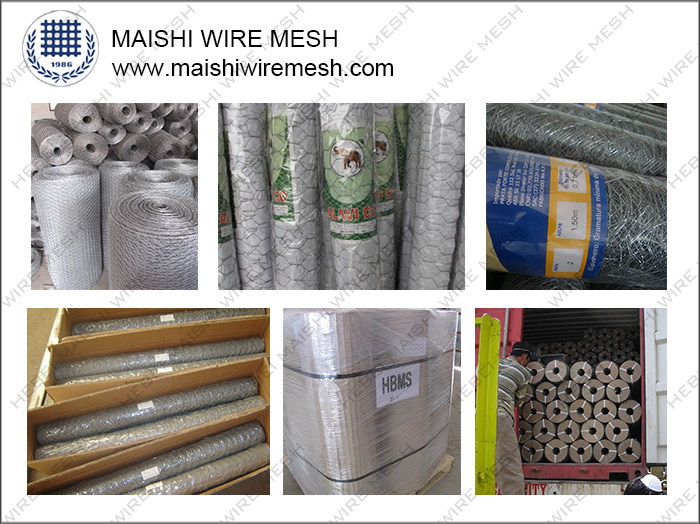

Package: in waterproof paper. Custom packing available at request.
Payment:
T/T100%,T/T50% in advance deposit, the balance T/T70% after loading goods on board. Main Delivery Port:Chinese Xingang port.
Production Capacity:
800,000,000,00 square meter per days. 130 sets machinery.
Delivery time: Usually 10-25days after receiving the prepayment. According to the final order.
Payment: T/T 30% in advance and balance against the B/L within 5 days
L/C at sight
Guarantee: Goods can be compensated and returned if you are not satisfied with the quality.
Wire netting with hexagonal opening offers good ventilation and fencing uses. Hexagonal wire netting is made of twisting carbon steel wire, electro or hot dipped galvanized, then plastic coated, or plain.
Hexagonal opening woven wire netting is mostly used as light fencing for poultry, farms, for birds, rabbits and pet enclosures, tree guards and garden fencing, storage bins and decorative supports tennis courts. It is also used as wire mesh fabrics for light reinforcement in splinter proof glass and cement concrete, plastering and laying of roads, etc.
It can be fabricated into gabions boxes - one of the most popular wire products for flood control. Then stones are put into it. Laying of gabions make a wall or bank against water and flood. Hexagonal wire netting is also welded into poultry netting for breeding of chicken and other poultry. Popularly used as fences after green coated, and costs can be reduced. In the past years, the hexagonal wire netting made of galvanized iron wire has been used in fences, breeding and construction reinforcement.
Certifates:
Passed ISO9001:2000 certificate, China notional test, Faith Enterprises of government.
