China 6*4 Hino Dump Truck with Lowest Price
| Price: |
US $ 35000-65000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |

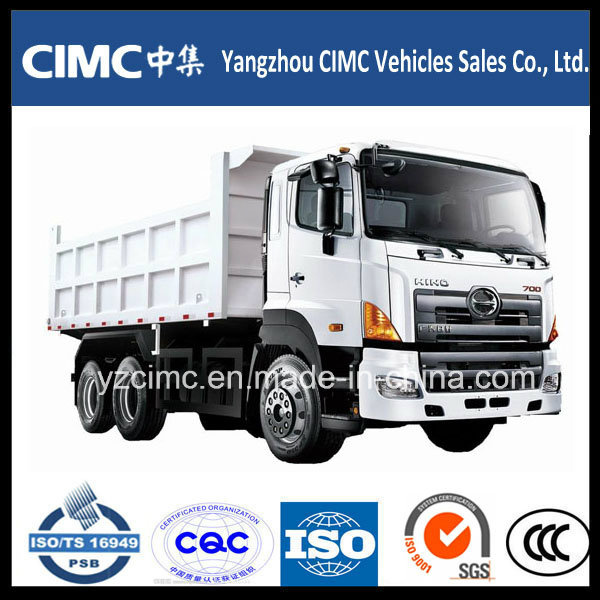

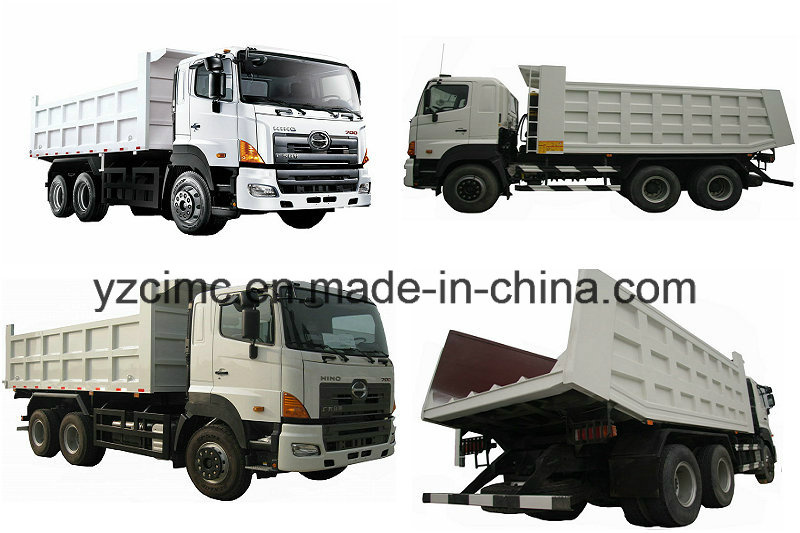

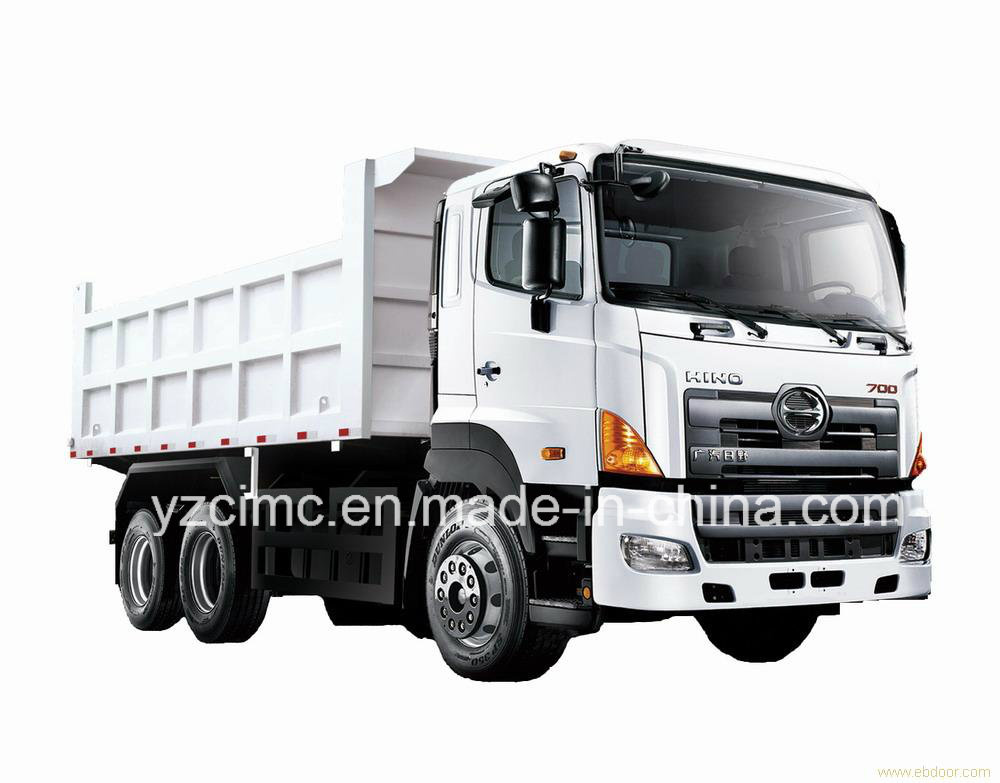

China 6*4 Hino Dump Truck With Lowest Price
| Product Categories | Tipper truck chassis |
| Product Type | FS2PMUD-YPW | FY2PWUD-EPW | FY2PWUD-CPW | FY2PYUD-EPW | FY2PYUD-CPW |
| Configuration coding | W1-W500 | W1-Z600 | W1-Z500 | W1-4Q00 | W1-4P00 |
| Drive mode | 6x4 | 8x4 |
| Maximum gross weight (kg) | 25,000 | 31000 | 31000 | 31000 | 31000 |
| Cab | Standard | Standard | Standard | Standard | Standard |
Dimensions
(Length x width x height) (mm) | 8080x2495x3120 | 10030x2495x3130 | 10030x2495x3130 | 10500x2495x3130 | 10500x2495x3130 |
Compartment steeplechase inner dimension
(Length x width x height) (mm) | 5420x2300x1200 | 7600x2300x1100 | 7600x2300x1100 | 8000x2300x1000 | 8000x2300x1000 |
| Wheelbase (mm) | 3750 + 1410 | 1850 + 3850 + 1410 | 1850 + 3850 + 1410 | 1850 + 4300 + 1410 | 1850 + 4300 + 1410 |
| Front / rear track (mm) | 2060/1855/1855 | 2060/2060/1855/1855 | 2060/2060/1855/1855 | 2060/2060/1855/1855 | 2060/2060/1855/1855 |
| Front / rear overhang (mm) | 1410/1510 | 1410/1510 | 1410/1510 | 1410/1530 | 1410/1530 |
| Approach / departure angle (°) | 20/20 | ≥23 / ≥22 | ≥23 / ≥22 | ≥23 / ≥22 | ≥23 / ≥22 |
| Minimum ground clearance (mm) | ≥220 | ≥240 | ≥240 | ≥240 | ≥240 |
| Minimum turning diameter (m) | ≤17 | ≤22 | ≤22 | ≤23 | ≤23 |
| Curb weight (kg) | 9400 | 11100 | 11100 | 11200 | 11200 |
| Maximum speed (km / h) | ≥90 | 75 | 75 | 75 | 75 |
| Engine Model | P11C-UJ | P11C-UR | P11C-UJ | P11C-UR | P11C-UJ |
| Rated Power (PS) kW / r / min | 259/2100 | 259/2100 | 259/2100 | 280/2100 | 280/2100 |
| Maximum torque Nm / r / min | 1454/1100 | 1454/1100 | 1454/1100 | 1594/1100 | 1594/1100 |
| Carriage Lifting time (s) (load) | ≤20 | ≤50 | ≤50 | ≤50 | ≤50 |
| Car Landing time (s) (load) | ≤20 | ≤50 | ≤50 | ≤50 | ≤50 |
| Maximum lift angle (°) | 45 ± 2 | ≥45 ± 2 | ≥45 ± 2 | ≥45 ± 2 | ≥45 ± 2 |
| Displacement L | 10.520 | 10.520 | 10.520 | 10.520 | 10.520 |
| Clutch | Dry-type single DSF-430 | Dry-type single DSF-430 | Dry-type single DSF-430 | Dry-type single DSF-430 | Dry-type single DSF-430 |
| Transmission | 12JSD160TA | ZF9S1820 | 12JSD160TA | ZF9S1820 | 12JSD160TA |
| Front / rear axle | THD18 | THD18 | THD18 | THD18 | THD18 |
| Tire | 11.00R20 | 11.00R20 | 11.00R20 | 11.00R20 | 11.00R20 |
| Emission standards | State III | State III | State III | State III | State III |
Company information
CIMC VEHICLES SALES CO., LTD.
CIMC VECHICLE was founded by CIMC group, which fixes the mission to be customers' partner for modern transportation. CIMC is dedicated to manufacturing and supplying CIMC trucks, CIMC truck body assembly, trailers, tank equipment. Currently, CIMC owns USD 8.8 billion total assets, USD 2.6 billion net assets, USD 8.4 billion annual sales and USD 0.6 billion net profits in 2010, having over 150 subsidiaries and 63, 000 staff across China, North America, Europe, Asia and Australia.
Vehicles: CIMC has over 1000 lines of products in 11 series, including container chassis, flatbed trailer, bulk lorry, tanker, self-dumper, reefer trailer, van, curtain side trailer, mixer, pump truck, car carrier vehicle, fire engine, sanitation vehicle, etc. With the annual output capacity of over 200 thousand units, it now takes the leading position in the world. Up to today, the Group has established 22 production bases.
Heavy Truck: Have its own production C & C brand truck. Other heavy truck CIMC produces the truck body, more than 2, 000 kinds of truck body for different transportation purpose. The truck chassis cooperates with FAW, DONGFENG DFAC, SHACMAN, SINOTRUK, FOTON, BEI BEN, JAC, CAMC, SI CHUAN HYUNDAI, SAIC-Iveco and so on, include all truck chassis brand production in China.
Welcome global heavy truck dealer to take a sight seeing of trucks, to taste values of "considerate service, benefits share"! Will bring you cost-saving solutions and eye-catching returns!Contact information
CIMC VEHICLES SALES CO., LTD.
Address: 8floor, Cimc Plaza, No. 10 West Wenchang Rd, Yangzhou, Jiangsu, China
Tel:86 - 514 - 85883338
Fax:86 - 400-8892 163 EXT 229538
Website: yzcimc.en.made-in-china.com
www.cimc.com
Mobile:86-151-5082-2016 (Mr.Allen)
| Prod Model: |
FS2PMUD-TPZ |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Driving Type: |
Left Hand Driving |
| Dimension(Lx W Xh)(Unloaded)(Mm): |
8080X2495X3120 |
| Cargo Body Size (L*W*H, Mm): |
5200/5400/5600/5800 X 2.3 X 1.5m |
| Engine: |
P11c-Vk,259@1900rpm |
| Tyre: |
11.00r20 |
| Wheel Base: |
3750+1410 |
| Gearbox: |
12jsd160ta |
| Rear Axle: |
Thd18 Ratio 5.857 |
| Steering: |
Power Steering |
| Clutch: |
Dsf-430 Dry-Type Single |
| Transmission Type: |
Manual |
| Power: |
Diesel |
| Load Capacity: |
21-30t |
| Emission Standard: |
Euro 3 |
| Drive Wheel: |
6?á4 |
| Engine Capacity: |
＞8L |
| Seats: |
≤5 |
| Horsepower: |
251-350hp |
| Tire Type: |
Inner Tube |
| Tire Certification: |
DOT |
| Tire Design: |
Tubeless |
| Dumping Type: |
Front Lifting Style |
| Condition: |
New |
