Product Specifications
Prod Model: |
RS-1801 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

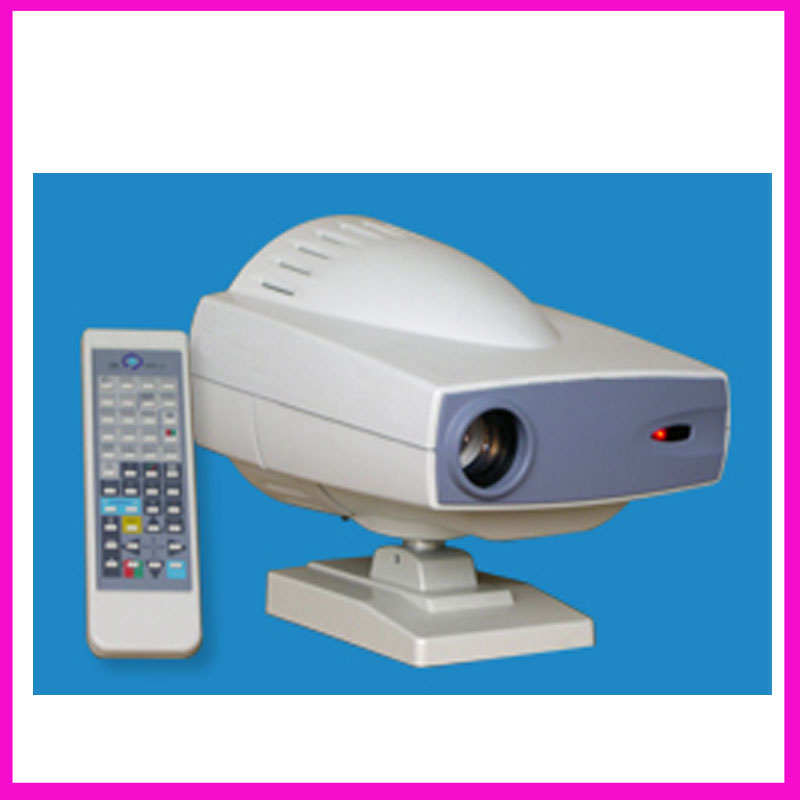

china Auto chart projector
LED lamp
Auto Projector can provide 30 types of clear icons with different functions, and can program icon groups per specific needs. It can produce more precise measurement results in shorter time by remote controller and fast toggling icon, applying red/green & polarized icon test sheet, binocular eyesight and binocular balance.
Easy installation and maitainence
It is quite easy to replace light bulks, and unnecessary to adjust its focus and position
Customer Programmable
Icons can be displayed in predefined sequence by programming.
Display Single Icon
Display single icon by multi-function mask plate.
Tilted Placement
Perfect image position can be obtained by adjusting the horizontal axis of projector
NOTE: There are three groups of charts can be selected, see the pictures.
NOTE: RS-1800A and RS-1800A, the difference is only the light, RS-1800A is Halogen Lamp, and RS-1800B are LED light.
Projection distance | 1.5m~ 6m |
Projection magnification | 30 x (at 5m) |
Projection size | 330mm(W) x270mm(H) (at 5m) |
Chart | 30 different pattern |
Speed of chart conversion | One chart per 0.03s |
Mask | 1 open, 5 horizontal lines,8 vertical lines, 21 single letters, 1 red/green |
speed of mask conversion | One mask per 0.03s |
Program | 2 sets programs, each program contains up to 30 steps |
Light source | LED |
Auto-off function | After 10 minutes idle time. |
Power source | AC 220V ,50Hz or 110V, 60Hz |
Power consumption | 80W |
Dimensions | 300mm(L) x 230mm(W) x 240mm(H) |
Net weight | 6Kg |
Accessories | Remote control, Polarized metal screen, halogen lamp, polarized glasses, fuses(2), batteries(2) |
Optional accessories | Floor stand, wall stand |
Nanjing Redsun Optical Co., Ltd. is a professional manufacturer and distributors in the field of optical lens and ophthalmic instruments. Our company locates in the beautiful city of Nanjing in Jiangsu province. Nanjing is only 300km from Shanghai, Nanjing is the center of politics, economy, culture of Jiangsu. There wre 6 dynasty capitals in Nanjing city.
We gained good reputation among our customers and partners both at home and abroad. We not only provide our own products but also promote other high-quality goods to our cusotmers. Gradually, we acted as a "purchaser" for our customers. By this way, we help customers to save their time and take quality inspection. "Price, Quality, Delivery, Service" is our key to success. Due to our experience and decade's business relations, we save our cost from raw material, which leads to a competitive price of our final products.
Our workers consider factory as their home. They have high enthusiasm to work, which enable our factory to have a high output. We have our inspecton department who check the final products once finished. We ensure all the goods delivered to customers is subjected to their requirements. We provide after-sales service to every customer. We will follow up their special request and devote to satisfying their need. Customers are not only customers but also our friends. How to help our customers to do larger business is what we are always concerning. When customers have large development and more profits, we believe our company is closer to success.
We will keep carrying out our good policy and make more friends. We are sincerely hoping to build up a long term business relations with our old and new customers from home and abroad. If you want to know more information about our company and our products, please do not hesitate to contact us.
