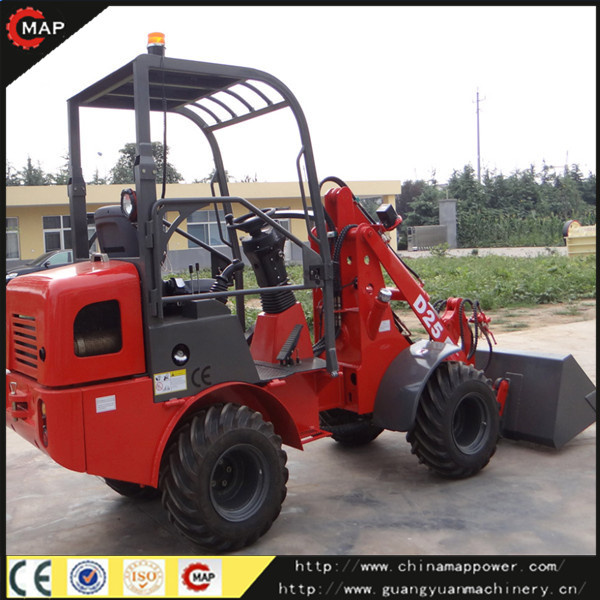

China Cheap Mini Loader
| Price: |
US $ 12630-12800/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
D25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Quick Hitch: |
Joystick |
| Type: |
Small Loader |
| Walking Mode: |
Wheeled |
| Load And Unload Method: |
Front Discharge |
| Certification: |
CE |
| Condition: |
New |
| Transmission: |
Hydrostatic System |
| Color: |
Red |
Product Description
Engine: Perkins 403D-11, 3 cylinders,
EURO stage III standard;
Rated power: 18.5kw(24.8bhp);
Rated bucket Load: 0.4CBM;
Four wheel drive;
Dump clearence: 2.20m;
Electric piston pump;
Closed hydrostatic transmission system;
With ROPS & canopy,
With quick hitch and standard Bucket
With all kinds of attachments
Excellent performance
Perkins power features low energy consumption and environmental protection.
The closed hydrostatic system has the feature of lower energy consumption.
Simple quick-change construction can meet multipurpose operation of users.
The integrated multi-functional control handle makes operation simple.
The monitor has the LED showing of fuel level by stages.
The unique frame hinge type is compacted and durable.
The widely applied broad-face tire and damping seat is safe and comfortable.
Small working radius, mobile and flexible.
Engine |
|
Model |
Perkins 403D-11 |
Rated power |
18.5kw(24.8BHP) |
Rated speed |
2800rpm |
Maximum torque |
67Nm |
| The ratio of fuel consumption |
252g/kwhr |
Dimensions |
|
Body length |
3690mm |
Body width(reverse tire) |
1050mm/970mm |
Body height |
2300mm |
Minimum ground clearance |
200mm |
Maximum dumping height |
2000mm |
Dumping reach |
600mm |
Wheel base |
1340mm |
Performance parameters of the machine |
Bucket |
0.4m 3 |
| Tipping load in shovel, vehicle straight |
798kg |
Tipping load in shovel, vehicle at 68° |
498kg |
Operating weight |
1470kg |
The sum of the work device |
8s |
Driving speed |
0-12km/h |
Minimum turning-circle radius |
|
Outside face of bucket |
1989mm |
Outside face of tyre |
1469mm |
Tyre specifications |
27*8.5-15TL |
Maximum turning angle |
±68 degree |
