Product Specifications
Prod Model: |
delphi pa66 connector |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Auto Connector: |
Delphi PA66 Connector |
Application: |
Audio & Video |
Gender: |
Male and Female |
Product Description

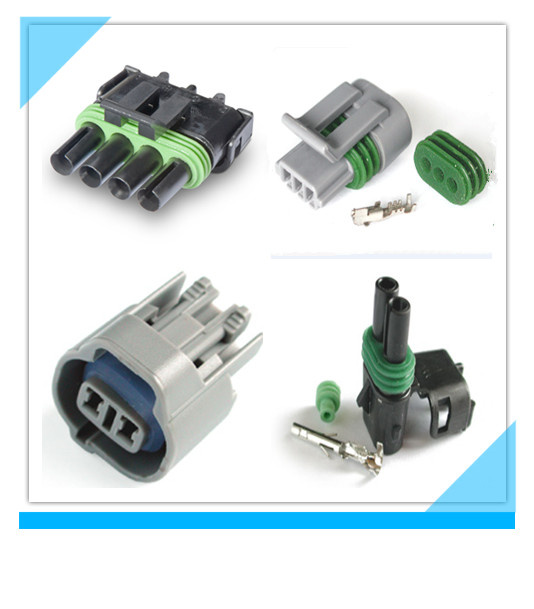

China factory delphi pa66 connector automotives
1) we are producing more than 2000 kinds of housings and terminals for TYCO/AMP/DELPHI/ FEP/Bosch/Deutsch/Yazaki/Sumitomo/FCI/AUDI/VW replacements.
2) Material: connector: PA66; terminal: brass/phosphor copper . We can offer one whole set including housing, terminals and seals, you can choose according your detail requirement too.
3) OEM Service Offered, Design Service Offered. We have one team with around 20-year experinence and set up national standards for automotive connectors in China. We are supplying not only to after-service market but also many big car maker sub-contractors too.
4) Fast delivery and 100% checking before shipment. Now we're exporting to worldwide with competitive prices , good quality and excellent services.
PA66 PLASTIC of Auto Connectors |
|
Items |
| Testing Conditions | unit | Method | Index | Result |
Appearance |
| / |
| Visual | OK | OK |
Mechanical properties | impact strength | J23ºC | J/M | ASTMD256 | 35 | 48 |
Tensile strength | 10mm/min | Mpa | ASTMD638 | be equal or greater than 70 | 83 |
Ultimate Elongation | 10mm/min | % | ASTMD638 | be equal or greater than 30 | 85 |
Flexural Strength | 2mm/min | Mpa | ASTMD790 | be equal or greater than 90 | 104 |
Flexural Modulus | 2mm/min | Mpa | ASTMD790 | be equal or greater than 2100 | 2538 |
Thermal Properties | Heat de-flection temperature | mpa ºC/H | ºC | ASTMD648 | / | / |
Glow wire | mm | ºC | IEC60695-2-13 | / | / |
Electrical Properties | tracking | V | V | IEC60112 | / | / |
Flammability class | 23ºC mm | / | UL-94 | / | / |
Physical Properties | Shrinkage | 23ºC | % | ASTMD955 | length-Width | / |
specific gravity | 23ºC | g/cm3 | ASTMD792 | 1.15±0.02 | 1.135 |
Residual rate | ºC | % | / | / | / |
Machinability | MFI |
| 275ºC/2.165kg | g/10mm | ASTMD1238 | 15--40 | 29.3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
If you can't find the exact product you need in the pictures,please don't go away.Just contact me freely or send your sample and drawing to us.We will reply you as soon as possible.
STAR Electronic started its business as various of connectors, like PCB connectors, auto connectors and so on. Throughout the years we are developing to not only connector supplier but also one wire harness/cable assembly manufacturer for home appliance and automotive market, one comprehensive connection solution supplier for our old and new customers. With years of experience in this field, we have been successfully expanded with one network with components and assembly facilities which enable us to control all cost under reasonable range and meet various lead time requirement.
Nowadays, STAR Electronic is a leading enterprise offering full range of connectors and wire harness to South& North America, European and Asia countries, our customers in auto field are from not only aftermarket but OEM car factories. We insist that quality is the existence and service is the basic for one company. Once you offer a chance to STAR, STAR will reward what more than you expect. We are welcome any of your inquiries or face to fact talking and visiting.
