Product Specifications
Prod Model: |
P150-250-F Series |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
199*110*50mm |
Working Temp.: |
-10-+50 Degree |
Warranty: |
>2 Years |
Input Voltage: |
220V |
Connection Mode: |
Series Switching Power Supply |
Starting Mode: |
Separate-excited Switching Power Supply |
Voltage Regulating Mode: |
Width Modulation Type |
Power Supplying System: |
Level 1 Power Distribution Equipment |
Certification: |
ISO |
Output Type: |
Single / Dual / Triple/Quad |
Output Power: |
150-250W |
Energy Transmission: |
Single / Dual / Triple/Quad |
Brand: |
Pengtu |
Product Description

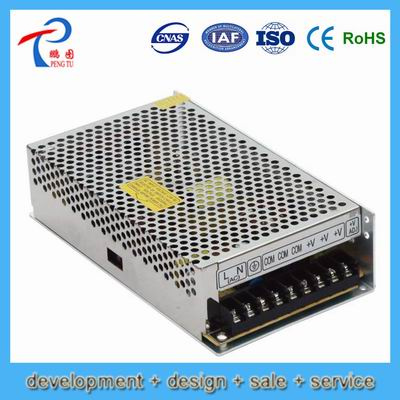

P150-250-F Series150-250W AC DC Various Voltage 3.3V 5V 12V 24V 48V power transformer
Features:
Short circuit protection / overload protection / over voltage protection / optional over temperature protection
With reference to the international safety certification: UL/TUV/CB/CE
The natural cold
100% full load burn-in test
Three years warranty
Input Characteristic:
Range of voltage................176 - 264VAC/85 - 264VAC/210 - 370VDC
Frequency.............................47~63Hz
Surge current........................230VAC 40A, cold start
Leakage current....................<0.5mA/240VAC
Output Characteristic:
Rated power.............................150W-250W
Voltage ADJ. range..................±10%
Linear adjustment rate............<0.5%
Start time.....................................<=50ms/230VAC(Full load)
Hold time......................................<=20ms/230VAC(Full load)
General Characteristic:
Overload protection...................The rated load of 105%-135% shutdown / self recovery
Over voltage protection..............Rated output voltage of 110%-145% shutdown / self recovery
Insulation characteristics..........I/P-O/P:1.5min, I/P-FG:1.5kvac1min,O/P:0.5kvac 1min
Seismic motion............................10-500Hz,5G 10min/cycle,XYZ axis every 60 minutes
Safety certification.........................According to UL60950-1,TUV EN60950-1 certification
EMC standard................................According to EN55022(CISPR22) class B,according to
Anti-interference EN-61000-4-2,3,4,5,6,8,11
Working temperature....................-10ºC-+50ºC;20%-90%RH (without dew)
Storage temperature.....................-20ºC- +85ºC
Shell size.........................................199*110*50mm
Mechanical drawing and pin definition
Company information
Our service
1.Your inquiry will be reply within 24hours
2.Well-trained and experienced staffs to answer all your inquiries in English
3.We have strictly management on the production and quality control
4.We have our own factory and professional engineers team to help you to resolve the prombles
5.We are greatly to accept the sample order for testing our quality ,serive and your market.
Warranty term
1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free new products or components based on the proof-documents.
2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instruction, we will provide paid service.
If you want to know more information ,pls feel free to contact us. Any feedback from you will be given the prompt attention and reply!
P150-250-F Series Normal Models (Custom-made specifications are also acceptable)
Model | Output Lines | Power (W) | Output V.(V) | Output Curr.(A) | Ripple (mv) | Efficieency (%) |
P150S05-F | Single | 150 | 5 | 30 | 100 | 79 |
P150S7.5-F | 7.5 | 20 | 100 | 80 |
P150S09-F | 9 | 17 | 100 | 82 |
P150S12-F | 12 | 12.5 | 120 | 82 |
P150S24-F | 24 | 6.5 | 200 | 84 |
P150S36-F | 36 | 4.2 | 200 | 85 |
P150S48-F | 48 | 3.1 | 250 | 85 |
P150D-A-F (5V/12V) | Dual | 5 | 2 ~ 18 | 100 | 75 |
12 | 0.02 ~ 5 | 120 |
P150D-B-F (5V/24V) | 5 | 2 ~ 18 | 100 | 76 |
24 | 0.02 ~ 3 | 200 |
P150D-C-F (15V/15V) | 15 | 1 ~ 8 | 150 | 77 |
15 | 0.02 ~ 4 | 150 |
P150D-D-F (24V/12V) | 24 | 0.5 ~ 5 | 200 | 79 |
12 | 0.02 ~ 4 | 120 |
P150T-A-F (24V/12V/5V) | Triple | 24 | 1 ~ 5 | 200 | 79 |
12 | 0.02 ~ 2.5 | 120 |
5 | 0.02 ~ 2 | 100 |
P150T-B-F (24V/12V/-12V) | 24 | 1 ~ 5 | 1200 | 80 |
12 | 0.02 ~ 2.5 | 120 |
-12 | 0.02 ~ 1.5 | 120 |
P150Q-A-F (5V/12V/24V) | Quad | 5 | 1.6 ~ 8 | 100 | 82 |
12 | 0.02 ~ 2 | 120 |
24 | 0.02 ~ 2 | 200 |
-12 | 0.02 ~ 2 | 120 |
P150Q-B-F (5V/15V/24V/-15V) | 5 | 1.2 ~ 6 | 100 | 83 |
15 | 0.02 ~ 3 | 150 |
24 | 0.02 ~ 2 | 200 |
-15 | 0.02 ~ 2 | 150 |
P200S05-F | Single | 200 | 5 | 40 | 100 | 80 |
P200S7.5-F | 7.5 | 26.5 | 100 | 82 |
P200S09-F | 9 | 22 | 100 | 82 |
P200S12-F | 12 | 16.7 | 120 | 84 |
P200S24-F | 24 | 8.3 | 200 | 84 |
P200S36-F | 36 | 5.5 | 200 | 85 |
P200S48-F | 48 | 4.2 | 250 | 87 |
P200D-A-F (24V/5V) | Dual | 24 | 0.8 ~ 8 | 200 | 82 |
5 | 0.02 ~ 3 | 100 |
P200D-B-F (24V/12V) | 24 | 0.8 ~ 8 | 200 | 82 |
12 | 0.02 ~ 3 | 120 |
P250S7.5-F | Single | 250 | 7.5 | 30 | 100 | 81 |
P250S09-F | 9 | 25 | 100 | 82 |
P250S12-F | 12 | 20 | 150 | 83 |
P250S24-F | 24 | 10 | 200 | 83 |
P250S48-F | 48 | 5 | 250 | 87 |
