China Famous Construction Machinery Red Clay Automatic Block Machine

Product Specifications

Prod Model:	clay brick machine
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Condition:	Brand New
Raw Material:	Clay/Soil/Earth
Method:	Vacuum Extruder
Capacity:	16000-22000/H
Dimension(L*W*H):	4450*1750*1900mm, 4450*1750*1900mm
After-Sales Service:	Engineers Available to Service Machinery Overseas
Warranty:	2 Years
Power:	220/90kw
Spindle Speed:	45 R/Min
Place Of Origin:	Shandong, China (Mainland)
Certification:	GB/T
Type:	Vacuum Extruder

Product Description

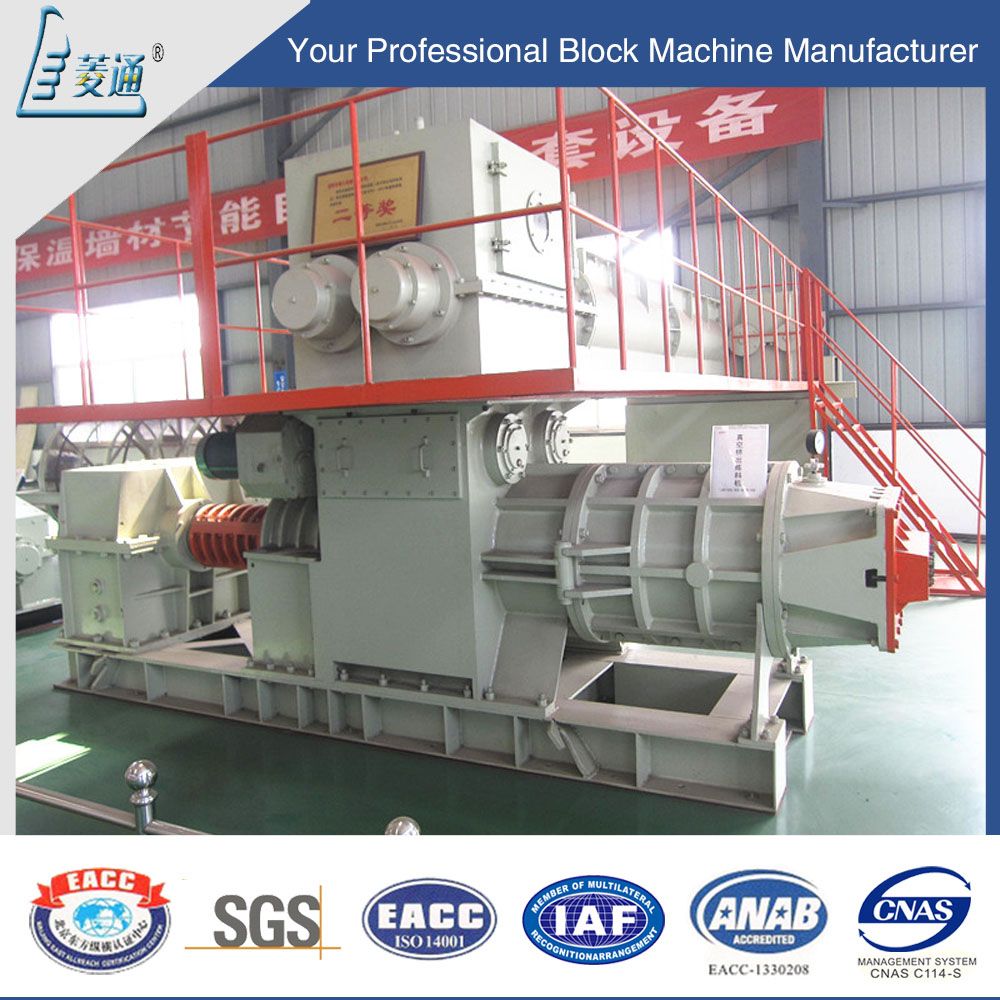

China famous Construction Machinery Red Clay Automatic Block Machine

Introduction about company:
Lingtong Heavy Industry has built a "National Key Laboratory for New Wall Material Technology and Production Equipment", We are manufacturer of brick making machine in China for 20 years, professional manufacture many types of brick making machine.We are honored as a "Provincial Technology Innovation Enterprise", "Contract-honoring and Promise-keeping Enterprise" and "Enterprise of AAA Credit Rating".Lingtong brand is a "Shandong Famous Brand" and "Top Ten Famous Brand in China Brick Market", and was awarded the "Gold Award by China Construction Machinery Expo" and other special awards.

Introduction about machine:

This machine has a compact structure. It is convenient to assemble and disassemble main bearing seats. The wearing parts adopt wear-resistant material and the extrusion part uses variable cylinder bore and variable pitch. This machinefeatures a large extrusion pressure, a high degree of vacuum, a large installed capacity and significant dynamic efficiency and energy-saving effect.

Advantages:
1. All steel structural design: Hopper, vacuum chamber, reducer, etc.; blanking via CNC cutting machine; gas shielded welding and annealing treatment making the whole machine's rigidity greatly increased.
2. According to the brick machine's features of heavy load and low rotary speed, the upper and the lower stages adopt double circle-arc teeth and special transmission case with a middle-hard tooth surface; the big gearwheel adopts thermal refining; and center shaft gear adoptshigh frequency quenching and gear grinding treatment, which improves the gear's
durability and carrying capacity and makes transmission more stable.
3. Special upper transmission case installs the counter-gear hobbings into a case and boasts a more compact structure and more sufficient lubrication. A clamping coupling is used to connect the right and left upper shafts, making overhaul and maintenance more convenient without opening the case.
4. A three-stage four-shaft special reducing transmission case is adopted; the speed reducing ratio is more suitable for brick extruders. This machine with a slow speed of revolution is more labor-saving. Four-stage motor is designed to use, saving about 30% motor costs for users.
5. Unique main bearing seat design makes the brick machine's recoil load bearing distribution more scientific and the brick machine bear greater pressure. An open-close type of bearing seat makes the maintenance of main bearing seat more convenient. And the use of variable cylinder bore and variable spiral screw pitch can obtain increased extrusion force, making adobe effect better.
6. High-chromium alloy wear-resistant screw is used. The upper adopts a wear-resisting mixing blade structure. Both the screw and mixing blade can be interchanged with the welded mixing blade and welded screw. Service life is greatly prolonged; maintenance personnel's labor strength is also reduced; and over 20% maintenance costs are saved.
Inspection Certificate:
ISO 14001:2004,  ISO 9001:2008,  GB/T 28001-2001,
Chinese Famous Trademark,
Shandong Famous Brand,
12 technology patents.

Technical Parameters :

Specification	Productivity (Standard Brick PCS/h)	Extraction Pressure (MPa)	Vacuum Degree (%)	(kw) Motor Power	Mixing blade diameter
JKY60/55-4.0	16000-22000	4.0	≤-0.09	220/90	600
JKY75/65-4.0	20000-26000	4.0	≤-0.09	280/132	750
JKB55/50-4.0	15000-17000	4.0	≤-0.09	200/90	550
JKB50/45	13000-15000	3.0	≤-0.09	160~132/90~75	500
JKB45/40-3.0	11000-13000	3.0	≤-0.09	110/55	450
JKB40/40-2.0	7000-9000	2.0	≤-0.09	90	400

Producing Process:

1.Brick raw materials should be prepared.Such as clay, fly ash, coal gangue, shale and so on.

2.Brick factory should be built.The yard of brick plant should be in agreement with the productivity of bricks.Red clay bricks making machine

3.The size of bricks should be in agreement with the local standard.

4.The model of bricks should be choosed, solid brick or hollow brick, If is hollow brick, how many holes on the brick.Red clay bricks making machine

5.The kiln for drying and firing bricks should be arranged, the tunnel kiln, annular kiln with dry hole or annular kiln.Red clay bricks making machine
