Product Specifications
| Prod Model: |
various |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Ore Dressing Production Line |
| Certificate: |
ISO9001,ISO14000 |
| Model: |
Zk Various |
| Advantage: |
Professional Manufacture |
| Maintenance: |
See Instructions |
| Warranty: |
1 Year |
| Company Established: |
1956 |
| Experience: |
More Than 50 Years |
| Installation: |
Under Our Engineer's Guide |
| After Sale Service: |
We Offer |
| Type: |
Flotation Separator |
| Color: |
Multi Color |
| Certification: |
CE |
| Customized: |
Customized |
| Condition: |
New |
Product Description
Product Introduction

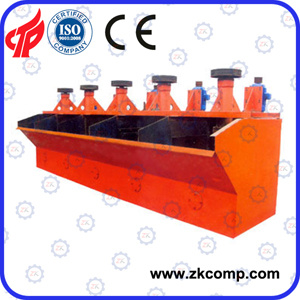

Flotation Equipment: BF Mechanical Agitating Flotation Machine With Auto Air Suction is composed of the closed double frustum, may produce the strong slurry. Its characteristic: 1). Big suction intensity, low power consumption. 2). Each trough has the air suction, slurry suction and the flotation process return route, does not need any supporting facility, the level disposition is advantageous for the flow change. 3) The slurry circulation is reasonable, can maximum limit reduce the coarse sand precipitation. 4). It is equipped with the slurry surface automatic control and the electrically controlled installment, the adjustment is convenient.
Working principle:
Flotation Equipment: BF Mechanical Agitating Flotation Machine With Auto Air Suction is composed of the closed double frustum, may produce the strong slurry. Mechanical Agitating Flotation Machine With Auto Air Suction adopts advanced structure front-tripping tank, double impeller water wheels. It is equipped with nozzle and false bottom device. The slurry flows as fixed direction for the up and down double circulation, which is useful for coarse suspension, auto air suction, slurry suction and without using foam pump.
Company Name: Henan Zhengzhou Mining Machinery Co., Ltd.
Official Website: http://www.inczk.com/ & http://www.zkcomp.com/
24-hour Free Sales Consulting Phone: 861-0371 -5590 2866.
Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province
Please pay attention to the company's other products:
Price of rotary kiln: http://www.zkcomp.com/calcining/558. Html
Rotary Kiln: http://www.inczk.com/Products/459. Html
Preheater: http://www.zkcomp.com/calcining/605. Html
Cement Mill: http://www.inczk.com/Products/460. Html
Rotary Dryer: http://www.zkcomp.com/calcining/564. Html
Raw Mill: http://www.inczk.com/Products/1373. Html
Ball Mill: http://www.zkcomp.com/grinding/582. Html
|
Model |
Volume |
Cell size |
Impeller |
Capacity |
Power |
|
(m3) |
(mm) |
Dia.(mm) |
(m3/min) |
(kw) |
|
BF-0.37 |
0.37 |
740x740x750 |
286 |
0.2-0.4 |
1.5/1.1 |
|
-0.65 |
0.65 |
850x950x900 |
300 |
0.3-0.7 |
3/1.1 |
|
BF-1.2 |
1.2 |
1050x1150x1100 |
450 |
0.6-1.2 |
5.5/1.1 |
|
BF-2.0 |
2 |
1400x1450x1120 |
500 |
1-2 |
7.5/1.1 |
|
BF-2.8 |
2.8 |
1650x1650x1150 |
550 |
1.4-3 |
11/1.5 |
|
BF-4 |
4 |
1900x2000x1200 |
650 |
2-4 |
15/1.5 |
|
BF-6 |
6 |
2200x2350x1300 |
700 |
3-6 |
18.5/1.5 |
|
BF-8 |
8 |
2250x2850x1400 |
760 |
4-8 |
30/1.5 |
|
BF-10 |
10 |
2250x2850x1700 |
760 |
5-10 |
30/1.5 |
|
BF-16 |
16 |
2850x3800x1700 |
850 |
8-16 |
37/1.5 |
|
BF-20 |
20 |
2850x3800x2000 |
850 |
10-20 |
37/1.5 |
|
BF-24 |
24 |
3150x4150x2000 |
920 |
12-24 |
45/1.5 |
