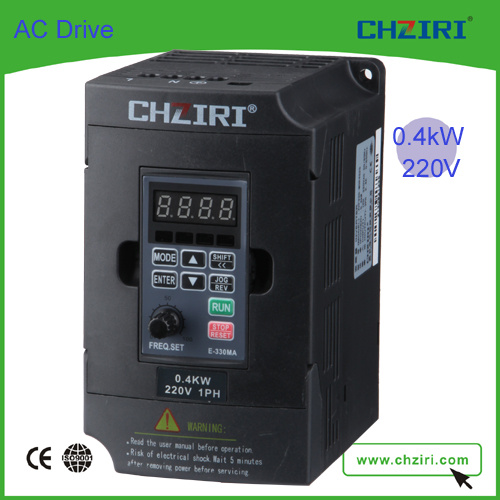

Chziri AC Drive 1HP 220V
| Price: |
US $ 88/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
4/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Product Specifications
| Prod Model: |
ZVF330-M0R4S2MD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Volage: |
220V AC |
| Power: |
0.4kw, 0.75kw, 1.5kw, 2.2kw |
| Output Current: |
2.3A 4.5A, 7.5A, 10.0A |
| Range Of Output Frequency: |
0.01~600Hz |
| Cooling Mode: |
Forced Air Cooling |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Application: |
High-performance Transducer |
| Main Circuit Type: |
Voltage |
| Switch Mode: |
PWM Control |
| Brand: |
Chziri |
Product Description
Product DescriptionZVF330 Series Mini Type AC Drive ZVF330 Series Mini Type AC Drive are developed for general applications of small power and OEM market. It applies V/f control technology, making the functions of PID, multiple-speed step, DC braking, Modbus communication, as well as less installation space .ZVF330 Series AC drive is for small automation equipment of economical type, especially suitable for electronic equipment, food packaging, wood, glass and other small power transmission. Main Features of AC drive ZVF330 Series mini type AC Drive are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors . - Output frequency :0-600Hz.
- Multiple password protection mode
- Remote control operation keypad, convenient for remote control.
- V/F curve &multi-inflection point setting, flexible configuration .
- Keyboard parameter copy function . easy to set the parameters for multi-inverters .
- Wide industry application . to expand special function according to different industries.
- Multiple hardware and software protection and optimized hardware for anti-interference technology.
- Multi-step speed and wobble frequency running (external terminal 15 steps speed control).
- Unique adaptive control technology . Auto current limiting and voltage limiting and under-voltage restrain .
- Optimized external installation and internal structure and independent air flue design , fully enclosed electrical space design .
- Output automatic voltage regulation function .(AVR),automatically adjust the output pulse width . to eliminate the influence of the grid change on load .
- Built-in PID regulation function to facilitate the realization of closed loop control of the temperature ,pressure and flow . and reduce the cost of the control system .
- Standard MODBUS communication protocol . easy to achieve the communication between PLC,IPC and other industrial equipments.
Guide Model for AC drive
| Inverter Model | Voltage | Power | Current | Dimension (mm) | Packing Size(mm) | G.W.(kg) |
| (V) | (KW) | ( A) | H | H1 | W | W1 | D | d |
| ZVF330-M0R4S2MD | 220V | 0.4 | 2.4 | 141.5 | 130.5 | 85 | 74 | 125 | 5 | 570*380*460mm/16PCS | 25kg |
| ZVF330-M0R7S2MD | 0.75 | 4 | 141.5 | 130.5 | 85 | 74 | 125 | 5 |
| ZVF330-M1R5S2SD | 1.5 | 7.5 | 151 | 140 | 100 | 89.5 | 128.5 | 5 |
| ZVF330-M2R2S2SD | 2.2 | 10 | 151 | 140 | 100 | 89.5 | 128.5 | 5 |
| ZVF330-M0R7T4SD | 380V | 0.75 | 2.3 | 151 | 140 | 100 | 89.5 | 128.5 | 5 | 570*380*460mm/16PCS | 25kg |
| ZVF330-M1R5T4SD | 1.5 | 3.7 | 151 | 140 | 100 | 89.5 | 128.5 | 5 |
| ZVF330-M2R2T4SD | 2.2 | 5 | 151 | 140 | 100 | 89.5 | 128.5 | 5 |
Inverter's Standard Wiring Diagram
ZVF330 AC Drive Application RangePacking machine; dumpling machine; treadmill; temperature/humidity control fan for agriculture and aquaculture; mixer for food processing; grinding machine; drilling machine; small size hydraulic lathe; elevator; coating equipment; small size milling machine; robot arm of injection machine (clamp); wood machine (two-side woodworking planer); edge bending machine. etc.
Why you choose the products from CHZIRI Electrical ?
- low voltage frequency inverter and soft starter manufacturer and exporter .
- More than 10 years experience and professional devoting the automation control system . we want to be the best to serve our clients.
- CHZIRI frequency inverter and soft starters are certificated with CE. CHZIRI Electrical passed ISO9001:2008 quality control system.
- Key parts inside the CHZIRI Frequency Inverter are imported .We use Infenion IGBT ,Fans are from Germany company ,Capacitors are imported from Japan .
- CHZIRI frequency inverters and soft starters are easy and convenient to operate .
- CHZIRI frequency inverter have built-in RS485 Port .and support Modbus communication protocol.
- CHZIRI Frequency Inverters and Soft starters are selling to all over the world . CHZIRI Products earn good reputation and sell well in the market .
- CHZIRI Electrical can offer the optional parts for frequency inverter .Such as braking unit .braking resistors .EMI Filter .Reactor .Choke and remote control cables.
- CHZIRI Electrical can also provide clients with customized control panel .Such as frequency inverter switchgear and soft starters cabinets.
- CHZIRI Electrical located in Liushi,Wenzhou -Capital city of low voltage electrical appliances in China . you can buy different kind of electrical products from our city . Such as breakers ,contactors .relays .fuses . indicators. Pushbutton and so on .
- CHZIRI Electrical are near to NINGBO ,SHANGHAI port .The shipping cost will be cheaper .
- OEM service can be offered .
- Prompt delivery :5-12 days after receipt your money.
- Warranty time :12 ~16 months .
.
ZIRI Electrical Technology Co. Ltd. Is engaged in R&D, manufacture, sale. Distribution and service of electric drive and control products. Professional and experience supplier of automation solution for multiple field. It is a Hi-Tech enterprise conveniently located the golden area of Liushi, Wenzhou, which is the capital city of electrical appliance in China.
The main products includes general -purpose inverters, special -purpose inverters for pump and fan, soft starter, breaking unit and other inverter accessories which has characteristic of advanced technology, complete function, stable running, simple operation, fine energy saving and excellent performance and so on. The products are widely applied to the various industries, metallurgy, plastic, textile, food, papermaking. Drugs manufacture, printing, construction material, , cement, oil, chemical industry mining. Transmission device ect.
At present, ZIRI Electrical has become the top professional manufacturer that devotes to researching, developing, producing and marketing frequency inverter and soft starters in China. Thanks to the good quality, we respectively obtained ISO9001, CE, CCC and other certificates. ZIRI Electrical set up branch offices in more than 30 cities and established a perfect, professional and efficient sale-and-service system. At the same time, ZIRI Electrical also working up international sales net. Our products have been exported in large quantity to Europe, South America, Southeast Asia, Middle East, Africa and so on. Which earn good reputation and high praise in the market.
We adhere to the eximious tradition of technical innovation, continue to introduce new generation products to meet market demands. Make great strides forward gradually to high-end application domain, and strive to shoulder heavy responsibilities to create a full of hope for the future.
