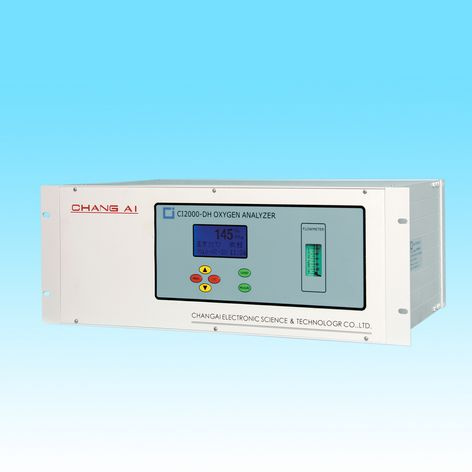

CI2000-DH process trace oxygen analyzer is the online intelligent measurement instrument, which adopting conversion ion current measurement principle with single chip technology.
Features
New pattern, long-life, conversion ion current tester with high sensitivity and fast response
High precision, automatic temperature compensation, eliminating the impact of environmental temperature
Concise menu, simple operation
Checking the sensor working state automatically and unique double-line working change mode extending the sensor's life.
Setting upper and lower alarm values freely during the measure ranges
It can achieve two-way communication by connected to a computer via the standard RS232 or RS485 interface.
Technical Specifications
Measure Range: 0-10ppm, 0-100ppm, 0-1000ppm O2
Accuracy: ≤ ± 2% in FS range
Display Resolution: 0.01ppm
Stability: Zero drift ≤ 0.5% of FS/7d
Span drift ≤ 0.5% of FS/7d
Repeatability: ≤ ± 0.5%
Preheating Time: 99s
Sample Gas Flow: 150~300ml/MIM
Response Time: 90% of FS reading ≤ 15 seconds
Power Supply: 220± 10% VAC, 50/60Hz, power loss≤ 10VA
Ambient Temp.: -20º C~+60º C
Signal Output: 4-20mA (allowable load resistance 250 Ω )
Contact Capacity: 125VAC 0.3A, 110VDC 0.3A, 30VDC 1A
Sensor Life: 36 months at 25 and 1 ATM
Warranty: 12 months analyzer; 12 months sensor
Appearance Dimension: 482.5mmx177mmx300mm (WxHxD)
Opening Size: 178mmx469mm
Weight: 4kg
Applications
It can be used to measure the oxygen concentration in purity nitrogen production, metallurgy, health, petrochemicals, and power electronics industries.
Order knowledge
Measure range
Tested gas pressure
Gas composition and impurity.
