Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Clean Type: |
Clean-in-Place (Cip) |
| Cleaning Process: |
Hot Water Cleaning |
| Construction Material: |
SUS3014,SUS316L |
| Processing Procedure: |
Alkali Cleaning,Acid Cleaning,Hot Water Cleaning |
Product Description

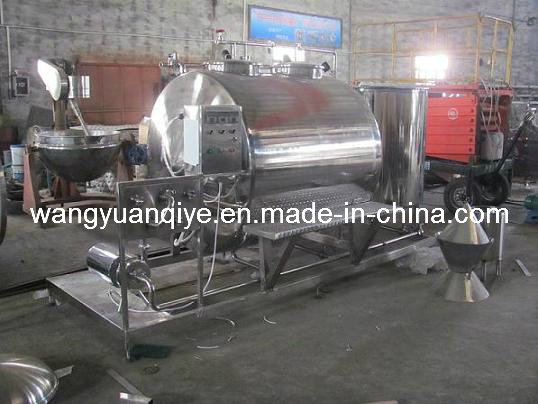

Cip Cleaning System (Separate Type)
CIP cleaning system can not only clean machine, but also control the cleaning of microorganism method.
The CIP cleaning system has the following advantage:
1, make the production plan rationalize and the exaltation produce an ability.
2, can not only reach a good cleaning performance, but also can raise the quality of product.
3, can prevent cleaning homework from dangerous, economical labor force.
4, can save the steam, water and production cost.
5, can increase the usage time of the machine you want to clean and maintain.
6, This CIP cleaning system is detachable and movable.
CIP system is full-automatic self case unit, containing a water tank, an acid tank, a lye tank, some necessary pumps, valves and a set of monitor devices, such as temperature sensor, density sensor and liquid level sensor and so on. Technical not only supply customers a standard CIP unit, but aso manufacture a special CIP system following your special requirement.
CIP unit contains self-automatic control program, including completed cleaning process. The program includes all-process cleaning program, acid cleaning program and lye cleaning program. Both of the cleaning water and the dissolvent is acceptable for CIP system. The temperature and the desity of the cleaning water can be enacted and controlled accurately. What is more, the density of the cleaning solution can be mixed automatically.
Full-automatic control to provide safety operating interface.
Full-automatic add acid/alkali depending on the density monitor, which self control the density of the dissolvent. So that it can reduce the demand of human resource, and make sure the safety of the human.
Adopt the tubular heat exchanger, bear high pressure resistance, no block, and few maintaince fee.
Optimized CIP cleaning function can reduce the times of CIP cleaning.
Reserved interface can be easily connected with the existing equipment.
Wenzhou wanyuan food machinery factory— — CIP cleaning system
The below is CIP cleaning system specification:
| Tank size | 1000L-10000L |
| CIP tank type | Alcali tankacid tankhot waterclean water tankwater recycle tank |
| Cleaning recycles | Single circuitdouble circuitsthree circuitsfour circuits |
| Heating method | Coil pipes insideplate tubular |
| Automatic types and charastics | Full Automatic | 1. flow rate auto control;
2. temperature auto control;
3. auto compensate the cip liquid level;
4. auto compensate the liquid concentrate;
5. cleaning liquids auto transfer;
6. auto alarm |
Semi-auto control | 1. temperature auto control
2. electrical control with manual operate the other matters. |
Manual operation | 1. manual operate on the cleaning process |
Our factory specializes in producing and selling processing equipment for dairy products, beverage, brewage, meat and poultry. Our main products include automatic double-tank sterilizing boilers, electric heating sterilizing boilers, emulsifying tanks, sugar dissolving tanks, cooling and heating cylinders, concentrating boilers, seed tanks, jacketed boilers, and direct cooling tanks.
Other food equipment can also be designed and manufactured according to customer requirements. The latest digital technology has been utilized for direct conversational programming and key parts have been carried out in mechanical machining, such as drilling, cutting, milling and grinding to ensure the ultimate precision. We have powerful technical force to independently and successfully design and manufacture products, completely realizing the simple and programmable operations of consistent products. We have some experienced experts and they can provide whole services for you from initial preparation, detailed construction and after-sales technique to spare part support.
At the same time, we combine our many years' experience to meet customer requirements and solve the difficulties of equipment technology. All our stainless steel equipment have reached sanitary equipment standard, which guarantees users with completely sanitary status through our abundant strength and a good reputation. We offer customers safe and reliable products and favorable prices.
