| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T |
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
|---|---|
| LED Thickness: | 20um |

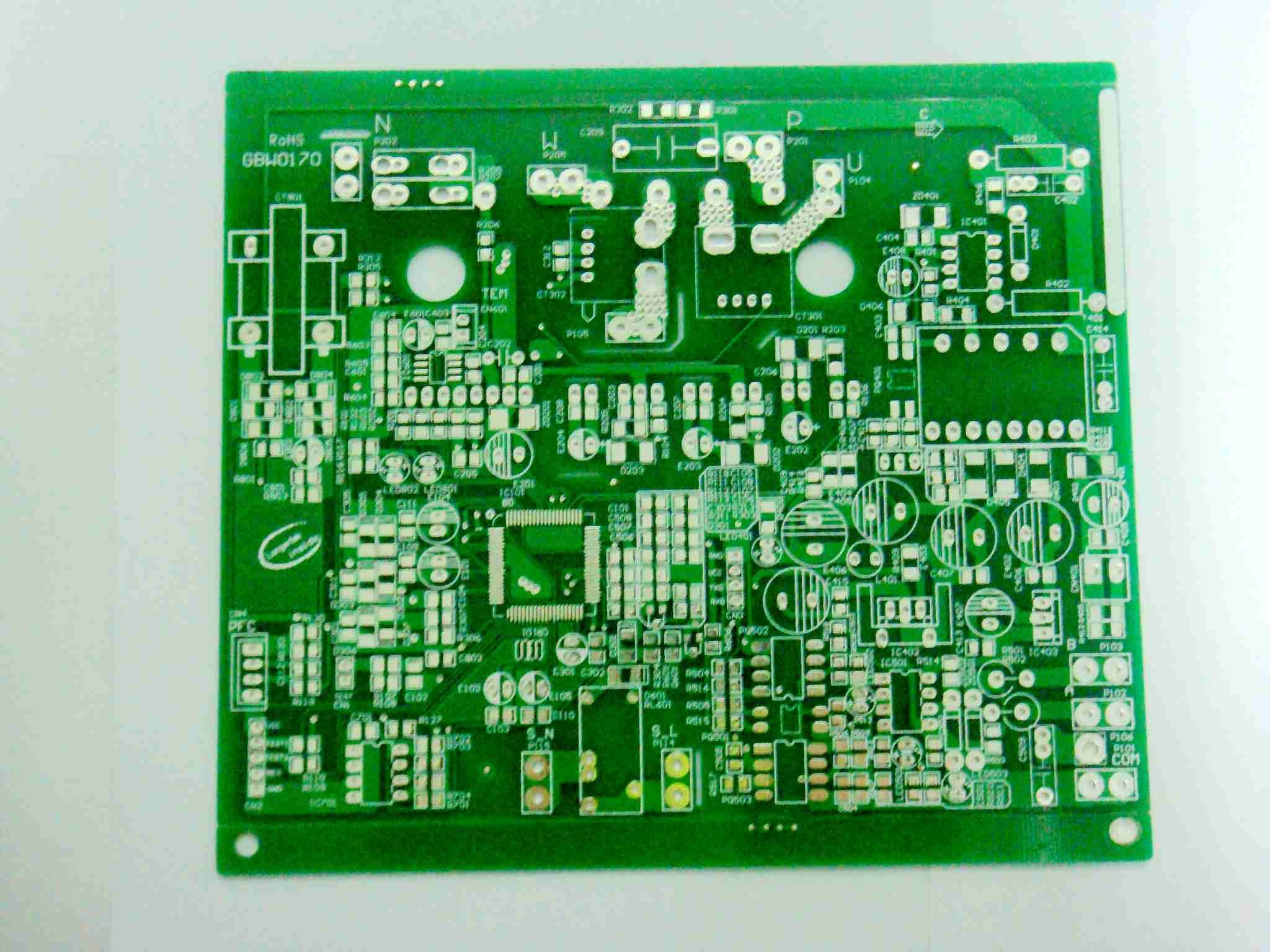

| Type: | Rigid Circuit Board |
| Dielectric: | FR-4 |
| Material: | Fiberglass Epoxy |
| Flame Retardant Properties: | V0 |
| Global Prospect Scien-Tech Inc. (Zhejiang) | |||
| MANUFACTURING CAPABILITY | ITEMS | PARAMETER | |
| Mechanical | 1 | Material | FR-4, CEM-1, CEM-3, Aluminium Based, Halogen Free, Thick Copper |
| 2 | Layers | 1, 2 (Mainly) | |
| 3 | Board Thickness & Copper Thickness | 0.8mm,1.0mm,1.2mm, 1.6mm, 2.0mm H/HOZ, 1/1OZ, 2/2OZ | |
| 4 | Min PTH Size | 0.25mm±0.075mm | |
| 5 | Min NPTH Size | 0.2mm±0.05mm | |
| Artwork | 1 | Min Conductor Width | 0.1mm/4mil |
| 2 | Min Conductor Space | 0.1mm/4mil | |
| 3 | Min Pad Size | 0.1mm/4mil | |
| 4 | Hole Copper Thickness | ≥20um | |
| 5 | Profile | Routing, Punching, V-Cut,Chamfer | |
| 6 | Chamfer Angle | 30 45 60 | |
| 7 | Warp & Wrist | ≤0.7% | |
| Soldering mask | 1 | Availbal Colors | Green, Blue, Red, White, Black |
| 2 | Peelable Solder Mask | Yes | |
| 3 | Thickness | ≥10um | |
| Silkscreen | 1 | Availbal Colors | Green, Blue, Red, White, Black |
| 2 | Min Silkscreen Line Width | 0.15mm | |
| Finishing | 1 | HASL | 1um-40um |
| 2 | Lead-free HASL | 1um-40um | |
| 3 | Immersion gold over nickel | Ni: 150um-300um Au: 1u" -3u" | |
| 4 | Hard Gold Plating | Ni: 150um-300um Au: 0.5um-3um | |
| 5 | OSP | 0.2um-0.5um | |
| 6 | Carbon Ink Printing | ||
| 7 | Golder Finger | ||
| Tolerence | 1 | Outline Tolerance | ±0.1mm -- ±0.125mm |
| 2 | Hole Diameter Tolerance | PTH:±0.075mm NPTH: ±0.05mm | |
| 3 | Hole Location Tolerance | ±0.1mm | |
