Circuit Board
| Price: |
US $ 5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Product Specifications
| Prod Model: |
KEYOU006 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Base Material: |
Fr4 |
| Brand: |
Keyou |
Product Description

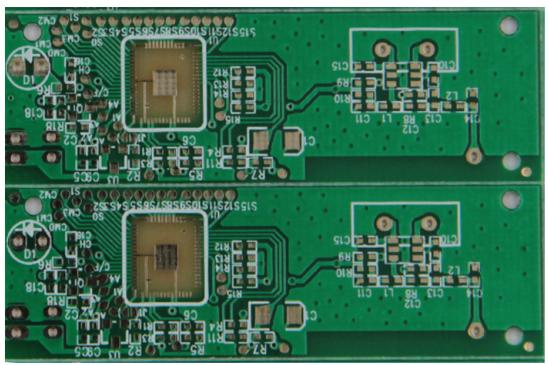

Circuit Board
Layers: 4L
Material: fr4
TG: TG130
Board thickness: 1.6mm
Copper thickness: 1OZ
Solder mask color: green
Silk screen color: white
Finish: lead free HASL
Min hole: 0.25mm
Min line width/space: 0.25/0.25mm
Min PTH copper thickness: 20um
Criteria: SGS UL ISO9001
Production Capability for PCB:
| No | Item | Data |
| 1 | Layer: | 1 to 24 layers |
| 2 | Material type: | FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers |
| 3 | Board thickness: | 0.20mm to 3.4mm |
| 4 | Copper thickness: | 0.5 OZ to 4 OZ |
| 5 | Copper thickness in hole: | >25.0 um (>1mil) |
| 6 | Max. Board Size: | (580mm×1200mm) |
| 7 | Min. Drilled Hole Size: | 4mil(0.1mm) |
| 8 | Min. Line Width: | 3mil (0.075mm) |
| 9 | Min. Line Spacing: | 3mil (0.075mm) |
| 10 | Surface finishing: | HASL / HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating |
| 11 | Solder Mask Color: | Green/Yellow/Black/White/Red/Blue |
| 12 | Shape tolerance: | ±0.13 |
| 13 | Hole tolerance: | PTH: ±0.076 NPTH: ±0.05 |
| 14 | Package: | Inner packing: Vacuum packing / Plastic bag,Outer packing: Standard carton packing |
| 15 | Certificate: | UL,SGS,ISO 9001:2008 |
| 16 | Special requirements: | Buried and blind vias+controlled impedance +BGA |
| 17 | Profiling: | Punching, Routing, V-CUT, Beveling |
About UsFounded in 2003, KeYou PCB is a leading manufacturer specializing in Printed Circuit Board(PCB) to serving a wide variety of industrial with their needs.
With 5000 sqm area, advanced equipments and professional teams,KeYou can produce 8000 square meters per month, including single-sided, double-sided, multilayer PCB ( up to 24 layers), copper /aluminum based PCB, high frequency PCB and so on.
Choose Us
Our advantages: - Product's design: as per customer's drawing or sample.
- Production equipment: machining center, CNC engraving milling machine, CNC, lathe machine, milling machine, punching machine, CNC milling machines, centerless grinding, and many other precision equipment.
- QC system: 100% inspection before shipment.
- Packaging: vacuum bag, single polybag, bubble bags, wooden case or as requests.
Quality guarantee: - Our company with good quality and sincere services.
- The main materials we use are all high level in the domestic.
- We offer stable quality, preferential price, on-time delivery and refined services.
Founded in 1998, Shenzhen KeYou PCB Co., Ltd is a leading manufacturer of high-quality PCB products with manufacturing, research and development as well as corporate office and factory located in Shenzhen City, Guangdong Province, China. For 16 years, KeYou PCB Co., Ltd has achieved widespread recognition as a manufacturer in the PCB industry.
With a 5000 sqm factory, advanced equipment and professional team, KeYou PCB can produce 8000 sqm of PCB products every month, including single-sided PCB, double-sided PCB, multi-layered PCB( 1--26 layers), copper based PCB, aluminum based PCB, rigid PCB, high frequency PCB and so on.
As products, packaging, and technologies constantly change, high quality and consistent performance is essential. KeYou employees devote themselves to continuous improvement and exceptional product quality, The advanced equipments from Japan Hitachi, Europ Opel and Taiwan Universal: Drilling machines, etching machines, electroplating line, electricity milling machines, clean machines, flying probe machine, ect, help to control product manufacturing costs and improve overall quality. Besides, By manufacturing in compliance with ISO9002 standards, KeYou PCB can assure you the highest quality product and will guarantee the consistency of that quality.
Our products are applied in many different fields. They are used in Telecommunication (, PC, Converters, Telephone), Consumer Electronics (LED, LCD, LCM, Camera), Automotive Electronics(DVD, CD, Speaker, GPS), Industrial Electronics(Instruments), Mechanical Engineering and Medical Electronics.
KeYou office hosts a well trained staff of customer service, warranty and technical service representatives who respond quickly to any ordering or service issue in time.
