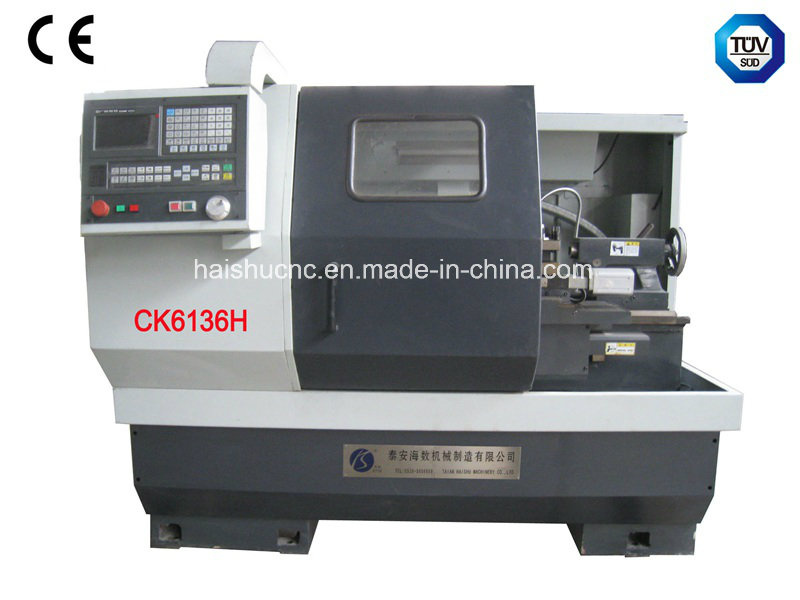

Ck6136h CNC Machine Tool
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P |
Product Specifications
| Prod Model: |
CK6136H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Newly Made: |
Quality |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Double-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
Product Description
Main features
CK6140T
1) Large spindle bore (φ70mm),
2) Large turning diameter (φ420mm),
3) High spindle speed (2800rpm),
4) Overall width casting bed foot, 30mm high gear waterside,
5) Double triangle rail,
6) Tailstock assembly double plate tight.
CK6136H
1) large turning diameter (φ400mm);
2) high spindle speed (3000rpm);| Item | Unit
| Detailed Specifications |
| CK6140T | CK6136H |
| Max. rotation diameter over bed | mm | φ420 | φ400 |
| Max. rotation diameter over pallet | mm | φ230 | φ210 |
| Max. workpiece length | mm | 750 |
| Bed foot structure | | Overall bed foot | Separate bed foot |
| Bed width | mm | 340 | 335 |
| Main transmission form | | Independent spindle |
| Spindle speed mode | | Frequency stepless speed |
| Spindle speed range | r/min | 200-3000 |
| Spindle head form | | 6-A2 |
| Spindle bore | mm | φ70 | φ58 |
| Spindle hole outside taper | | MT6 |
| Chuck diameter | mm | φ250 | φ200 |
| Main motor power | kw | 5.5 |
| Turret maximum stroke | mm | X:260 Z:760 |
| Fast-moving feed | mm/min | X:6000 Z:8000 |
| Repeat positioning accuracy | mm | X:0.01 Z:0.015 |
| Workpiece accuracy | | IT6-IT7 |
| Workpiece surface roughness | | Ra1.6 |
| Dia. of tailstock quill | mm | φ60 |
| Tailstock quill stroke | mm | 120 |
| Taper of tailstock quill | | MT4 |
| Repeat positioning accuracy | mm | 0.008 |
| Section of turning tool | mm | 25×25 | 20×20 |
| Size(L×W×H) | mm | 2400×1450×1650 | 2150×1450×1650 |
| Net weight | kg | 2000 | 1800 |
Taian Haishu Machinery Co., Ltd. is a professional production mechatronic product, collection development, manufacture, sales of high-tech enterprises. Company under the two divisions: One is the CNC machine tools division, the leading product is the "haishu" brand of CNC lathes and machining centers; One is the test equipment division, the leading product is "Taishanhaite" brand common rail test bench and injectoin pump, fuel injector test bench. Founded in March 2001, covers an area of 15000m2, building area of 8000m2, fixed assets 16 million yuan(RMB), has passedISO9001: 2008 international quality management system certification and European CE certification. The company has strong technical force, with a group of young and promising in the machine and test rig design and manufacture, electrical design and application of CNC technology and software development expertise and skills. Advanced 2D and 3D CAD, document management to achieve the PDM. Product innovation, Equipment CNC, Management information, Which has become the industry technology leader.
The company has a Ministry of Internal Trade and the Ministry of Foreign Trade, with independent import and export rights. The products are sold to more than 20 domestic provinces, cities and autonomous regions, and exported to 30 countries including: USA, Britain, Germany, Italy, Turkey, Greece, Sweden, Bulgaria, Romania, Denmark, Czechoslovakia, Lebanon, New Zealand, Australia, Peru, Ecuador, Colombia, Chile, Russia, Belarus, Lithuania, Bahrain, Korea, India, Indonesia, Malaysia, Iran, Thailand, Philippines, Mongolia.
Main products: 1. Horizontal flat bed CNC lathe, 2. Horizontal slant bed CNC lathe, 3. Vertical CNC lathe, 4. CNC turning center, 5. CNC pipe thread lathe, 6. CNC milling machine, 7. CNC machining center, 8. CNC grinding machine.
Characteristic services: Bear machining overall program design and implementation. Include: Site planning, equipment layout, tooling tool provide, processing program design, remote operation monitoring. Machine shop to achieve unmanned.
The company has many years of experience in development and manufacturing of CNC machine tools, "technology innovation, integrity service" as a business philosophy, with new and old customers at home and abroad in close cooperation and common development.
