Product Specifications
Prod Model: |
DL0086-03-B02 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Light Source: |
LED |
Shape: |
Round |
Certification: |
SGS |
Cover Material: |
Acrylic |
Base Material: |
Chrome |
Voltage: |
220V |
Beam Angle: |
40/100 Degree Beam Angle |
Product Description

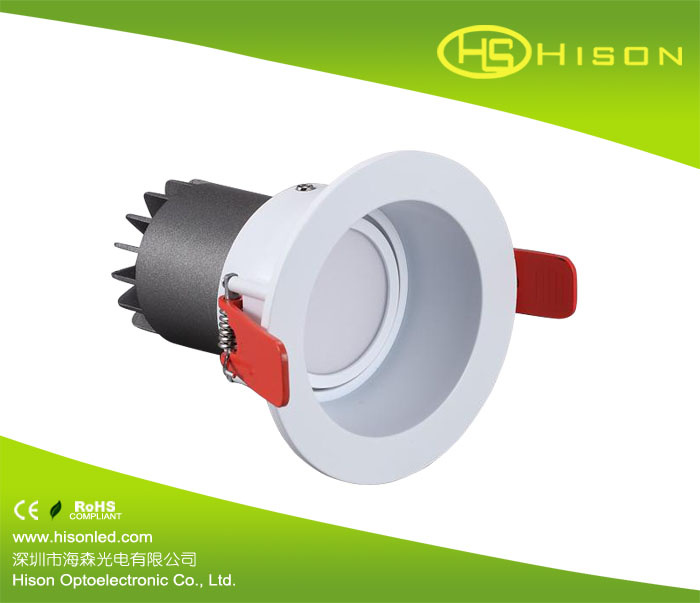

Clasical design warranty 3years LED ceiling light/LED down light
Feature of led ceiling light/led down light:
1. High quality, classical design led ceiling light, 6063T aluminium &high light transmittance Acrylic.
2. High grade handmade, white painting on the surface, black painting on the base,
2. Sharp COB LED chips, No shadow area when lighting up. No Dazzling.
3. Reliable external driver, adjustable ceiling light
4. Low electricity consumption. Save 70— 80% electric energy than conventional lamps.
Applicationof led ceiling light/led down light:
1. Home Lightng, office lighting, display case lighting
2. Under cabinet lighting
3. Art lighting
4. Boat lighting, accent lighting
Physical Details: |
|
Product Name |
LED ceiling light 8W/10W |
LED QTY |
SHARP COB LED Chips |
Materials |
die casting aluminium housing |
Product Size |
3 inches, Ø 90*H94 mm |
Inner package size (L/W/H) |
95mm*95mm*100mm |
Carton size (L/W/H) |
480x480x320 mm, 75set |
Cutout size |
Φ80mm |
Net weight |
≤90g |
IP Grade |
IP44 |
Installation way |
recessed |
Storage temperature |
-30°C~80°C |
Operating temperature |
-20°C~50°C |
Warranty |
3 years |
Approvals |
CE, RoHS |
|
|
Optical Details: |
|
Light source |
SHARP COB LED chips |
Emitting color |
Red, yellow, green, blue, white, warm white |
Max. lumens per lamp |
70 lm/watt (red) |
70 lm/watt (yellow) |
75 lm/watt (green) |
75 lm/watt (blue) |
90 lm/watt (white 6000-6500K) commercial white (4000-4500K) |
85 lm/watt (warm white 2500-2700K) |
Luminosity |
300 Lux (2m distance)-white |
Color temperature |
warm white 3000-3200K, daylight white 6000-6500K, Commercial white 4000-4500K |
Beam angle |
40/100° |
CRI |
80~85 Ra |
Lumen maintenance at 10,000hrs |
95% |
Average life time |
50,000hrs |
|
|
Electrical Details: |
|
Input Voltage |
AC 85-276V , 50Hz~60Hz |
Operating Constant current |
350mA with external driver |
Operating voltage |
20V-26V |
Max. power consumption |
8 watt |
Operating driver |
constant current 350mA |
Compatible with common anode RGB controller |
Available |
Dimmable |
LED Triac Dimmer |
