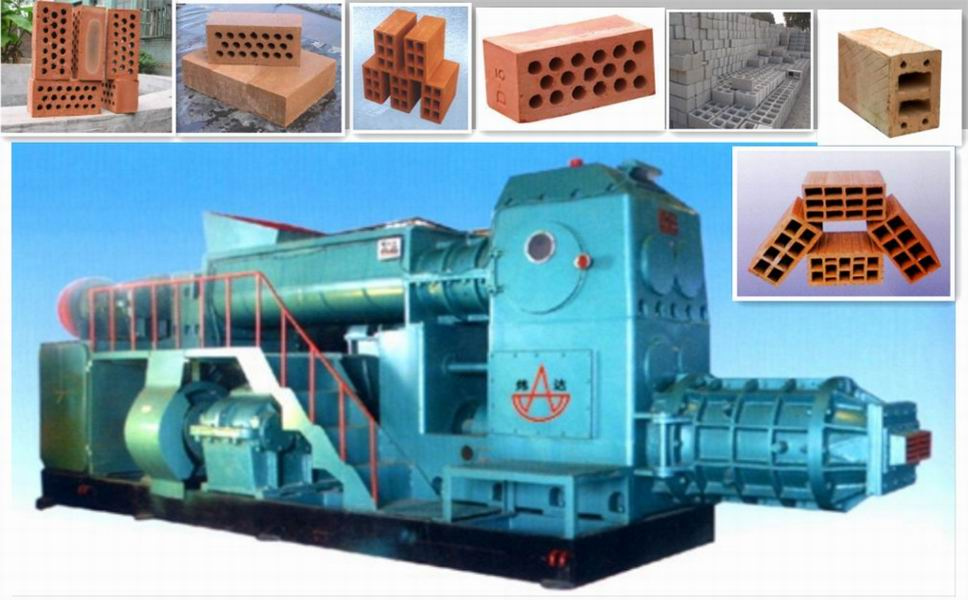

JK series vacuum extruder is used for produce all kinds of hollow brick, red brick with the material of cola gangue, shale, fly ash, slag or clay and so on.
The machine is compact in structure. It can be running balance without installing stone bolt. It could reduce the cost of motion consumed by equipment's wobbling while running with maximum crest.
|
Model |
Capacity Piece/H |
Power (KW) |
Oversize |
|
JKY60/60-40 |
16000-20000 |
220 |
5450*5960*2700 |
|
JKY50/50E-40 |
12000-16000 |
160 |
5300*5550*2500 |
|
JKB50/50B-35 |
12000-16000 |
160 |
6500*1850*2500 |
|
JKB50/50C-30 |
12000-16000 |
132 |
6470*1800*2500 |
|
JKB45/45D-30 |
11000-14000 |
110 |
6320*1800*2420 |
|
JKR45/45F-25 |
11000-14000 |
110 |
6100*1680*2370 |
|
JKR40/40F-20 |
9000-12000 |
90 |
5400*1600*2220 |
|
JKR35/35D-20 |
7000-9000 |
95 |
5000*1550*2050 |
Weida studies and construct from single machine to complete plants for ceramic industrial solution. The production range include: Clay bricks production line, split bricks production line, roofing tiles production line, terracotta panel production line, ceramic rollers production line.
We equipped with ceramics laboratory which is the only organization in China to research the plastic pressing, extruding process.
As one of the largest ceramic machinery manufacture, we research and developed the first complete automatic production line for split brick, ceramic honeycomb, ceramic roller rod, kaolin water cleaning product respectively in China. Weida also involved country aid for foreign construction.
Weida located on xiangtan city hunan province, we have established business relationship with many countries, we welcome cooperation at home and abroad customers to visit.
