Product Specifications
| Prod Model: |
LS-3000+ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Specimen Vertical Stroke: |
60mm |
| Specimen Horizontal Stroke: |
20mm |
| Heat Extractor Working Time: |
15 Minutes |
| Max Specimen Size: |
35mm*35mm |
| Dimensions (W*L*H): |
660*640*1130mm |
| Type: |
Separation Type |
Product Description

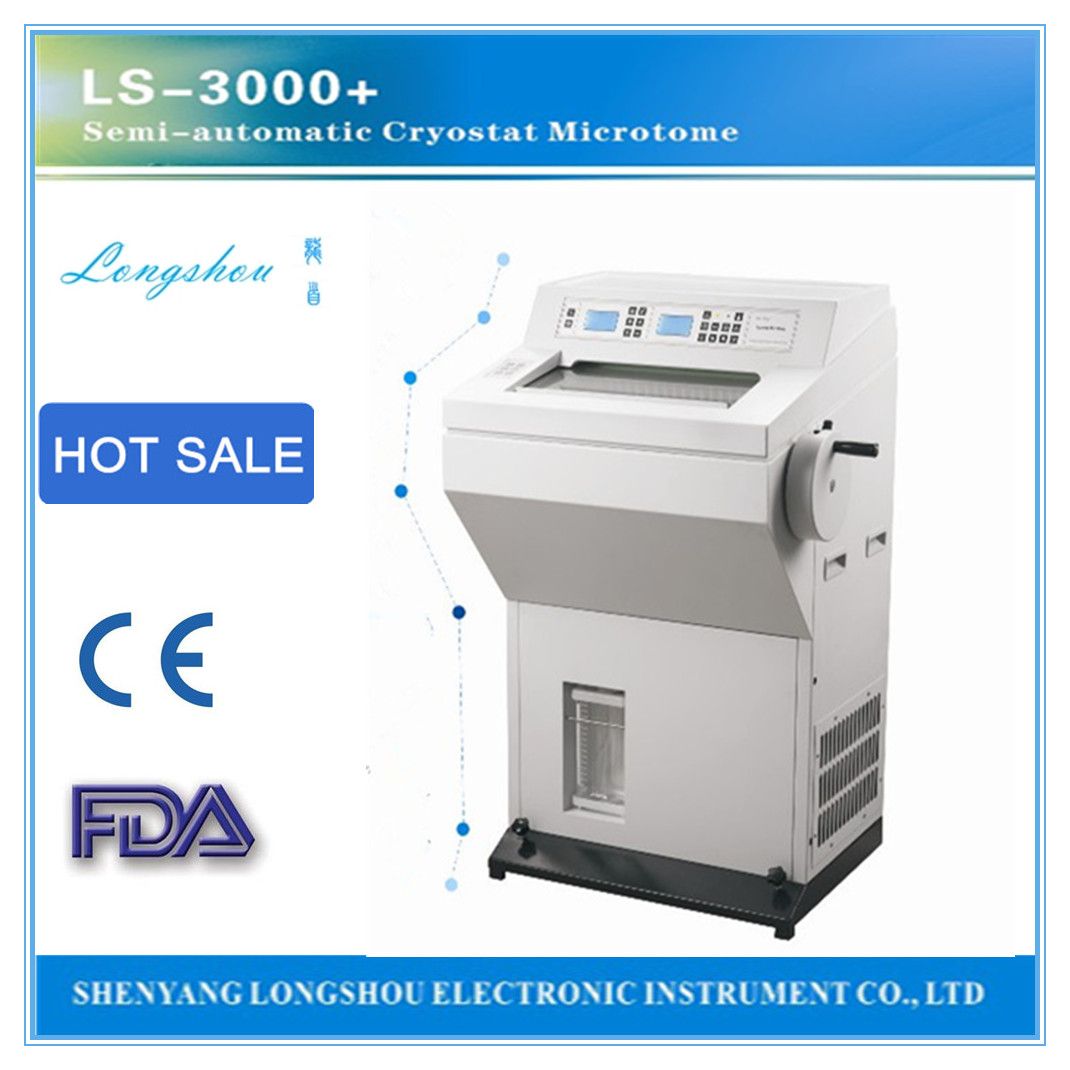

LS-3000+ Semi-automatic Cryostat Microtome
Considering customers' requirements, Model LS-3000+ improved our Model LS-2900 cryostat microtome by adding control sites and an additional compressor to make it a quick-refrigeration cryostat microtome with double compressors.
| Freezing chamber temperature range | -30ºC~-10ºC |
| Freezing shelf minimum temperature | -45ºC |
| Time freezing shelf need to cool down to -30ºC | 20minutes |
| Minimum temperature of heat extractor on freezing shelf | -55ºC |
| Heat extractor working time | 15 minutes |
| Section thickness range |
1μm~80μm adjustable;
1μm~20μm, in 1μm increment;
20μm~40μm, in 2μm increment;
40μm~80μm, in 5μm increment;
|
| Trimming thickness range |
10μm~400μm adjustable;
10μm~50μm, in 5μm increment;
50μm~100μm, in 10μm increment;
100μm~400μm, in 50μm increment;
|
| Specimen vertical stroke | 60mm |
| Specimen horizontal stroke | 20mm |
| Maximum specimen size | 35mm×35mm |
| Retraction range | 0μm~80μm adjustable; in 5μm increment. |
| Rough feeding speed | 0.7mm/s or 0.35mm/s |
| Voltage and frequency | AC220V±10%, 50Hz(Standard),
or AC110V±10%,60Hz |
| Power | 800W |
| Dimensions (W×D×H) | 660×640×1130mm |
| Weight | 130kg |
Packaging & Shipping
China LongShou Cryostat Microtome Price each unit packed :
Standard export plywood case, free-fumigation!
Accessories:
Tool bag, operation manual knife with box!
Port:
Dalian/Shanghai
Our Services
We provide OEM and are able to print customer's logo on the surface. Changing accessories in one year after purchase is free of charge.
More details pls contact me!!
Shenyang Longshou Electronic Instrument Co., Ltd. was founded in 1995, which was one of the earliest high-tech companies that focus on manufacturing pathological instruments in China. Being people oriented, we attach great importance to customer satisfaction and the quality of products. Thus, we built our team including experts and technicians of mechanism, computer and electric and sold large amount of products to a lot of customers in the world with attractive quality, price and also compliments from user. We dare say that our company is the best and largest manufacturer, supplier and contractor.
From the time we start business, we spent large expenditure to research and development in order to benefit our partners by advanced technology instead of cheap material. At present, we hold independent intellectual property rights of all our products and patents of many technologies, too, which make characters of our products internationally advanced and price very competitive.
We don't take products be sold as an end of order, instead we provide professional ,considerate and quick-respond service after sale to ensure customers normal use, including installation instructions, operation guidance, or troubleshooting.
We created our well-known brand "LS" and products with it being sold all over the world. We win global distributors' good graces by advanced culture concept, liable quality, lower price, considerate service and good corporate reputation..
