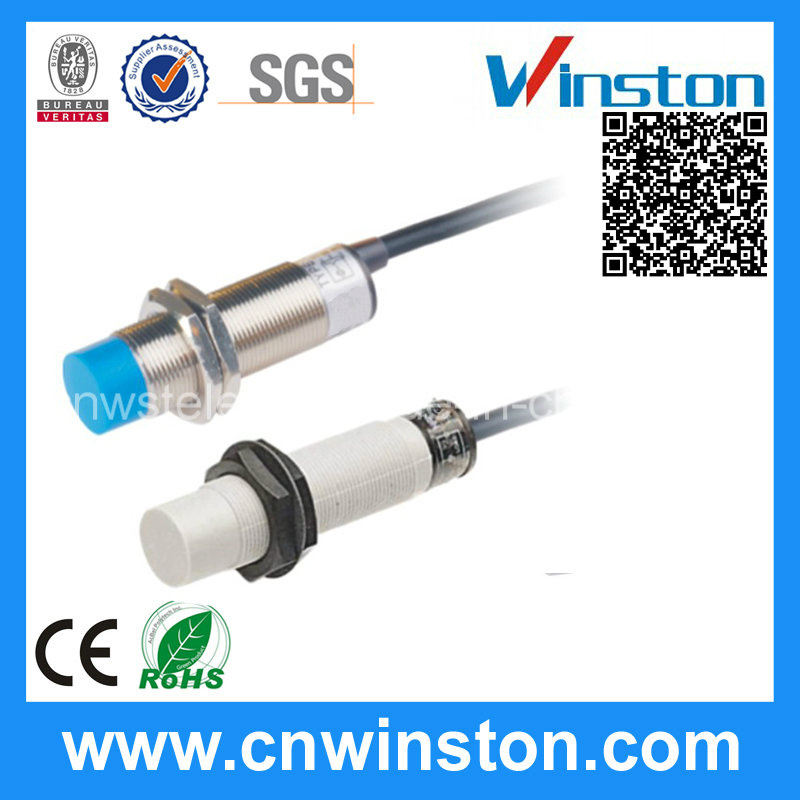

Product Specifications
| Prod Model: |
CM18 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe |
| Brand: |
Winston |
| Antistop: |
Proximity Sensor Switch |
| Workmanship: |
The Exquisite German Technology |
| Protection Structure: |
IEC Standard IP54 |
| Standard: |
Standard |
| Certification: |
CE |
| Type: |
Capacitance Proximity Switch |
| Wires: |
NPN PNP Two-Wires |
| Application: |
Location Detection |
Product Description
SW-2 is a sensor can replace any mechanical feed micro switch in the hopper, silo and last pan feeder. It have a built-in microprocessor, which can make the performance to achieve optimal. As soon as the material close to the top of the sensor, the switch will start.
And SW-2 capacitive proximity sensor can be used for detection of separation.
Product Description:
Compact volume
high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof,vibration proof,water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life
Technique parameter:
| Sensing range | 1-15mm |
| Output function | NO/NC can be selected |
| Operating voltage | 20-250VAC/DC |
| Load Current | 5A |
| Short-circuit protection | Yes |
| Delay setting | 1…3600 sec |
| Voltage drop | <7V |
| Current consumption | <10mA |
| Switch-point drift | ≤±10 |
| Hysteresis | 5…15 |
| Switching frequency | 50/60Hz |
| Housing material | PBT |
| Ambient temperature | -25…70ºC |
| Protection grade | IP67 |
| Switching status | Red LED |
| Certification standard | CE |
