Product Specifications
| Prod Model: |
SHCNC-BB-40-2.0 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Type For Fold-bending Machine: |
CNC Fold-bend Machine |
| Application: |
Machinery & Hardware |
Product Description

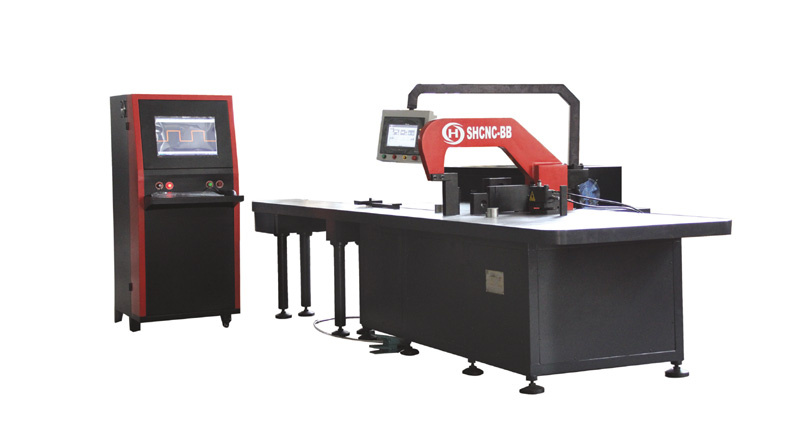

CNC busbar bending machine SHCNC-BB-40-2.0
1)The machine adopt closed type bending structure ,X-axis and Y-axis adopts line guides to guarantee the precision and avoid the disadvantage of open type bending, and guarantee the consistency in the width direction of the processing angle.
2) The Max. stroke of X-axis is 2000mm,and this can widen the unilateral length of processing, and increase the scope of the workpiece.
3)When vertical bending, the die has an automatic function of clamping and releasing so as to guarantee the flatness of processing plane and reduce the injury of curved arcuate.
4)The used software can be connected with punching-shearing machine. As for the very bending workpiece, it can find the bending times automatically to realize auto program. It also can imitate the bending process and avoid the fault of bending position according to the imitation of placing busbar.
|
Items |
Units |
Parameters |
|
Force |
KN |
400 |
|
Bending accuracy |
degree |
Automatic compensation <±0. 3
Manual compensation can be up to <±0.2 |
|
Max. stroke of bending |
mm |
250 |
|
Stroke of lateral block material |
mm |
2000 |
|
Max. moving speed of lateral block material |
m/min |
15 |
|
Bending head |
m/min |
Fast speed 5,Slow speed 1025 |
|
Min. width of U-bending |
mm |
40 |
|
Max. bending angle |
degree |
90 |
|
Level bending (W×T) |
mm |
200×1 6 |
|
Vertical bending (W×T) |
mm |
120×12 |
|
Total weight |
Kg |
2300 |
|
Host area :L×W |
mm |
6000×3500 |
|
Max. hydraulic pressure |
Mpa |
35 |
|
Total power |
KW |
6 |
