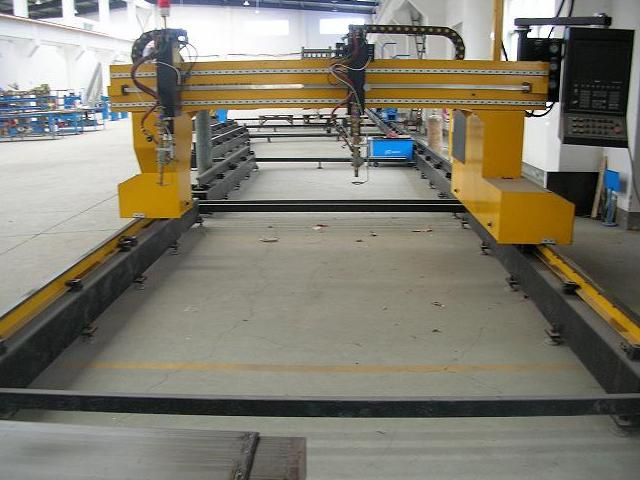

CNC series metal cutting machine main features:
1. Gantry structure, good stability and durability;
2. Adopted Panasonic high-precision AC servo motor, high-precision running more smoothly reducer;
3. With automatic ignition, automatic increase function;
4. 15-inch liquid crystal display, the entire Chinese menu, the whole touch screen keyboard closed;
5. CNC system memory capacity, users are free to store;
6. CNC Nesting parts containing graphics database programming easier, more efficient operation;
7. USB interface to transfer the U disk files
8. Remote control network interface, support for remote fault diagnosis, remote upgrade.
|
cnc cutting machine Standard technology specification |
|
Order No. |
ZT2241 |
ZT2242 |
ZT2243 |
ZT2244 |
|
Model |
CNC-3000 |
CNC-4000 |
CNC-6000 |
CNC-8000 |
|
Horizontal span |
3000mm |
4000mm |
6000mm |
8000mm |
|
Effective cutting width |
2200mm |
3200mm |
5200mm |
7000mm |
|
Track length |
2m × 6 |
2m × 6 |
2m × 6 |
2m × 6 |
|
Effective cutting length |
10m |
10m |
10m |
10m |
|
Cutting speed |
8 0- 1000mm/min |
|
Cutting Thickness (Flame) |
6- 100mm |
|
Cutting gas |
Oxygen + acetylene or propane |
|
Cutting precision |
Ra12.5 |
Founded in 1989, our company is not only a member of the Electric Welder Branch of China Electrical Equipment Industrial Association, a member of the China Welding Association but also a member of Shanghai Foreign Economic Relation & Trade Commission. We are professionally engaged in manufacturing welding machines, cutting machines, groove machines and welding accessories.
There are two production bases owned by the company, one in Wenzhou city, Zhejiang province, which started its welding business in the 1980s, and the other in Shanghai (also the HQ), which together occupy a total construction area of more than 30, 000 square meters. This production capacity makes it provide larger quantity of machine requirements, shorter lead time and faster delivery. The company has also established 7 offices nationwide, which enables it to provide a complete system of promotion, distribution and after-sales service.
Having successfully passed the accreditation of China Compulsory Certification (CCC), the company, with its high quality products, won the hearts of customers nationwide. The company acquired the CE certificate and is promoting the high quality machines in European market. We are dedicated to the Research and Development of welding machines and cutting machines to meet the needs of our customers worldwide.
Products
1. Welding Machines: MIG series, TIG series, CO2 series (manual or automatic, inverter DC, pulsed, IGBT, one or more functions in one), DTN series(pneumatic spot/projection welding machine)
2. Cutting Machines: Semi-automatic gas cutting machines, Tube cutting machines, CNC cutting machines, ZNC portable cutting machines, Air plasma cutting machines
3. Groove Machines: ISY series, GPK series (electromotive or pneumatic)
4. Accessories and Other Machines: TIG torches, Other arc welder torches, Welder cable coupling devices (quick connectors), Welding Circular Water Cooler, Infrared Electrode Drying Oven, Welding Positioner
