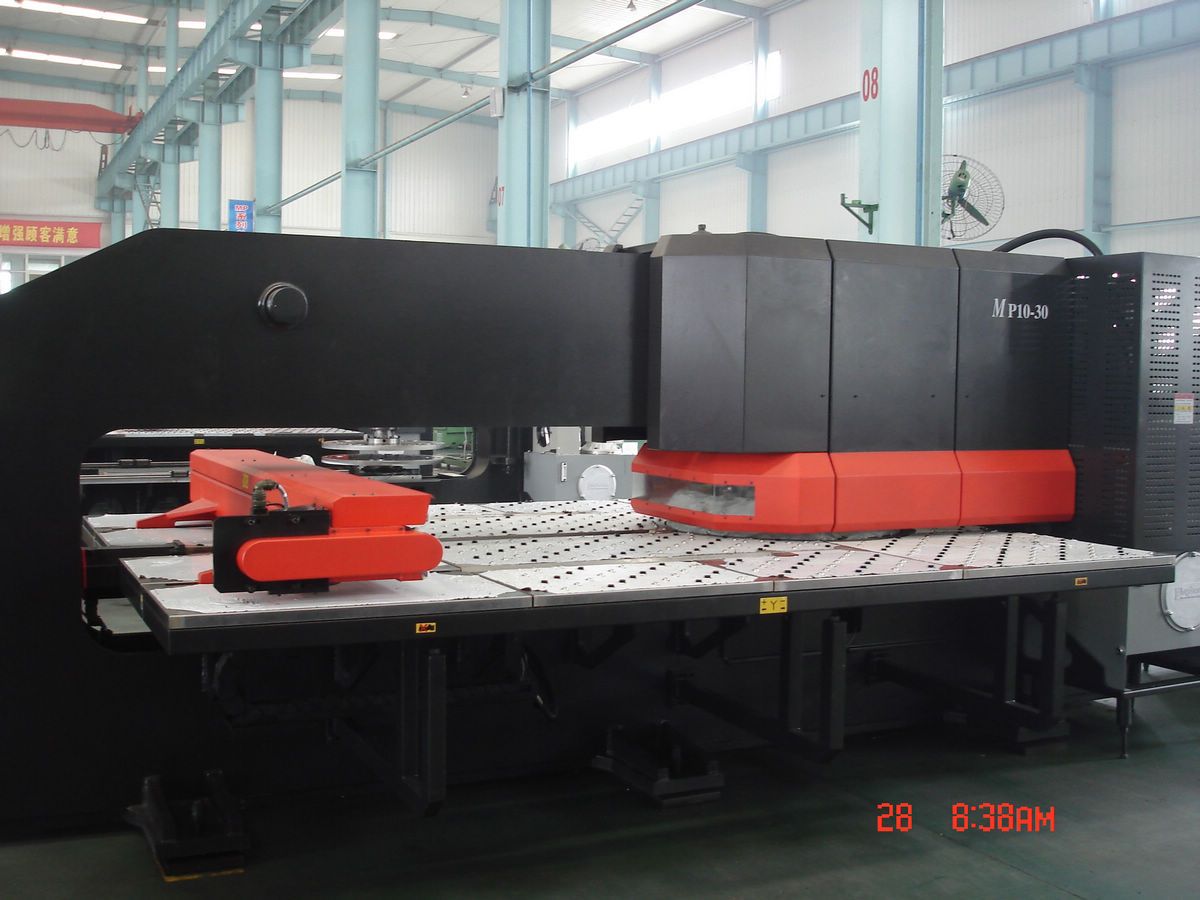

CNC hole punch press machine, CNC hydraulic hole punch press, Power distribution pannel bus bar machine, CNC Turret Punch Machine
Machine Feature
1. Advanced and reliable hydraulic drive system can select stroke automatically corresponding to different thickness of metal sheet and is convenient to realize special process of louver, blanking, etc. The punch is equipped with auto hydraulic overload protection device, and guarantees consistent pressing force for quality products.
2. The punch is of FANUC 0IP control system.
3. Rotary tooling stations are of worm wheel structure with max. Punching diameter of 50.8.
4. Dual turret is of long insert structure ensuring coaxiality of the punch and die, which gives long life to the tool and turret.
5. Imported pneumatic and hydraulic components guarantee reliability of the machine.
6. Imported ballscrews with long travel, and linear guideways ensure transmission precision.
7. The worktable with hard brush and steel ball reduces noise and shock of the machine, and protects surface of the work piece.
8. The machine is straight-side frame, which is annealed for eliminating inner stress.
9. The clamps with auto protection function, in the protective zone, only excise movement without punching action for continuous operation.
10. Central lubrication device provides lubricant oil to the desired points to reduce friction of pairing elements for long machine life.
11. Tool station layout consists of A, B, C, D, which is convenient for the customer and save the tool cost.
12. Common requirement is for site foundation preparation and machine installation is simple.
1 |
Control system |
1 set |
Japanese FANUC |
2 |
Servo unit and motor |
3 set |
Japanese FANUC |
3 |
Hydraulic punching head |
1 set |
German H and L |
4 |
Ballscrews |
2 |
HIWIN |
5 |
Linear guideways |
4 |
HIWIN |
6 |
Supporting bearing for ballscrews |
8 |
Japanese NSK |
7 |
Supporting bearing for turret |
4 |
French TIM |
8 |
Pneumatic component |
1 set |
Japanese SMC |
9 |
Connector |
1 set |
Korean SANG-A |
10 |
Coupling |
10 set |
German KTR |
11 |
Main electronic elements |
1 set |
Imported |
When the new century has come on the horizon, Shanghai Huantu Technical Industry Co., Ltd has become the leader of the plate processing machinery inside the country. We occupy more than 20000 square meters warehouse and dedicated to the research and development, production and sales of medium and high-rank plate processing machine including hydraulic shearing, bending, rolling machine and Ironworker, which are widely used in airspace, shipbuilding, automobiles, military, electrical appliances, metal works, coinage and various other fields.
We have been exported to dozens of countries and regions in Europe, America and Southeast Asia. Our company has been taking the lead for its aggregate annual sales revenues, and has been listed among" the national key new & hi-tech enterprises". In the process of prospecting its modern corporate system, We have attached importance on and given full play to the large-scale production, specialization in its development, standardization of its management, network construction for its sales and distribution, full and complete product lines in R&D, independent IPR, quality of services and knowledge increase of the employees; And it has gained advantages in science and technologies, quality and market share through state-of-the-art management, technical innovation, equipment upgrade and its sophisticated strategy on product lines, quality and rank.
National industry is the soul of a nation‘ S economy; Machinery industry is the parent of all other industries. As a rising star in China‘ S national machinery industry, Shanghai Huantu Technical Industry Co., Ltd is aiming at the world, marching towards the goal of" building up a word-known brand name and laying the basic for its development of hundred years".
