Product Specifications
| Prod Model: |
CK6140A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |
| Power Source: |
Hydraulic Pressure |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |

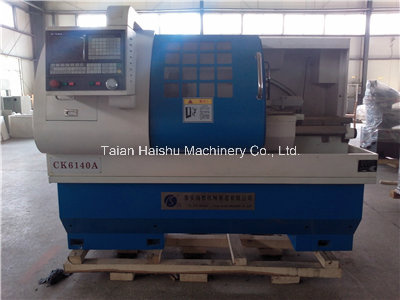

Product Description
1. Main features
1. big spindle bore dia Φ70mm
2. big swim over the bed dia Φ420mm
3.high spindle speed 2800rpm
4. wide casting at all the foot of the bed;30mm higher side to Stop water
5. theguide rail width (340mm)
6 Double triangle guide rail.
7. Tailstock is double platen to strength
8.independent spindle and frequency conversion stepless
9.Feed of X Z axis are driven by ball screw with servo-motor or stepper motor.
10.he guideway use hyperacoustic quenching.
11.Hardended and ground bed guide way coated with Turcite-B
12. high pression ball screw, High rigid precision composite bearing structure
13.ball screw and the guide surface combination use automatic lubrication system.
specification
Item |
Project name |
Technical paramaters |
|
CK6140A |
technical specifications |
Max.swiming over the bed dia. (mm) |
|
Φ400 |
Max.swiming over pallet(mm) |
Φ245 |
Max.the workpiece length(mm) |
750/1000 |
Main transmission |
Main transmission form |
Independent spindle, stepless frequency conversion timing |
Number of spindle speeds |
stepless |
Range of spindle speed(r/min) |
200~2500 |
Spindle centering axial taper |
MT6 |
Chuck size(mm) |
Φ200/Φ250 |
The nose type |
No.6, A2 |
Spindle bore(mm) |
60mm |
Main motor power(kw) |
5.5kw |
Feed system |
Turret maximum stroke(mm) |
X - axis: 260 Z - axis:750 |
Fast-moving feed(mm/min) |
X - axis:6000 Z - axis:8000 |
Repeat positioning accuracy(mm) |
X - axis:0.01 Z - axis:0.015 |
Workpiece accuracy |
IT6-IT7 |
Workpiece surface roughness |
Ra1.6 |

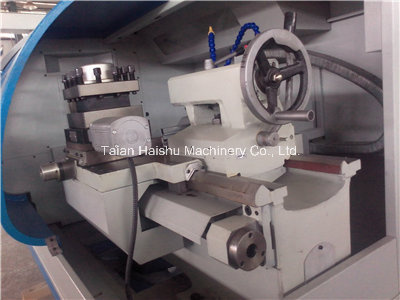

tailstock |
Dia. of tailstock quill(mm) |
Φ60 |
Tailstock quill stroke(mm) |
120 |
Taper of tailstock quill |
MT4 |

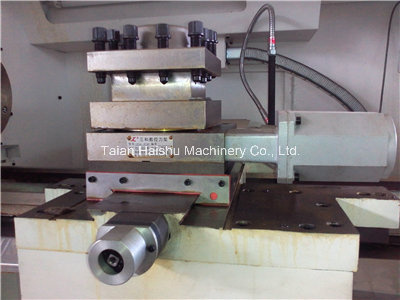

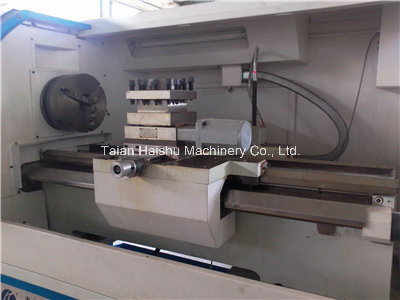

Tool post |
Standard accessories |
4 station electric tool |
Opinional accessories |
6 tool post or 8 tool post |
Repeat positioning accuracy(mm) |
0.008 |
Section of turning tool(mm) |
|
25*25 |
Size and weight |
The size of the machine
(length*width*height)(mm) |
|
2400*1450*1650 |
Net weight of the machine(kg) |
|
1900 |
standard configuration1.CNC system :GSK928
2. 4-position tools
3.Automatic lubrication pump
4. Manual 3-jaw chuck
5.Manual tailstock
6.coolant system, lighten system
7.protective door
8.operation manual
9.unit tools box
10.Voltage:3 phase 380v 50HZ(If you need other voltage ,please tell me in advance)
optional configurationhydraulic chuck/tailstock
pneumatic chuck/tailstock
automatic bar feeder
slant bed
change voltage 215/220/415v
6/8 stations turret
Main features
1. Spindle brake way by electric brake
2. Feed of X.Z shaft are driven by all screw with servo-motor or stepper motor
3. Imported or homemade CNC system
4. Rotary various work piece surface automatically turning, precision machining
5. the body of the lathe has good rigidity; the guide is treated by super audio quenching with high hardness, grinding the surface with high accuracy.
6. The carriage adopts plastic paste processing. High precision with long life.
7. Electronic hand wheel equipped easy operation.
8. after the lead rail of the machine is treated by super-audio quenching and finish grinding and plastic coating, it is of good rigidity and stability.
9. Three gears controlled by a handle, stepless speed regulation, with lower noise and high- standard machining accuracy, is an environmental- protective machine.
10. CK6140A cnc lathe price machine from haishu The spindle is the high- rotate speed and sophisticated bearing, with smooth surface. The extra size diameter of the spindle bore isφ82mm while the diameter of chuck is φ250mm.
If you are interested in our products, welcome to leave a message or send the inquiry to understand the details of machine.
