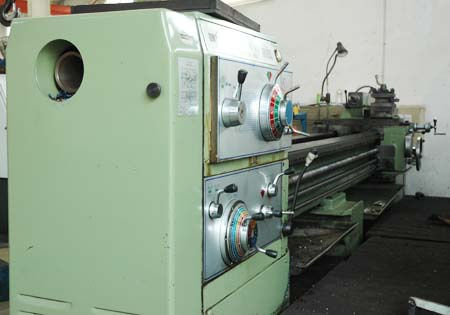

lathe machine tool/CNC machine
Feature:
1) precision ground
2) CE-conformity
3) safety torque limiting device for lead screw
4) safety overload clutch for feedrod
5) rapid traverse (optional)
6) main spindle supported at 2 points with precision taper roller bearings
Standard accessories
3-jaw chuck 250mm, driving plate, center & center sleeve, oil gun, wrenches, operation manual
Optional accessories
Steady rest, follower rest, 4-jaw chuck 320mm, face plate, thread dial, longitudinal automatic trip, live center, quick change toolpost, taper copy ruler, 4-position longitudinal antomatic trip.
| SPECIFICATIONS | 22606 | 22607 | 22608 |
| CY6 1/2 60 | CY6 1/2 66 | CY6 1/2 80 |
| Swing over bed | 600 (24" ) | 660 (26" ) | 800 (32" ) |
| CAPACITIES | Swing over cross slide | 400mm | 460mm | 600mm |
| Swing in gap | 800mm (31 1/2" ) | 860mm (33 4/5" ) | 1000mm (39" ) |
| Valid length of gap | 280mm (11" ) |
| Max Length of work piece | 1000mm (39 1/3" ) 1500mm (59" ) 2000mm (78 3/4" ) 3000mm (118" ) |
| Width of bedways | 400mm (16 1/4" ) |
| HEADSTOCK | Spindle nose | ISO-C11 or ISO-D11 |
| Spindle bore | Φ 103mm (4" ) |
| Range of spindle speeds, Number | 9-1275rpm/18, 16-81rpm/6 |
| FEEDS | Max. travel of compound rest | 110mm |
| Max. travel of cross slide | 325mm |
| Longitudinal leadscrew pitch | 12mm or 2TPI |
| Section of tool | 32 x 32mm |
| Longitudinal feeds range | 72kinds 0.073-4.066mm/rev |
| Cross feeds range | 72kinds 0.036-2.033mm/rev |
| Metric threads range | 72kinds 0.5-112mm/rev |
| Inch threads range | 72kinds 56-1/4 t/inch |
| Module threads range | 36inds 0.5-7mm |
| Diametral threads range | 36kinds 56-4Dp |
| CARRIAGE | Dia. of tailstock sleeve | Φ 90mm |
| Morse taper of tailstock sleeve | Morse No. 6 |
| Travel of tailstock sleeve | 150mm |
| Cross adjustment range | 10mm |
| TAILSTOCK | Power of main motor | 7.5kw 10kw |
| Power of quick-travel motor | 250w |
| MOTOR | Power of coolant pump | 90w |
| Power of supply | 220V, 380V, 420V (50Hz, 60Hz) |
| Packing Size (L x W x H) | 1000mm | 2820 x 1300 x 2100mm |
| 1500mm | 3320 x 1300 x 2100mm |
| 2000mm | 3820 x 1300 x 2100mm |
| 3000mm | 4820 x 1300 x 2100mm |
|
| N. W / G. W | 1000mm | 2900/3500kg | 3000/3500kg | 3150/3750kg |
| 1500mm | 3150/3750kg | 3250/3850kg | 3400/4000kg |
| 2000mm | 3400/4050kg | 3500/4150kg | 3650/4300kg |
| 3000mm | 3800/4450kg | 3900/4550kg | 4050/4700kg |
