Product Specifications
| Prod Model: |
MF50/200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Automation: |
Automatic |
| Type For Cutting Machine: |
Plasma Cutting Machine |
| Application: |
Machinery & Hardware |
| Type: |
Plasma Cutting |
| Cross Beam Length(X Axis): |
5000mm |
| Longitudinal Rail Length(Y Axis): |
20000mm |
| Effective Cutting Width: |
4200mm |
| Effective Cutting Length: |
18000mm |
| Cutting Mode: |
Plasma |
Product Description

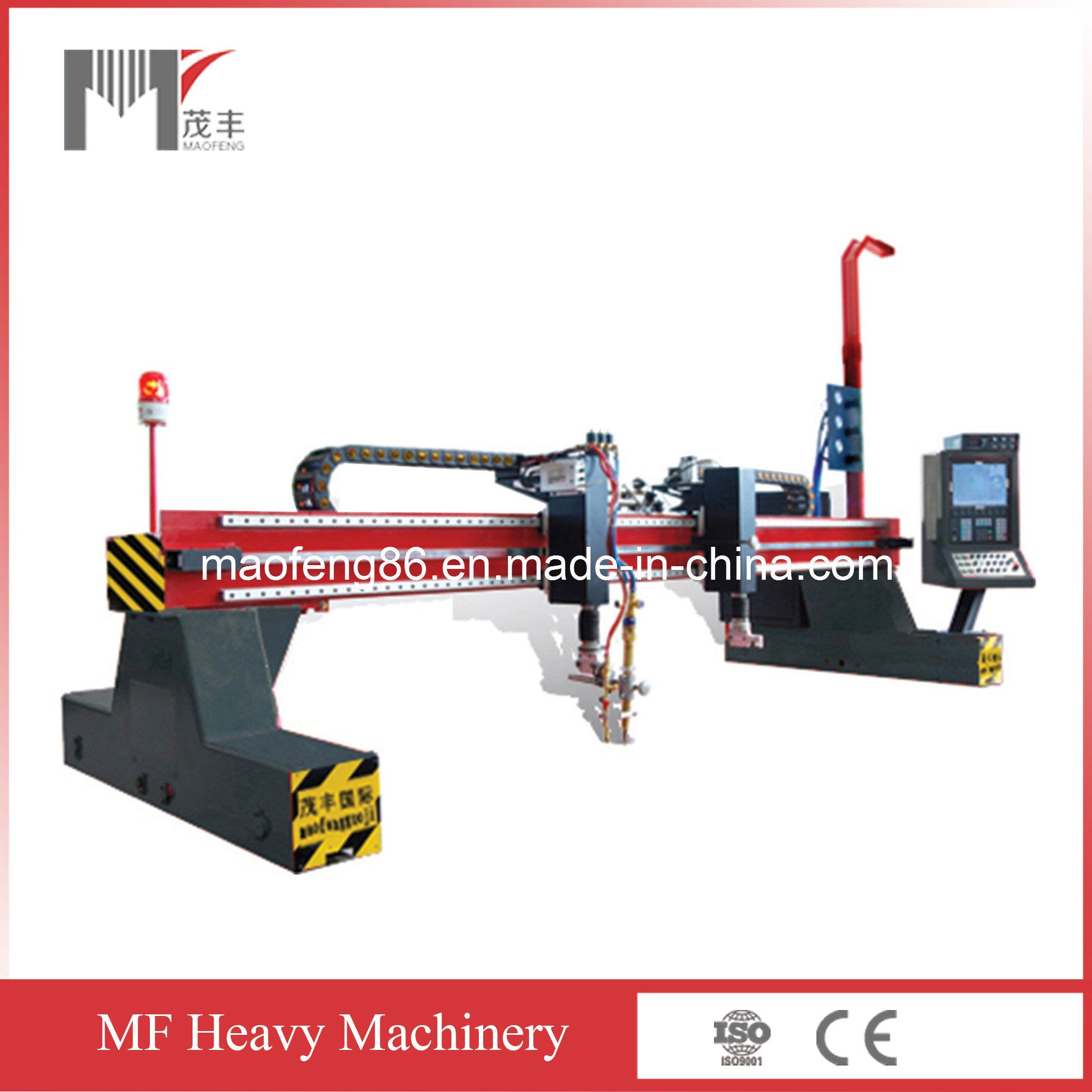

Economical and high effecient CNC flame/plasma cutting machine can be applied in lot size straight steel plate cutting, as well as various geometric shape cutting.
This cutter adopts gantry structure, its cross beam have many specifications, both of them adopt dual drive and lineal guide. Torch quantity is optional according to users'demands. Cnc plasma cutting machine is mainly used to cut 1-60mm metal plates.
It can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting), etc, be widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
|
Cross Beam Length(X axis) |
3000mm;4000mm;5000mm;6000mm;8000mm; |
|
Longitudinal Rail Length(Y axis) |
20000mm;24KG\38KG\43KG heavy rail
(can be lengthened according to user's demand) |
|
Effective Cutting Width (X axis) |
2200mm;3200mm;4200mm;5200mm;7200mm; |
|
Effective Cutting Length (Y axis) |
18000mm |
|
Cutting torch station numbers |
1 or more sets |
|
Cutting Mode |
Plasma |
|
CNC system |
Starfire |
|
Servo Driving motor |
Stepper motor |
|
Drive Mode |
Bilateral Driver |
|
Drive Method |
Rack and pinion drive for X and Y axes |
|
Plasma Cutting Thickness |
1-60mm (according to the specification of plasma power source) |
|
Nesting Software |
STARCAM |
|
Automatic Torch Height Controller |
Arc voltage height controller for plasma cutting |
Established in 2006. MaAnShan Maofeng Heavy Machinery Manufacturing Co., Ltd. It passed authentication of the ISO9001: 2000 quality management system in 2005, and CE certificate in 2008. Dedicate to product development, quality and service improvement, creating greater value for global customers to enhance the international competitiveness of China forging equipment industry.
It mainly produces brand series products: Hydraulic swing/Guillotine Shear, Hydraulic plate bending machine, press, Cutting machine. Three/Four roll bending machine etc, Four series of more than one hundred models. The large electro-hydraulic servo press brake WADF series filled the gap in AnHui province and won good praise. And have exported to Europe and America, Southeast Asia, Middle East such countries.
We firmly believe that through our unremitting effofts, we are able to meet your needs, and achieve win-win cooperation
