Product Specifications
Product Description
[Main Applications]

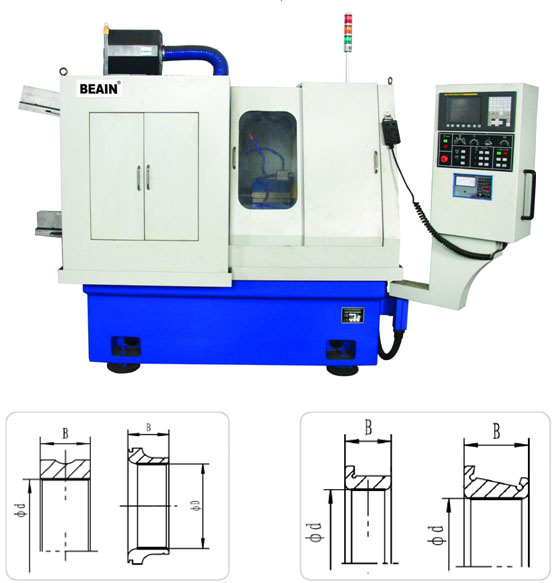

Bore grinding for ball/roller bearings or outer track grinding of roller bearings.
[Main Features]
1. Implemented with Japan's FANUC all digital servo system (1 or 2-axis) with color display, "man-machine conversation" interface, manual pulse generator and self-diagnostics, the control system is stable, reliable, easy to maintain and convenient in adjustment.
2. Work spindle drive and oscillation slide motors are speed-variable with F. C.
3. Workhead slide is driven by servo motor.
4. Wheelhead slide is driven by either servo motors or hydraulic cylinder. To and- fro movement of the grinding wheel is realized by a servo motor or eccentric wheel driven by a speed-variable motor.
5. Grinding wheel is dressed automatically by single-point diamond pen-type dresser.
6. Automatic loading and unloading manipulator is stable, reliable, versatile, easy to adjust and free from dent mark on workpieces.
7. The machine is equipped with active in-process measuring system.
8. Wheelhead uses high frequency spindle with high speed and stiffness. F. C. Can be user-customerized.
9. Centralized lubrication system provides timing, quantitative and duly lubrication of ball screws.
10. Equipped with flushing system, the machine is easy to keep clean.
11. High grade cast-iron machine body with double aging treatment assures the overall accuracy performance.
12. Painted and enclosed machine guard is nice looking and splash-proof and has a long service life.
[Main Specifications]
Machine model, Workpiece ID Mm, Workpiece width Mm, Swivel angle of workhead, Processing accuracy, Total power KW, Weight Kg
3MZ206CNC 15-60 12-40 0-30° P4, P5 15 3000
3MZ2010NC 50-120 20-70 0-30° 19 4500
3MZ2016CNC 80-160 30-80 0-30° 20 4500
3MZ2020CNC 90-200 40-110 0-30° 30 5000
3MB2030CNC 150-300 30-150 0-30° 30 5500
Puyang BEAIN CNC Machinery and Equipment Co., Ltd. is a Sino-foreign joint-venture specialized in design and manufacturing of bearing processing machines with high precession, good stiffness and competitive price.
Our machine processing range:
Horizontal ring grinders and superfinishing machines for TRB CRB SRB DGBB and ACBB bearing rings.
