CNC Machine Tools Xk7140 CNC Machine Milling
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
XK7140 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Table Size: |
400X800mm |
| Table Travel(Xxyxz): |
6100X450X500mm |
| Main Motor Power: |
5.5kw |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Movement Method: |
Linear Control |
| Control Method: |
Closed-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
Product Description

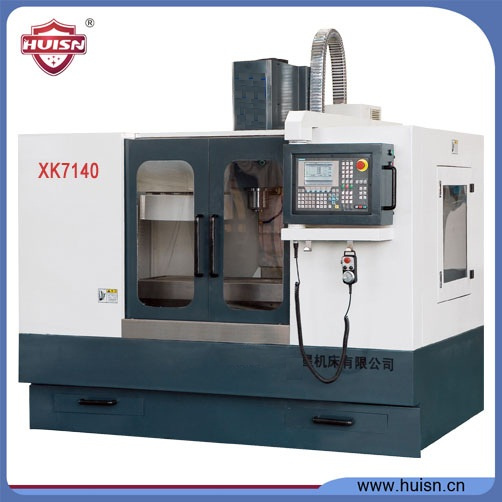

CE High precision CNC milling machine
1.Features:1).Axes of X, Y and Z are driven by precision ball leadscrew, high accuracy and long life.
2).Axes of X and Y adopt linear guideway, rapid movement speed and high accuracy.
3).Hardened guide surface of axis Z cooperates with PTFE wearable strip, high rigidity and long life.
4).Adopt servo spindle, large torque, high accuracy and good stability.
5).Auto-lubrication of axes of X, Y and Z.
2.Our milling machine XK7140 Specification for your study. | SPECIFICATIONS |
|
| XK7140 |
|
| Table size | 400x800mm |
| T-slot (number-width) | 5--18 mm |
| Max. load of table | 300kg |
| Strokes of X, Y and Z | 610,450,500mm |
| Distance from spindle nose to table surface | 500mm |
| Distance from spindle axis to vertical guideway | 450mm |
| Rapid feed (X, Y, Z) | 20,20,12 m/min |
| Spindle speed | 50-6000/50-12000r/min |
| Spindle taper | BT40 |
| Servo Main Motor Power | 5.5/7.5KW |
| Max. Weight of tools | 6kg |
| Max. dia. of tools (adjacent tools) | 120mm |
| Tool Changing Time | 9 S |
| Positioning accuracy | ±0.012mm |
| Repositioning accuracy | ±0.008mm |
| Machine Weight | 4000Kg |
| Overall Dimensions (L*W*H) | 2260*2346*2610mm |

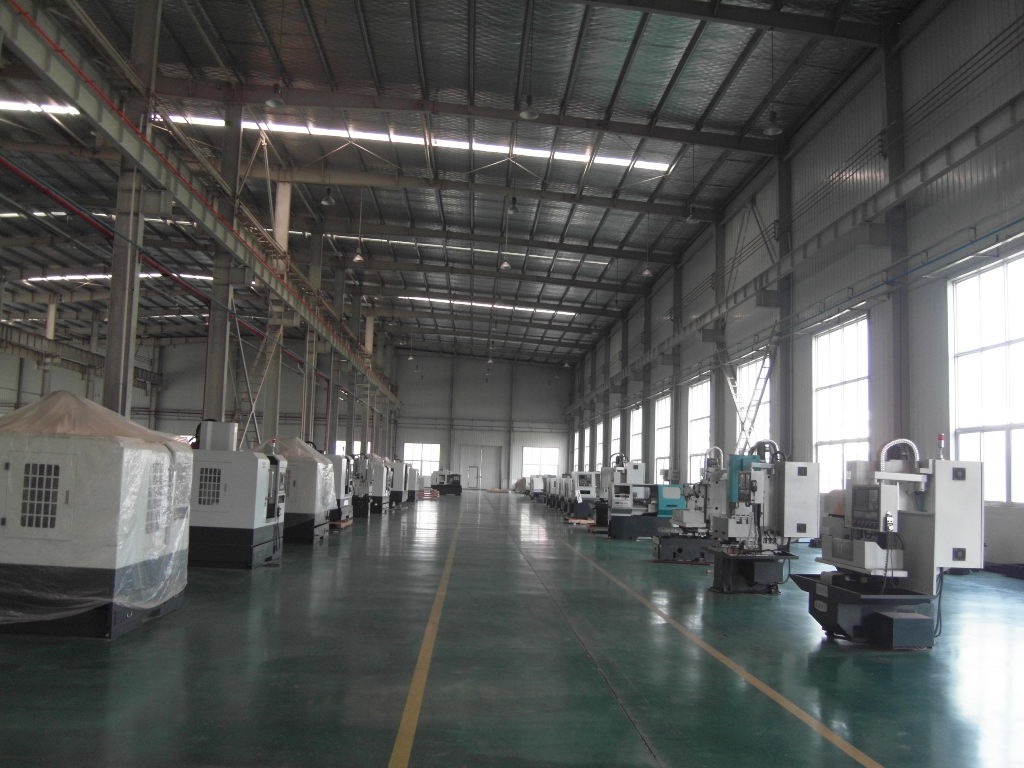

3.Our CNC milling machine workshop corner.
4.FAQ
1.Question : Are you a factory or trading company ?
Answer: We are an SGS recognized OEM / ODM manufacturer factory with export license. we have an experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.
2. Question : Why choose cooperate with us ?
Answer :
--Reliable Quality and All components from world leading suppliers ;
--Cost-effective export infrastructure and total supply chain management ;
3. Question : Where is your factory located ? How can I visit there ?
Answer: With an ISO90001 certified factory located in Chizhou city,Anhui Province, P.R. China . It takes about 2 hours from Nanjing by train. Warmly welcome clients to visit us .
4. Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.
5. Question : How does your factory do regarding quality control ?
Answer: Reliable Quality is our dignity and we do quality checking carefully such as Incoming Quality Control, In Process Quality Control, Outgoing Quality Control , Environment Control, Product Traceabitity System , Internal Audits & Calibration, Equipment Control & Maintenance, Control of Non-Conforming Materials and etc.
Welcome you to visit our company website (www.huisn.cn)to send enquiry to us so you would get the best factory direct price,it is only for you !
Anhui Chizhou Weiss E & M Co., Ltd is located in Chizhou Economic Development zone #8 Jintong Road, Our Company business scope include: Design, manufacture, marketing and export series of machine tool products and accessories, and other mechanical and electrical products, Tourist Arts and crafts allow national policies and regulations; To carry out the connection with production and business activity of investment planning, training and consulting services.
We can supply CNC Lathe, CNC Milling, lathe, milling machine, drilling machine, sheet metal woring machine, Metal cutting saw, Grinding machine, woodworking machine and machine accessories and etc.
We exported to more than 30 countries including Germany, Spain, France, England, Greece, Finland, Norway, USA, Canada, Australia, South America, Middle East, Africa and Southeast Asia etc.
We have QC department who will carefully inspect every machine before packing, your professional machine supplier. We will always serve you faithfully.
Warmly welcome you to visit our website and cooperate with us.
