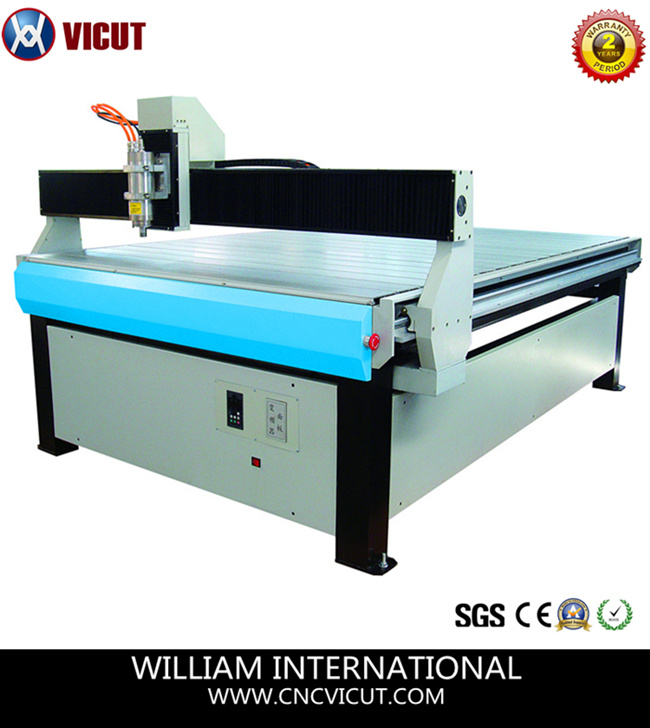

Model: VCT-1325S
Features:
1. Casting iron machine body.
2. Y Axis use Taiwan PMI Linear Square rails, XYZ use imported ball screw transmission, ensures the
Accuracy of working pieces.
3. Controller with USB interface which support offline work.
Applications:
1. Make unique, custom signage.
2. Create a variety of sign styles, including 3D cutout letters, dimensional signs, and beautiful
Print-to-cut designs.
3. Cut sign foam, plastics (including acrylic and PVC), metals (including aluminum, copper/brass), wood, and more.
Technical Parameter:
| Model | VCT- 6090S | VCT- 1313S | VCT-1325S |
|
| Machine Size | 880X1120mm
(2.89'×3.67') | 1520×1520mm
(4.98'×4.98') | 1520×2850mm
(4.98'×9.34') |
|
| Working Size | 600×900×90mm
(1.97'×2.95'× 0.3') | 1300×1300×90mm
(4.26'× 4.26'×0.3') | 1300×2500×90mm
(4.26'×8.2'×0.3') |
|
| Spindle Power | Water cooling1.5KW | Water cooling 2.2KW | Water cooling 2.2KW |
| Engraving Speed | 8000mm/ Minute |
| XYZ Transmission | XYZ Ball screw |
|
| Spindle Rotate Speed | 6000--24000rpm |
|
| Motor Driver | Stepper motor driver |
|
| Tool Diameter | 4mm, 6mm, 8mm, 12mm |
|
| Machine Structure | Cast Iron and Welding |
|
| XYZ Rails | Y axis PMI Square Rails, XZ round rails |
|
| Mechanical Accuracy | <0.03/300mm |
|
| Control System | DSP Handle with USB |
|
| Support Format | G code or HPGL |
|
| Working Voltage | AC220V/50Hz or 380V/50Hz |
|
| Net Weight | 320KG | 450KG | 650KG |
|
| Packing Size (L×W×H) | 1.5×1.2×1.65M
(2.97CBM) | 1.71×1.71×1.65M
(4.82CBM) | 3.2×1.71×1.65M
(9.03CBM) |
|
Details Show:
1. Base Frame: Iron casting base being precisely processed by gantry milling machine and stress relieved by vibration device, so that the machine body remains steady without deformation over the working life of the machine.
2. RichAuto DSP controller with English interface, a compact and durable DSP with 128M internal memory, it supports online file transfer with U flash memory. It is available with standard G code or HPGL, and has practical functions like faster calculation, stronger processing ability, break-point memory and power failure protection function, etc.
3. Spindle Motor: Quality 2200W water cooling spindle with different size collect which can be available for different size cutting bits for different materials. Customer also can choose more powerful spindles.
4. Ball Screw Bolt Pole: Bolt Pole: Bearing run along the bolt pole to eliminate its' shaking, which offers
Much smooth motion.
5. Linear Guide: Y axis linear square guide, XZ axis use linear round rails, which has high rigidity, vibration and shock resistance.
6. Stepper Motor drive: Industrial Sub-divided stepper motor centered drive has outstanding wearability and it offers Long-term maintenance-free solution.
7. Photoelectric Limit Switch: Un-touching, more sensitive and durable than traditional mechanical switch, Maintenance-free for long term use.
8. Dust Cover: Durable and flexible covers on X, Y axis offers dust-proof to every corner needed.
9. Electric Cabinet: All the electrical components are housed and wired in an electrical enclosure. This allows for easy access and service when needed. Every wire is tagged so that when service is required, the customer can easily navigate the cabinet.
Optional Specifications:
1. Spindle Options: We have both water cooling and air cooling spindle options of different powers made
In China or Italy.
2. Vacuum Inhaling System: Multi-zoned vacuum table which allows the operator to easily switch from full sheet processing to smaller part, gaskets can also be routed to accommodate various material sizes and styles. Fixtures can also be used if needed as we put aluminum alloys beside the vacuum table. 7.5KW air cooling vacuum pump enables enough power for inhaling the materials during working.
3. Servo Motor: Leadshine servo motor or Panasonic Servo motor for more smooth motion and triple
Working speed, and they require no regular maintenance.
4. Mist Sprayer: It sends oil or Alcohol mist to machining surface, it is important for tool cooling and
Lubricating for acrylic and metal machining.
5. Dust Skirts: Switchable structure with dense skirts for your convenience to load tools, easy to remove
The dust completely.
