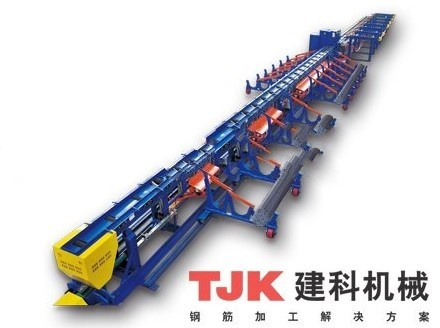

The machine widely used for building, highways, etc. May cut all kinds of standards with different lengths of steel.
Products Introduction: The machine widely used for building, highways, etc. May cut all kinds of standards with different lengths of steel, it is more utility to process multiple specifications and small quantities of reinforcement.
CHARACTERISTIC
1, Imported PLC and CNC to ensure high cutting quality.
2, Gradient guillotine with high capacity (patent).
3, Groove blade.
4, Automatic clamping device.
5, 6 level storage rack.
6, Oil supplying system.
7, Air clutch cutting unit (patent).
8, Multiple baffle for quick positioning and high efficiency (patent).
9, Bi-side discharge.
10, Mobile collecting pocket.
11, Baffle with bump resistance design.
12, Imported PLC and CNC to ensure high cutting quality.
13, Control systems: Siemens, MITSUBISHI, Panasonic.
|
Model |
XQ-120 |
Installed power(kw) |
7.55/7.5 |
Shear power(kw) |
4 |
Overall dimension(mm |
22, 800*3, 200*1750 |
Max shear capacity(mm) |
12000 |
Shear motor power(kw) |
1200 |
Shear blade width(kw) |
225 |
Converyor speed(m/min) |
54 |
Nos. to be sheared(nos) |
10.8.7.6.5.4.3.2.1.1.1 |
Bars size(mm) |
10.12.14.16.18.20.25.30.32.38.40 |
TJK is the largest and professional manufacturers of steel wire and rebar processing machinery and wire mesh welding system in China. Our products include wire mesh welding machines, stirrup benders, wire straightening and cutting machines, lattice girder production lines, wire cold rolling machines, rebar shearing and bending machines, rod cutters, rod benders and other rebar processing machines, which has passed quality certification of ISO9001-2000 system, CE certification and our own patents. Based on more than 200 technical patents and professional engineering team, we can provide professional solutions and excellent after-sales service to satisfy different customers. Our products hold above 95% market share in China and have been exported to more than 60 countries.
We aspire to develop high-definition technology and products and cooperate with each customer to meet different requirements.
