Product Specifications
| Prod Model: |
CPM300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Attribute (E. G.: Size): |
Value (E. G.: 12 Inches) |
| Type For Cutting Machine: |
CNC Cutting Machine |

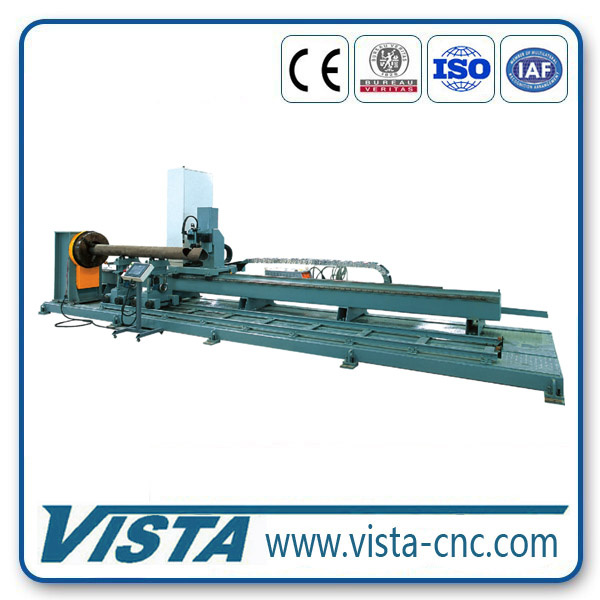

Product Description
1) Plasma cutting of linkage of six spindles
2) High precision, the error of positioning and cutting is only ± 1mm
3) Controlled by CNC automatically, and will complete the whole processing automatically with high efficiency once input the relevant data.
4) System uses touching screen with pictures to input.
5) Air-plasma cutting, plasma electric power uses OTO 12000 products of Japan.
6) Main machine, electric components and parts are adopted famous cooperation domestic and abroad
7) The first choice for the cutting of connection line of pipeline^
8) With 99 memory function of cutting process
| Subject | Main parameter |
| Diameter of pipe | 60mm~300mm |
| Max weight of work piece | 500kg |
| Thickness of pipe |
|
| Air-plasma cutting | 2.3~25mm(17~25mm drill at first) |
| Length of work piece | 600~6000mm |
| Speed of cutting(max) | 1500mm/min |
| Number of axis | 3 axis(Rotation of work, Swing angle of cutting torch, movement(left and right) |
| Moving speed (Left and Right)(Max) | 3000mm/min |
| Moving distance (up and down) | 180mm(hand movement) |
| Swing angle of cutting torch | ± 60° |
| Way of cutting | Air-plasma OTC D12000 |
| Total power | About 25Kw |
| Dimension of machine | 5000 x 1500 x 2050 |
| Weight of machine | About 1500 Kg |
Our company concentrates on the field of steel structure, petrol chemical and pressure vessel. Based on absorbing technical advantages of peer CNC equipments from domestic and international colleagues, we keep improving our products and provide cost-effective, user-friendly and reliable metal processing machinery. In current stage, the major equipments we produce and sell include CDMP series CNC plate drilling machines used for the processing of connection boards, BDM series CNC 3-D drilling machines used for the processing of section steel, SAW series CNC band sawing machines, SUK series section steel beveling machines and DM series CNC drilling machines for the processing of boilers, petrol, chemical plant pressure vessel and heat exchange, etc.
Our company centers on R&D. We entrust the processing of some parts to processional manufacturing companies and accomplish the assembly and adjustment of the complete machines by ourselves. First class products from the world famous enterprises are adopted for all key parts in our products, such as of electricity, hydraulic pressure, and mechanical drive and so on. In addition, there is strict QA management through the procedure in production and assembly, which can help to enhance the reliability and stability for the operation of our equipments.
A series of CNC drilling machines of VISTA have been exported to Korea, Russia, Ukraine, Iran and India for many times. Our company concentrates on enhancing organization management level of enterprise, makes efforts to perfect quality management system of production. And GB/T 19001-2000-ISO9001 has been certified in August, 2005.
Our company bases everything on Technology and Service; Self-reliance innovation, harmonious development. Colleagues are well welcomed for exchanges and cooperation. Let's prosper the steel structure market and seek common development and benefits together.
