CNC Pipe Profile Cutting Machine
| Price: |
US $ 60000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P |
Product Specifications
| Prod Model: |
CNCXG600-V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Controll Axis: |
6 |
| Type: |
CNC |
| Cutting Mode: |
Plasma |
| Control Mode: |
CNC |
| Cutting Nozzle Shape: |
Nozzle |
| Torch Type: |
Plasma Torch |
| Cutting Width: |
12000 Long |
Product Description

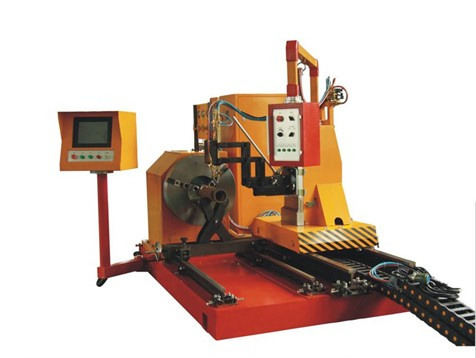

CNC Pipe Profile Cutting Machine
CNCXG numerical control pipe cutting machine is special designed steel pipe 3-D auto-cutting equipment.

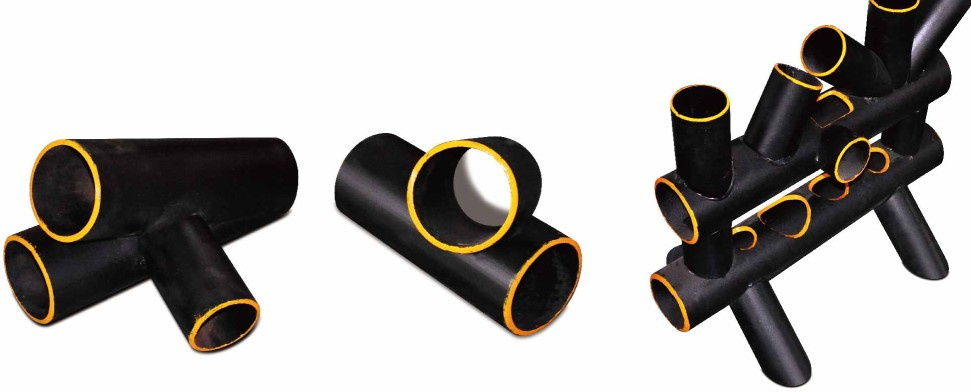

After inputting of basic data or leading proper format files, it is capable of automatically processing hole cutting, beveling, grooving, multi-branch and shrimp sections.
It is widely used in steel structure, oceaneering, bridge and steel tower building, petrochemical piping and pressure vessel industry.
Oxy-fuel and plasma cutting and beveling
Maximum cutting pipe diameter 1500mm
3D Cutting
Touch screen panel, convenient and fast data inputting, easy to use and learn
Saving cutting data any time, able to create technical data base by user
Compatible with Steel Structure designing software, expanding of machine function
Stable and reliable, able to cutting successive| Technical specification |
| Model | CNCXG600 | CNCXG800 | CNCXG1000 | CNCXG1250 |
| Cutting Pipe Diameter (mm) | Φ50-630 | Φ60-800 | Φ100-1000 | Φ200-1250 |
| Pipe length(mm) | 2000-12000 |
| Cutting Speed (mm/min) | 80-1800 |
| Cutting Thickness(mm) | Oxy-fuel:5-60mm, Plasma:1-25mm |
| Plasma max beveling angle | ±45° |
| Oxy-fuel max beveling angle | ±60° |
| Basic components |
|
| Pipe Chuck | 3 jaws concentric chuck |
| Cutting Mode | Oxy-fuel and Plasma |
| Number of Control Axes | 2-6 |
| Driving Motor | Servo motot |
| Available Plasma Power | Hypertherm, Thermadyne, Kjellberg ,TAYOR LGK |
| Other Data |
| Operation language | English or Chinese |
| Power voltage | 3×380V±10% or up by user's local condition |
