Product Specifications
| Prod Model: |
bt pull studs |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Process Usage: |
CNC Non-Conventional Machine Tools |
| Movement Method: |
Linear Control |
| Control Method: |
Semi-Closed Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
Product Description

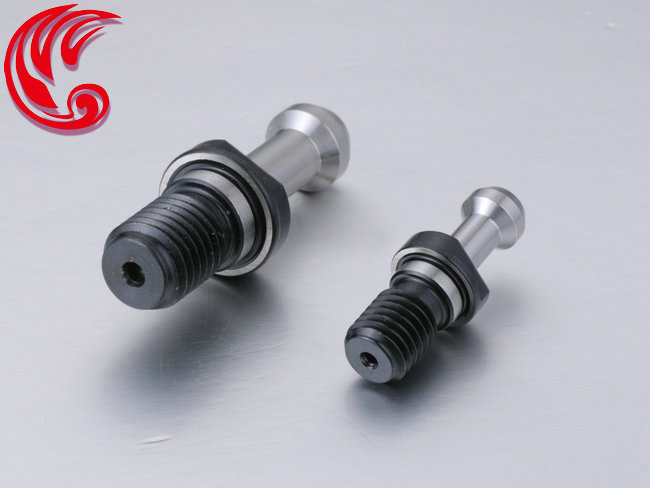

Pull stud by BT standard MAS403-19821.
1)material: alloy steel
2).Size:BT30,BT40,BT45,BT50
3)coolant or without coolant
| model | D | D1 | D2 | M | L | L1 | L2 | H | H1 |
ANGLE |
30 | 12.5 | 7 | 11 | M12 | 43 | 23 | 18 | 5 | 2.5 |
45º 60º 90º |
40 | 17 | 10 | 15 | M16 | 60 | 35 | 28 | 6 | 3 | 45º 60º 90º |
| 45 | 21 | 14 | 19 | M20 | 70 | 40 | 31 | 8 | 4 | 45º 60º 90º |
| 50 | 25 | 17 | 23 | M24 | 85 | 45 | 35 | 10 | 5 | 45º 60º 90º |
We are the leading supplier of machinery accessories in China.We can supply varouis machinery accessories such as pull stud,Er collet,Sealed collet,tap collet,R8 collet,5c collet,OZ collet,tool holder, vise etc
Other pull studs such as CAT/ISO,with or without hole are also available.
Enough stocks with fast delivery and top service.Contact us if need some products or any of my assistance.
