| Price: | US $ 1999/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
| Prod Model: | GC1525 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Process Usage: | Metal-Cutting CNC Machine Tools |
| Movement Method: | Contour Control |
| Control Method: | Open-Loop Control |
| Numerical Control: | CNC/MNC |
| Performance Classification: | High-End CNC Machine Tools |
No. | Technical specification | |||

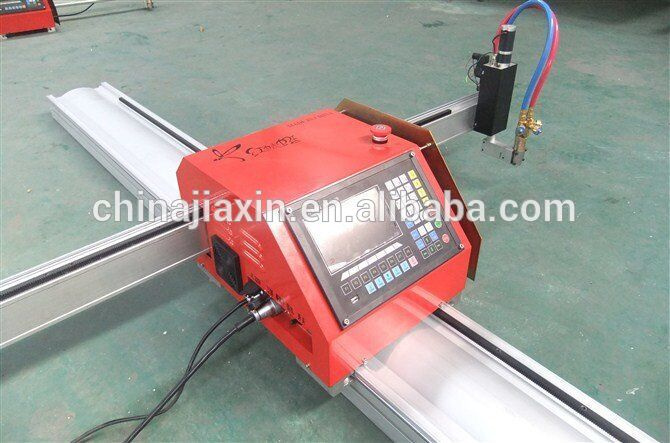

1 | Model | GC-1525 | GC-1530 | GC-1755 |
2 | Power source | AC 220±10%VAC 50/60Hz 220W | ||
3 | Cutting mode | O2/C3H8 or C2H2 | ||
4 | Effective cutting range(mm) | 1500*2500 | 1500*3000 | 1700*5500 |
5 | Plasma cutting gas | N2,O2,compressed air | ||
6 | Flame cutting gas | Oxygen+ propane or acetylene | ||
7 | Cross beam width*guide rail length (mm) | 2000*3000mm | ||
8 | Cutting speed mm/min | 50-10000mm/min | ||
9 | Flame Cutting thickness (mm) | 5-150 (Oxygen + acetylene or propane) | ||
10 | Plasma Cutting thickness (mm) | 2-20mm | ||
11 | Move precision | ±0.2mm/m | ||
12 | Torch | Flame, electric height adjustment(±60mm) | ||
13 | Cutting system | Start control system | ||
14 | Host weight(kg) | 19 | ||
15 | Total weight(kg) | 100 | 120 | 150 |
16 | Gas pressure(Mpa) | Max.0.1 | ||
17 | Oxygen pressure(Mpa) | Max.0.7 | ||
18 | Type of gas | C3H8 C2H2 | ||
19 | Emergency stop | Yes | ||
20 | Working temperature | -5~45ºC | ||
21 | Power | 8.5kw | ||
22 | Plasma power | 60A OR 100A | ||
23 | ARC | Untouched arc striking | ||
24 | Processing Materials | Iron, steel aluminum sheets, galvanized sheets, Titanium plates | ||
