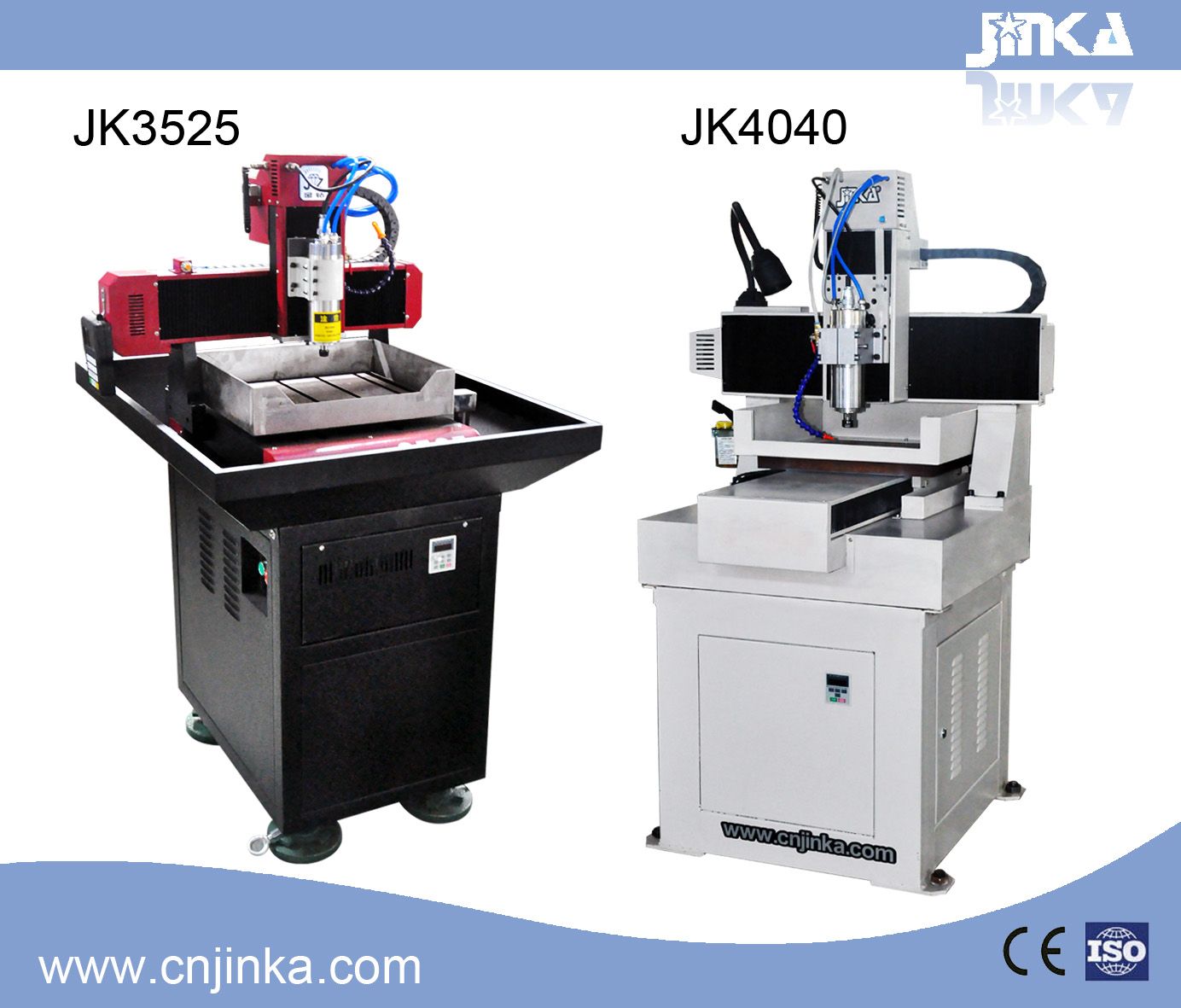

CNC Router / Advertising Machine Jk3525 / Jk4040
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
1. Adopting impoted linear square rail to ensure heavy loading, stable running,and high precision.
2. Manual lubricator for option saves maintenance time and extends the lifetime of square rail
3. CNC control system have breakpoint memory, power outages continue carving.
4. Integrated body and aluminum bracket ensures rigidity and non-deformation.Application fields: 1. badge,jade and bowlder;
2. Electronic: Electrocircuit, insulation materials, LED screen,Acrylic processing, family appliance shell and model carving; Technical support:A. We will supply the machine with training video and user' s manual in English for operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone /MSN /ICQ/Skype and so on, when you meet some problems of installation, using or adjusting. B. You can come to our factory for training. We will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipments, all sorts of tools and testing facility. Training Time: 3~5 days C. Our engineer will do a door-to-door instruction training service at your local site. We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch. It' s better to arrange a translator for both of our engineers during the training period. Training Time: 5~7 days
| Model item | JK-3525 | JK-4040 |
| Technical data | Working Area | 350 × 250mm | 400 × 400mm |
| Feeding heigh | 85 mm (120mm optional) |
| Idle speed | 4m/min |
| Processing speed | 4m/min |
| Max. jog feedrate | 10m/min |
| Rotary rate | 6000~24000rpm/min |
| Working voltage | AC220V/50Hz or AC380V/50Hz |
| File forma | G code/HPGL |
| Positioning precision | ± 0.05mm |
| Repeat precision | ± 0.02mm |
| Engraving tool | 3.175/4/6mm |
| Configuration | Standard
construction | Heavy-duty all welded frame |

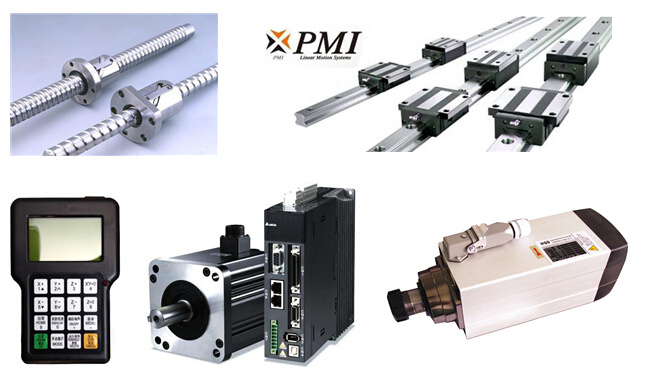

| X/Y axis drive by ball csrew |
| Single Z axis drive by ball csrew |
| PMI Linear square rail |
| Water tank |
| Spindle | Frequency adjustable water cooling spindle( 800w,1.5kw, 2.2kw) |
| Drive system | Stepping Motor and drivers |
| Control system | Copied NC studio controller |
| Lubrication | Manual lubrication |
| Cooling system | Water pump cooling system |
| Optional: | Construction | Air cooling spindle |
|
|
| Drive system | AC Servo Motor: Panasonic / Yaskawa / Maxsine |
| Control system | NC studio PCIMC controll e r / DSP(128M) |
| Cooling system | Industrial cooling system |
| Other equipment | Rotary axis for cylindrical materials |
|
| Prod Model: |
JK3525 / JK4040 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
CNC Engraving Machine |
| Usage: |
Advertising |
| Power: |
Small Power |
| Drive Type: |
Stepper Drive |
| Certification: |
CE, RoHS |
| Control: |
CNC |
| Current: |
DC |
| Condition: |
New |
Hefei Kaxing Digital Control Equipment Co., Ltd. is a high-tech industry enterprise integrating research, development, manufacturing, sale and after-sales service. Our company mainly focuses on manufacturing CNC engravers, laser engravers, mould engravers, cutting plotters and CAD plotters.
The Gold Cut series products of our company have been widely used in woodwork industry, advertisement decoration industry, sign and scutcheon industry, art craft and gifts industry and module industry. With high technique, reliable quality and excellent character, our products have won a good reputation in the world. Our products sell well not only in domestic market, but also in Southeast Asia, Europe, America and Africa.
We follow in "Gold Cut brand, Gold Cut quality and Gold Cut Service" principle to pursue excellent, aggressive and innovative.
