Product Specifications
| Prod Model: |
FCT-1625W-4S |
| Markets: |
North America,Southeast Asia,Mid East |
| Controlling Mode: |
CNC |
| Feed Mode: |
Mechanical |
| Spindle Layout: |
Horizontal |
| Certification: |
CE, ISO |
| Color: |
Customized |
| Condition: |
New |
| Customized: |
Customized |
| Type: |

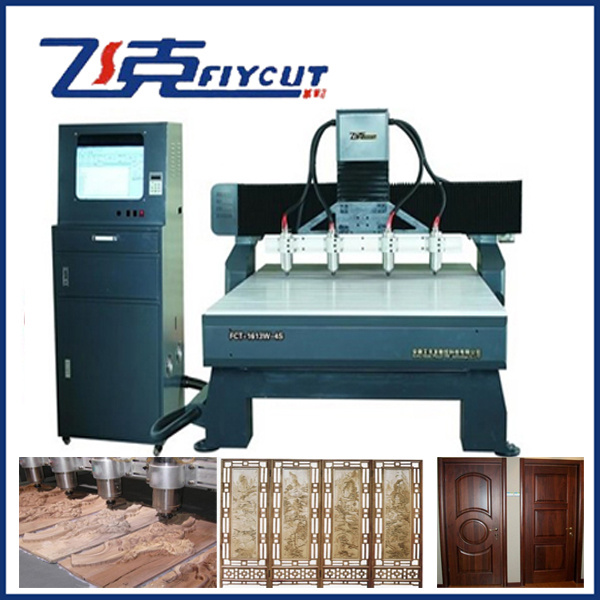

CNC Wood Relief Machine |
| Spindle Number: |
4 |
Product Description
Features:
1.The lathe is founded by industrial pipe welding,box-type structure to ensure the high stability.
2.The special instruments to eliminate welding stress,high precision machining planer ensure the precison and no deformation.
3.The major machine body makes the stability and no shacking in high speed.
4.XYZ all apply imported screw,high precision gear frame and linear square guide ,ensure the high accuracy.
5.The professional mechanical design,scientific structer and generou appearance,gantry height 200MM can ensure Z axis working size.
6.XYZ axis use anti-dust system, prevent dust during working, make sure the long lifespan of spare parts.
7.High quality driver motors, spindle motors, cables, inverters,etc.
8.High quality driver motors, spindle motors, cables, inverters,etc.
Applications:
Widely used in Antique furniture with relief carving, wood carving, furniture-processing, instrument making, 3D light box making, Aluminum composite panel, funding mound decorative doors and windows processing etc.
Special Configuration:
It can be customized more large format and special format models, and it can be optional standard configuration spindle or importing, auto-change tool system, oil lubrication system, vacuum inhaling and dust collect etc.
Technical Parameters:
| Model | FCT-1613W-4S | FCT-1625W-4S | FCT-2013W-6S | FCT-2018W-6S |
| Machine size | 1600×1500mm | 1600×2625MM | 2040×1500mm | 2040×2000mm |
| Working size | 1600×1300×200mm | 1600×2500×200mm | 2000×1300×200mm | 2000×1800×200mm |
| Spindle power | Water cooling 1500W×4 | Water cooling 1500W×4 | Water cooling 800W×6 | Water cooling 800W×6 |
| Spindle rotation | 6000--24000rpm |
| Motor driver | Stepper motor driver (Chinese servo motor and Japan servo motor is optional) |
| TOOL diameter | 3.175, 4, 6mm |
| Machine structure | Industry square tube structure |
| Transmission | TBI ball screw or high accuracy gear rack | High accuracy gear rack |
| XYZ rails | PMI square rails |
| Dust-proof system | XYZ high quality dust cover |
| Mechanical accuracy | <0.03/300mm |
| Engraving speed | 8000mm/min |
| Data transmission | PC-connection directly |
| Support format | G code or HPGL |
| Working voltage | AC220V/50Hz or 380V/50Hz |
| Net weight | 600kg | 1300kg | 1000kg | 1200kg |
If you are not sure which machine you should choose,kindly afford the following information.Suitable machine will be recommend to you.
1) what materials do you want to engrave or cut?
2) what's the max. size of the materials (Length*Width*Thickness)?
