Main indexes of CNC system
Function&Parameter: GK-5
Host computer Industrial: PC
Programmable storage capacity: 80G
Display monitor: 17 inch LCD
Input device: USB, keyboard, cable
Working code: 3B, 4B, ISO
Memory: 32-128M
Language: Chinese&English
Orbiting style: Square/circle
Unit: Metirc/inch
HF working voltage of machine tool: 60-120V
Controlling shaft style: 4 shafts couple move
Min. Control unit: 1um
Max. Control unit: 10m
Output code: 3B, ISO
Control code: ISO
Working current of machine: 4-6A
Width of each pulse: 4-120us
Shape of working voltage: Wave
Form for machine tool: Grouping rectangle
External Dimension: 600X500X1800
Packing Dimension: 800X700X1900
Main index of Machine tool
Accuracy of the Machining: ≥ 0.01mm
Max. Cutting thickness: 400mm
Cutting taper: Z: 12degree/50mm
Cutting speed: > 100(m/min)
Roughness: Ra≤ 1.0um(40m/min)
Line speed of the turningwire bobbin: 0.8~12 m/s
Reverse gap: ≤ 0.005 mm
Advancingdistanceofeach pulse: ≤ 0.001 mm
Accuracy of the repeating position: +_0.001 mm
The main specification of machine tool

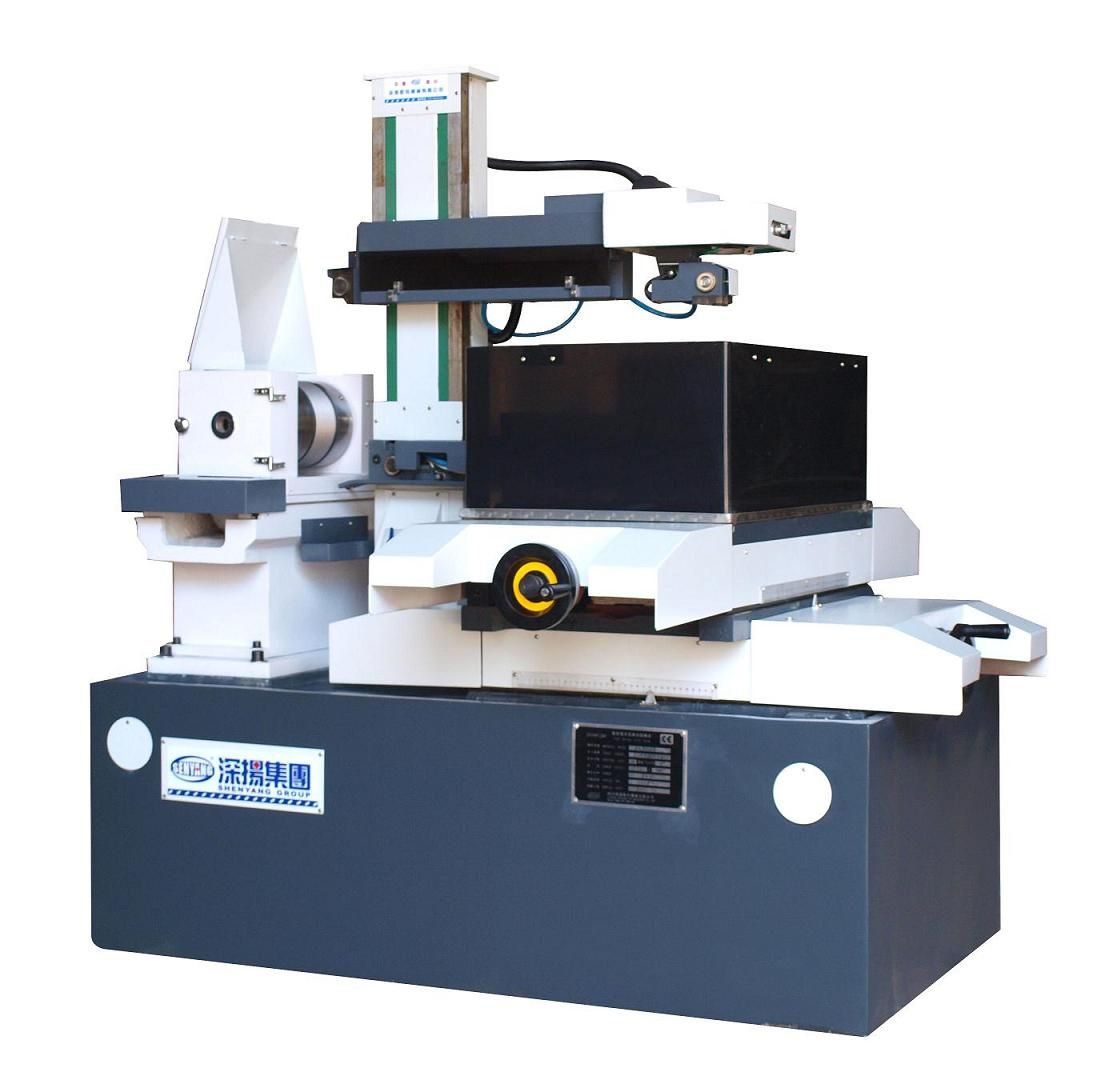

Model & Parameter: DKM280BZ-5
Workt able travel: 280X350 mm/mm
Table loading: 300 kg
Work table(XxY): 670X485 mm/mm
Z-axis travel: 400 mm
Max. Work-piece size(WxDxH): 660X475X400 mm/mm/mm
Diameter of the molybdnum wire: Φ 0.18~0.20 mm
The machine tool power: 1.2kw
Net weight: 1200 kgs
The power supply: 380V/50Hz OR 220V/50Hz
The capacity of work solution: 54.375 L
Water tank shape(WxDxH): 750X290X300 mm/mm/mm
External Dimension(WxDxH): 1510X1110X1715mm/mm/mm
Packing Dimension(WxDxH): 1600X1150X2200 mm/mm/mm
Sichuan Shenyang CNC Machinery Co., Ltd., was established in Chengdu at 1999. And the workshop is in Zigong Jiate CNC Machinery Manufacturing Co., Ltd. The factory covers areas 11600squarmeters. Among of which, the workshop holds 6000squarmeters. Shenyang is known as the biggest "cutting-CNC(computer numerical control) -EDM(electrical discharge machining) machine tool" manufacture base in southwest district of China.
The products as the followings: Intelligent MSWEDM (Medium Speed Wire-cutting Electrical Discharge Machine), forming machine EDM; CNC drilling machine tool; Vertical CNC machining center, etc. The number of yield each year is 1200 sets. Products are broadly used in some important territory such as: Weapons, planes and space flights etc manufactories.
Normally, our products were all passed "ISO 9001" Quality System Certification at 2001 and also the certification of Conformite Europeenne(CE) at 2006.
And, the Intelligent MSWEDM (Medium Speed Wire Electrical Discharge Machine) which known as a new type of machine tool developed through the innovation on the original HSWEDM (High Speed Wire Electrical Discharge Machine) is R&D by our laboratory. We produce new generation of CNC EDM to meet the oversea market requirements. These products has been sold to Syria, Egypt, Vietnam, Thailand, Laos, Iran, Korea and Taiwan, etc countries and district, and won high reputation.
