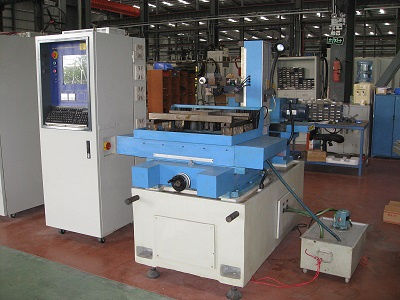

CNC Wire-Cutting Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
1. Product introductionOur product, applying the principle of electrical discharge and processing, electrically erode the conducting material, so as to manufacture. Because it needs no special cutter, usually the molybdenum is used as the implemental electrode to discharge electrical sparks towards work pieces, which automatically move in the fixed track according to the CNC installation or the computer control, and eventually achieve their required forms.2. The main usages of this machine:1) to process various precise mold such as plunger die, complex mold, extruding mold, powder metallurgical mold and plastic mold etc.2) to process all kinds of disk parts such as gears, sprocket wheels and cams etc.3) to process all kinds of precise parts and samples etc.3.Control system feature:This control system consists interactive-drawing programming, processing control
and power source with large power pulse.lMouse drawing, parallel translation, rotate, mirror and gear program-package.Input way: keyboard, U disk, DXF files, G code and 3B files.Output way: color display, printer, U disk.Chinese & English menu.Maximum control range: arc unit 2000mAltering ration processing, circulate processing.Different shapes of top and bottom machining and alter taper cutting.Single direction processing, arbitrary parts processing, reverse direction processingSimulate processingScreen display working course and coordinateKeep processing data for ever.Automatically return to the beginning and taper is automatically reset.If there is short circuit, the machine will automatically return and alarm.If the processing finished, the machine will give an alarm.If there is stop temporally, the machine will give an alarm.Automatically reckon and add time during the processing.During the processing, the machine can program.4. Main specifications of middle speed CNC Wire-cutting Machine| MOEDL | GS3240B |
| Worktable size/mm | 660*450 |
| Travel of table/mm | 320*400 |
| Max.thickness(adjust) | 400 |
| Max taper angle | 6º |
| Range of molybdenum/mm | 0.1-0.2 |
| Max machining speed/m²/min | ≤100 |
| Surface roughness/uRa | ≤1.6 |
| Machine accuracy/mm | 0.015 |
| Max current /A | 5 |
| Power consumption | AC 380V/220 2KW |
| Packing dimension of machine/mm | 1550*1150*1750 |
| Packing weight of machine/kg | 1500 |
| Packing dimension of controller /cm | 850*800*1900 |
| Packing weight of controller/kg | 180 |
| Max weight of work piece/kg | 250 |
5. The Accessories of CNC Wire-cutting Machine- Working clamp : 1set- Waterproof cover : 1set- Handle : 1pce- Wire tighten device : 1pce- Crochet hook: 1pce- Screw driver : 2pcs- Hex wrench : 1set- Oil pot : 1pce- Clyburn spanner : 1pce- Electric conduction alloy : 1set- Tool box : 1pce- Shockproof steel cushion: 4 panel6. Wearing stuffs of CNC Wire-cutting Machine- The front roller 4 pcs- The rear roller 4 pcs - Bearing 20 pcs- Spray group 2 pcs- Rubber collar 2 pcs- Molybdenum wire 2000m (Ø 0,18)- Mightiness magnet 4 pcs- Emulsification soap 2 pcs
| Prod Model: |
GS3240 |
| Markets: |
Eastern Europe,Africa,Mid East,Eastern Asia |
| Table Travel: 250*320mm: |
Maxo Thickness of Workpiece: 400mm |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Movement Method: |
Point to Point Control |
| Control Method: |
Open-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
Economical CNC Machine Tools |
| Processing Precision: |
0.015mm |
