Product Specifications
| Prod Model: |
MJK-1325A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Mjk-1325A |
| Table Area: |
1300*2500mm |
| Operating System: |
Nc-Studio /DSP Control System |
| Driving Type: |
Servo/Stepper Motor and Driver |
| Inverter: |
Taiwan Delta/Fuling |
| Spindle: |
Air Cooling Spindle |
| X,Yaxis Transmission: |
X,Y Helical Rack and Pinion |
| Z Transmission: |
Ball Screw |
| Software: |
Ug,Master Cam,Art Cam,Visual Mill,Type3 |
| Warranty: |
One Year |
| Spindle Layout: |
Vertical |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
SGS |

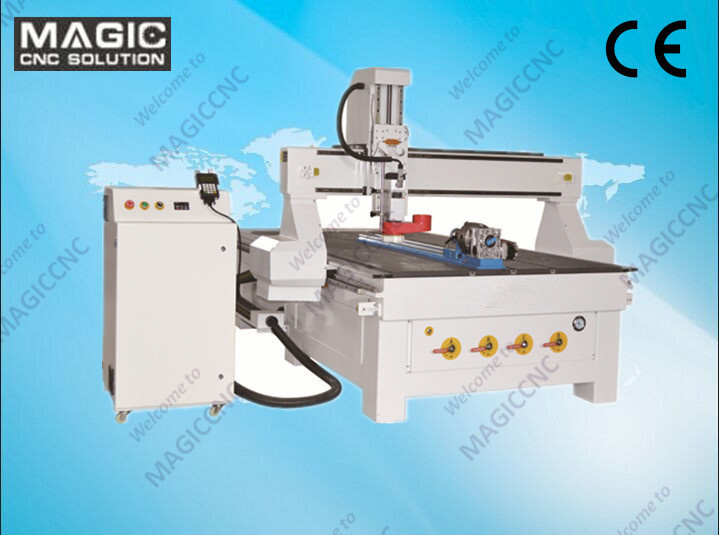

Product Description
1:Main Configuration
Adopt world top class mechanical and electronic components,e.g.
Japanese rack and pinio
Taiwan Hiwin rail and ball screw
French Schneider electrical components
HSD/Chinese air cooling Spindle
Servo/Stepper Motor and driver
NC-studio / DSP Controller
which guarantee stable performance and high quality.
2:Advantages
1: Function-standard CNC router,suitzble for engraving,drilling,cutting,edge chamfering,etc.
2:Construction:Whole machine table adopt high strength thick steel pipe welded.Whole working table cast by resinsand.The annealing and other heat treatment methods ensure that the whole structure is tested to the limit for sturdiness and reliability.
3:Precision:Excellent spare parts,delicate detection instrument,which make sure the machine with perfect location and working precision.
4:High-speed:High torque,high-energy,Y-axis dual motor drive,runs smoothly with high efficiency.
5:Table:Vacuum table using high-density (1.3-1.45g/cm) material with great suction strength, comfortably accommodating all sizes of work piece.
6:High-performance all-round machinery with extraordinary value, but at a very economical price. Constructed with world-class components, consistent high performance.
3:Application
1:Furniture:ideally suitable for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.
2:Other wooden products: stereo box, computer desk, musical instruments, etc.
3:Well-suited for processing panel, insulating materials, plastic, epoxy resin, carbon mixed compound, etc.
4:Decoration: acrylic, PVC, density board, artificial stone, organic glass, soft metals like aluminum and copper, etc.l stone, graphite, PVC, EPS, soft metals like aluminum and copper and other non-metal carbon mixed compound,etc.
4:Technical Parameter
| MJK-ASeries | MJK-1325 | MJK-1530 | MJK-2040 |
| Table Area | 1300*2500mm | 1500*3000mm | 2000*4000mm |
| Traveling Area | 1320*2540*250mm | 1625*3150*250mm | 2100*4100*250mm |
| Travelling Speed | 20m/min | 20m/min | 20m/min |
| Working Speed | 10m/min | 10m/min | 10m/min |
| Spindle Power | 3.5/4.5/6kw | 3.5/4.5/6kw | 3.5/4.5/6kw |
| Spindle Speed | 18000r/min | 18000r/min | 18000r/min |
| Working Voltage | AC380V/AC220V/3PH/50HZ | AC380V/AC220V/3PH/50HZ | AC380V/AC220V/3PH/50HZ |
| Driving System | Stepper motor/Servo motor | Stepper motor/Servo motor | Stepper motor/Servo motor |
| Controller | NC-Studio/DSP | NC-Studio/DSP | NC-Studio/DSP |
| Software | UG,Master Cam,Art Cam,Visual Mill,Type3,Vetric Pro |
| Table Structure | T-slot vacuum/T-slot/Vacuum | T-slot vacuum/T-slot/Vacuum | T-slot vacuum/T-slot/Vacuum |
| Optional | Multi-operation/Automatic loading&unloading system
Partition table/Vacuum pump,C Axis |
|
All of these models can be customized according to customer requirements.
5:Process
6:Guarantee and after sale service
Warrantly
In the processing of production,our professional technical engineers inspect the processing to ensure the quality of products.Every machine must be tested before delivery for 8 hours.
After sale service
1:12 months guarantee of the whole machine,
2: Main parts(excluding the consumables and the person damaged) shall be changed free of charge if there is any problem during the warranty period, we will provide the consumable parts at an agency price when you need replacement.
3:Software is on update for free whole life.
4: Our engineer could service you 24 hours online by Skype, msn, QQ, or by cellphone.
5:Our engineer could support you technology to your country if necessary.
6:We will send the English manual and CD video for machine using and maintaining to you with the machine
7:Exhibition in whole world
We participated in many international exhibitions, for example: Shanghai Exposition, Beijing Exhibition, Munich Exposition in Germany, etc.
8:Certification of Machine
Our products has gained CE authentication.
9:FAQ
1. Q: Are you a factory or trading company? Can you introduce your company?
A: We are a factory
Jinan Magic CNC Technology Co.,Ltd is specialized in R &D ,producing CNC router, adverting engraving machine,stone engraving machine,craft engraving machine,multi-head engraving machine.which is leader in the domestic and foreign CNC industry.our product have got CE certificate.
Our machine is mainly equips with Italy,Japanese and Germany original imported parts,it is widely used in wood engraving,metal carving,stone engraving,mold engraving,advertisement engraving,craft,textile leather, package printing, etc industry.
Business philosophy:
Advanced technology- modern CNC laboratory and workshop,
Quality assurance: ISO 9001 quality control system, monitor each production step.choose outstanding person to join our team every year
Good service: carry out better service and resolve customer feedback in time.
Culture feature:create top class quality,top class service, good reputation.customer requirement and recognition is our improving power
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Jinan City, Shandong Province, China, about 4 hours train from Shanghai.
All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: How can I get some samples?
A: We are honored to offer you samples.
4. Q: How does your factory do regarding quality control?
A: Quality is priority. JQ people always attach great importance to quality controlling
From the very beginning to the very end.
Our products has gained CE authentication.
