Product Specifications
| Prod Model: |
ER70S-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
0.8mm 1.0mm 1.2mm |
| Weight: |
15kg 20kg |
| Type: |
Rolling Wire |
| Flux Containing: |
Not Containing Flux |
| Material: |
Copper / Copper Alloy |
| Extended Length: |
500-2000m |
Product Description
Item specification:
Model Number: AWS 5.18 ER70S-6
Diameter: 0.8mm/1.0mm/1.2mm
Weight: 5kg/15kg/20kg
Shielded gas: Ar+CO2 or 100% CO2
Surface: Copper coated
Sample: Free
OEM: Offered
MOQ: 22 Metric TON (one 20' container)
Supply Ability: 1000 Tons per Month
Packaging &Delivery& Payment
Packaging Detail: Packing 15kg/spool net weight (white &black spool), then sticker on the spool to indicate the size and weight, then anti-rust paper wrap around, then heat-shrinked film tightly seal, then carton box. 6 layers per pallet, one layer has 12 cartons, so for a pallet it has 72 cartons.
Delivery Time: Within 15 days after pre-payment in advance
Payment Term: 30% pre-payment by T/T, and 70% balance by receiving the copy of B/L; Or L/C at sight.
Specifications
Diameter of wire& reference current(DC+)
| Diameter of wire (mm) | Ø0.8 | Ø 1.0 | Ø 1.2 | Ø 1.6 |
| Current (A) | 40-140 | 70-250 | 80-350 | 170-550 |
| Arc voltage(V) | 16-21 | 17-27 | 18-30 | 23-43 |
Chemical composition of welding wire: (%)
| | C | Mn | Si | S | P | Cu |
| Standard value | 0.06-0.15 | 1.40-1.85 | 0.80-1.15 | ≤0.035 | ≤0.025 | ≤ 0.50 |
| Sample value | 0.08 | 1.51 | 0.92 | 0.020 | 0.016 | 0.20 |
Chemical composition of deposited matal: (%)
| C | Mn | Si | S | P | Cu |
| 0.07 | 1.27 | 0.76 | 0.014 | 0.015 | 0.15 |
Mechanical properties of deposited metal:
| | Tensile strength
Δb (MPa) | Yield Point
Δ0.2(MPa) | Elongation
Δ5 (%) | AKV Impact Value
(J) (-30°C) | Shielding gas |
| Standard value | ≥ 500 | ≥ 420 | ≥ 22 | ≥ 27 | CO2 |
| Typical value | 558 | 472 | 27 | 98 | CO2 |
Advantage:
1. Direct factory supply with high quality and competitive price.
2. Factory guaranteed quality and original only.
3. Certification: ISO 9001
4. Can accept small trial order.
5. Delivery time flexible and pretty fast.
6. Free sample (or any sample cost can be compensated via first order)
7. Professional international service.
8. OEM strictly according to customer's package design requirement.

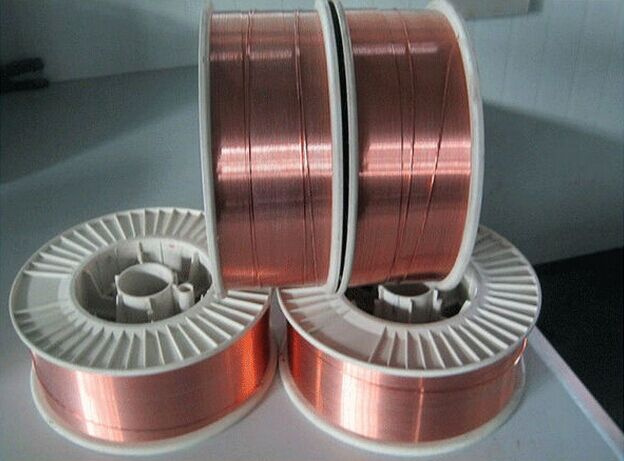

Factory sale ER70S-6 CO2 gas shielded welding wire
>>>>>>>>>Ms. Echo
Mobile: 86-13792010052
TEL: 86-0633-3886880
TAX: 86-0633-3886880
Shandong Jinxu Welding Material Co., Ltd. Was founded in 2000, integrating R&D and sale. Our company covers an area of 36, 600 square meters.
Our production capacity amounts to 15, 000tons per year. We conduct strict quality inspection over each batch/product. The technical engineers have many years of experience in the welding wire industry, and most of the operators are skilled in operation.
We will try our best to serve you and hope to become one of your friends and business partners.
