Product Specifications
| Prod Model: |
HK-1045 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pressure Endurance Of Oxygen Bomb: |
20 MPa |
| Temperature Measurement Range: |
10 °c~35 °c |
| Data Saved: |
31 Pieces |
| Ambient Temperature: |
20±5 °c |
Product Description

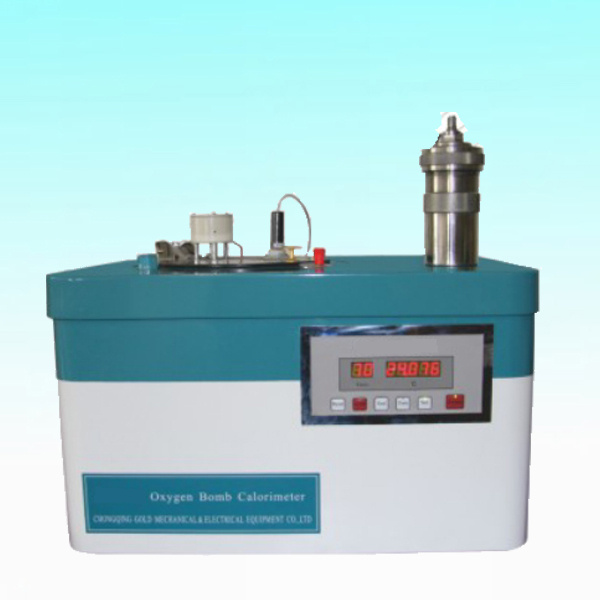

Coal Calorific Value Oxygen Bomb Calorimeter
Introduction:
HK-1045 ASTM D240 Oxygen Bomb Calorimeter is designed and made as per national standards of People's Republic of China GB/T213-2008 Test Method for Calorific Value of coal, GB/T384-1988 Test Method for Calorific Value of Petroleum Products and Calibration Regulation of People's Republic of China JJG672-2001 Oxygen Bomb Calorimeter, as well as Shanghai enterprise standard Q/YXYY 10 XRY Series Oxygen Bomb Calorimeter.
The heat capacity of HK-1045 Oxygen Bomb Calorimeter is 14400 J/K~14500 J/K, and it is suitable to determine calorific value of combustible materials such as petroleum products without water (gasoline, jet fuels, diesel oil and fuel oils, etc.), coal, coke and paraffin, etc.
Main Technical Features:
1.HK-1045 Oxygen Bomb Calorimeter adopts sealed oxygen bomb. The whole structure adopts stainless steel material. The strength is enough to resist the max pressure (60~70 atmospheric pressure) when the solid burning. And it can resist the bigger pressure when liquid fuel burning.
2. The inner water cylinder is composed of stainless steel sheet.The cross section is pyriform and the capacity is 3kg. The water cylinder is equipped with electric stirrer inside. It ensures the temperature in the water cylinder uniform.
3. The external water jacket is double layer container. It filled with water when doing determination.It make the water temperature in the cylinder uniform by water jacket stirrer and form the constant temperature environment meeting the requirements of test.
| 1 | Heat capacity | 14400 J/K~14500 J/K |
| 2 | Resolution | 0.001 K |
| 3 | Measurement accuracy | ± 60J/g |
| 4 | Repeatability | ≤0.2% (Grade C) |
| 5 | Pressure endurance of oxygen bomb | 20 MPa |
| 6 | Temperature measurement range | 10 °C~35 °C |
| 7 | Ambient temperature | 20±5 °C, the fluctuation is not more than 1°C during a test |
| 8 | Data saved | 31 pieces |
| 9 | Relative humidity | ≤85% |
| 10 | Power supply | AC 220V±5%, 50 Hz |
| 11 | Dimension | 600mm×460mm×430mm |
Liaoning Huake Petroleum Apparatus Science & Technology Co., Ltd., formerly named as Shenyang Weigong Glass Meter Plant, is a high-tech enterprise which is integrated with research, manufacture and trade. With the reform of internal management system, a new company, Shenyang Huake Petroleum Analyzing Apparatus Co., Ltd., was established on the basis of several years of management and some business segments with registered capital of RMB three million yuan. The company was certified by ISO9001: 2000 "Quality Management System" and the quality management meets the requirements of GB/T19001-2000.
The company is engaged in research, development and manufacture of various liquid-in-glass thermometers, glass floating meter (densitometer), glass test apparatus for petrochemical industry and test apparatus & instrument for petrochemical industry in accordance with standard of GB/T, SH/T and ASTM. Our products were not only sold to various markets in China, but also launched into the markets in Russia, Germany, France and South Korea.
The company is specialized in manufacturing liquid-in-glass thermometer, glass floating meter (densitometer) and glass apparatus for petrochemical industry, with over twenty years of operating experiences. Our workers and technicians are experienced, and we have a complete range of check and inspection equipments. Our products are steady and reliable with high quality. The liquid-in-glass thermometers are produced, calibrated and checked up by products standards. The glass floating meters are produced, calibrated and checked up by products standards. The staff gauge is controlled for printing by computers, and the printed gauge is precise and clear.
We sincerely hope to cooperate with comrades and friends in the long run to realize common development.
Our philosophy is:
Development Depends on Progress in Science and Technology, Subsistence Relies on Quality.
