Product Specifications
| Prod Model: |
CT2013FN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Car Coating Thickness Gauge: |
Measuring The Coating Thickness of Gauge |
| Type: |
Surface Plate |
Product Description

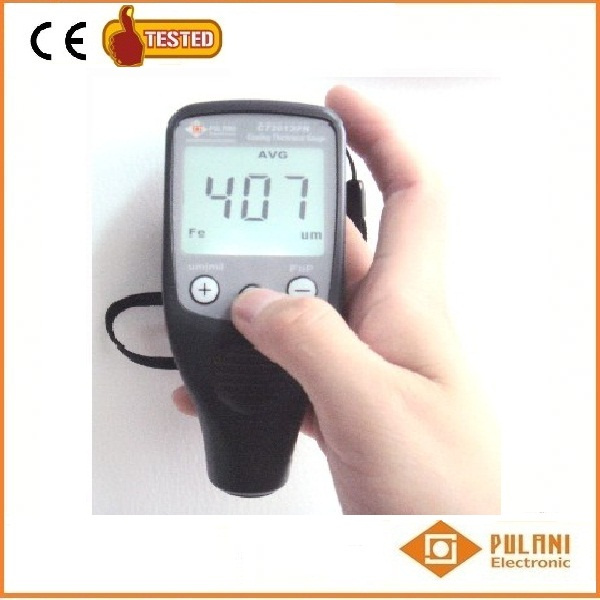

Introduction:
The instruments is superminiature tester, which can be quick and accurate to measure coating thickness(such as: Paint, powder coating, plastic, porcelain) on ferrous metal substrate(such as: Iron, steel, etc. ) or non-ferrous metal substrate (such as: Aluminum, copper, Zinc, etc. )without causing any damage. It is widely used in manufacturing, metal processing, chemical industry, commercial inspection, etc.
Basic Specification:
Model No.:
CT2013FN
Thickness gauge meter Color:
Gray, Orange
Thickness gauge meter Probes:
Built-in N probe & NF probe
Thickness gauge meter Metric/ Imperial:
Convertible
Thickness gauge meter Operating Principle:
Magnetic induction and eddy current (F & NF)
Thickness gauge meter Resolution:
0.1µ M (< 100µ M) or 1µ M(> 100µ M), 0.1um (0~99.9um), 1um (over 100um)
Thickness gauge meter Measuring Range:
0-1500um/0-60mil
Thickness gauge meter Display:
Digits, LCD
Thickness gauge meter Accuracy:
± (1-3%H± 3µ M)
Thickness gauge meter Operating conditions:
Temperature: 0~40° C, Humidity: < 80%
Thickness gauge meter Battery:
2 X AAA batteries, rechargeable batteries can also be used
Thickness gauge meter Size:
120*55*40mm
Additional Info.:
Trademark:
PULANI
Metal thickness meter Packing:
To Order
Metal thickness meter Operating Temperature: 0 to 40° C
Metal thickness meter Relative Humidity: 0 to 80%
Metal thickness meter Origin: China
Basic Functions:
1. Auto recognize the substrate of Ferrous or Non-Ferrous
2. Auto switch on by place the the probe on a surface
3. With automatic shutdown function
4. Flip display
5. Metric/imperial system selectable
6. Store up to 20 of the latest data, analyzed the MAX. MIN. AVG.
7. Historical data are clearable, restore factory settings
8. Three different calibration, Zero Calibration, Two Point Calibration and Multi-point calibration
9. LCD Backlight
10. Low voltage indicator
Application:
1. Construction: A. Aluminum
B. Aluminum veneer
C. Metal ceiling
D. Metal curtain
E. Metal doors and windows
F. Steel
2. Vehicle Equipment: A. Motor vehicles and parts
B. Rail locomotives and spare parts
C. Bike (electric vehicles) and parts
D. Stroller and parts
E. Recreational sports vehicles and parts
F. Agricultural machinery and spare parts
G. Engineering machinery and spare parts
3. Home: A. Solar water heater
B. Bathroom Hardware
C. Kitchen Hardware
D. Indoor metal furniture
E. Outdoor leisure furniture
Package: 5 PCS gauges you received are with sample package. Now there are 2 types of regular package:
(1) 1 complete set of gauge package: 1 PCS gauge, 1 set calibration, 1 instruction, 1 black glasses box.
(2) 5 complete sets of gauge package: 5 PCS gauge, 5 sets calibration, 5 instructions, 5 black glasses boxes, 1 white carton box whose outside is with the color cover.
Stickers: We have 3 kinds of color stickers.
Note: We have own post-doctoral R&D center, we can develop electronic products according to customers' request!
Our main products: Coating thickness gauge, TPMS, GSM home alarm, any interest, welcome to feel free to contact us.
Our coating thickness gauge CT2013FN can be customized depending on order quantity.
