Product Specifications
| Prod Model: |
KJX-BC03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Hospital Elevator |
| Certification: |
ISO,SGS |
| Warranty: |
18 Months After Shipment Date |
| Driving Type: |
AC Elevator |
| Capacity: |
500-1000kg |
| Persons: |
6 - 10 |
| Speed: |
1.00 - 2.00m/s |
Product Description

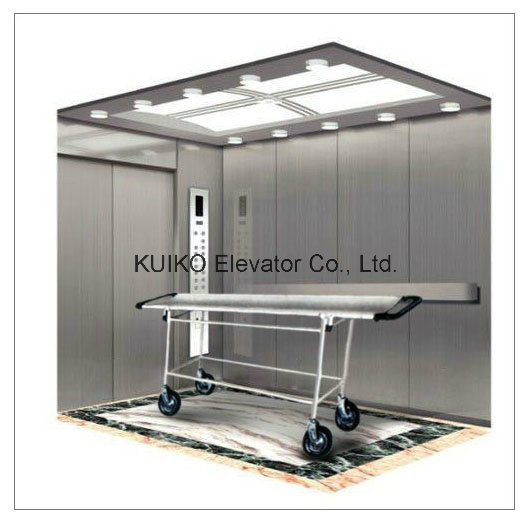

KUIKO elevator hospital elevator series are vertical lift designed specifically for hospital. Its large space which can easily fit into hospital emergency beds fast and fully solve the busy traffic problems of hopsital buildings, providing green resue channel for life.
Product description:
Ceiling: KDD-03 hairline stainless steel frame, Acrylic
Control Box: KCZ-01 with disabled C. O. P
Cabin Wall: Hairline stainless steel with three side walls, middle with mirror hairline steel
Front board: Hairline stainless steel
Lintel: Mirror stainless steel
Sedan gate: Mirror stainless steel
Arm rest: KFS-03 one set at each three side wall
Floor: PVC, type KDB-07
Our Superiority:
More Safety: Better infra-red multi-beam screen detector
As for general elevator, when the elevator is going to close, some of the passengers at this time to enter, may be clipped, but our company has a better safety light curtains, more intensive, so it is more safe.
More Humanization: Humanized design, comfort and natural
The car can be decorated with different design according to the different needs of users, for example install more armrests, multi-select control system, more beautiful luxury floor and so on, so that passengers have a comfortable feeling while riding.
More Greenization: High efficiency and up to 40% energy saving.
We choose rare earth material and fully combine coaxial transmission technology and digital variable frequency technology with group computer combined control technology. With less running cost & less energy dissipated. Compared with the ordinary and traditional technology, gearless traction machine can save more than 30% of the energy. Gearless traction machine needs no renewal of lubricant. Without grease pollution, low noise, quiet & natural.
Enterprise Prospect:
We will devote ourselves to build KUIKO elevator as a global manufacturer of high-quality elevator and to make it rank among the world's leading elevator companies!
Choose us, we promise your choice is very right!
Person
/
capacity
| Net size of car
AAxBB
(mm) | Square of car (m 2 ) | Net width of door JJ (mm) | Depth of door (mm) | Hoistway size
AHxBH
(mm) | Rate Speed V(m/s) | Height of door HH(mm) | P.H PD(mm)
| Overhead height OH(mm)
| MR.H (mm) |
| 21/1600 | 1400X2400 | 3.44 | Side open 1100 | 1300 | 2300X2900 | 1.0 | 2100 | 1500 | 4300 | 2500 |
| 1.5 | 1600 | 4400 |
| 1.75 | 1700 | 4500 |
| 21/1600 | 1400X2400 | 3.44 | Central open 1100 | 1300 | 2500X2900 | 1.0 | 1500 | 4300 |
| 1.5 | 1600 | 4400 |
| 1.75 | 1700 | 4500 |
KUIKO Elevator Co., Ltd. is a specialized enterprise focusing on manufacturing fast elevator. It is located in Hangzhou city, Zhejiang, China, just 15 minute away from Hangzhou airport. Its factory covers an area of, with more than 80 sets of advanced equipment including Germany TRUMPF laser cutting machine, multi-station CNC punching, Japanes OTC robot automatic welding machine, CNC bending machine, German laser cutting machine, door systems production line, the car production line, control systems production line and etc. And its annul production capacity reaches 20, 000 elevators. We KUIKO will provide best quality and good price from you from USD$11000 to USD$16000. Main safety parts are from highest quality companies in world. The goal of KUIKO elevator is "superior quality, reasonable price, punctual shipment and good service"
