Product Specifications
| Prod Model: |
LWY-CH225 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
30-Year Limited Warranty |
| Lifespan: |
30 Years |
| Legitimacy: |
Under The Scrutiny of Sat |
| Charity Drive: |
Large Amount Social Donation |
| Engineering Resource: |
10 Architect Squad |
| Building Code Adaptability: |
Suited for Local Building Code |
| Technical Innovation: |
Green Technology |
| Testimonial: |
"Amazing Experience Working with Longwanyuan" |
| Fireproof Performance: |
I Class |
| Ceiling Deflectiion: |
No More Than L/360 |
| Material: |
Steel Structure |
| Usage: |
Temporary Offices |
| Certification: |
BV |
| Customized: |
Customized |
Product Description

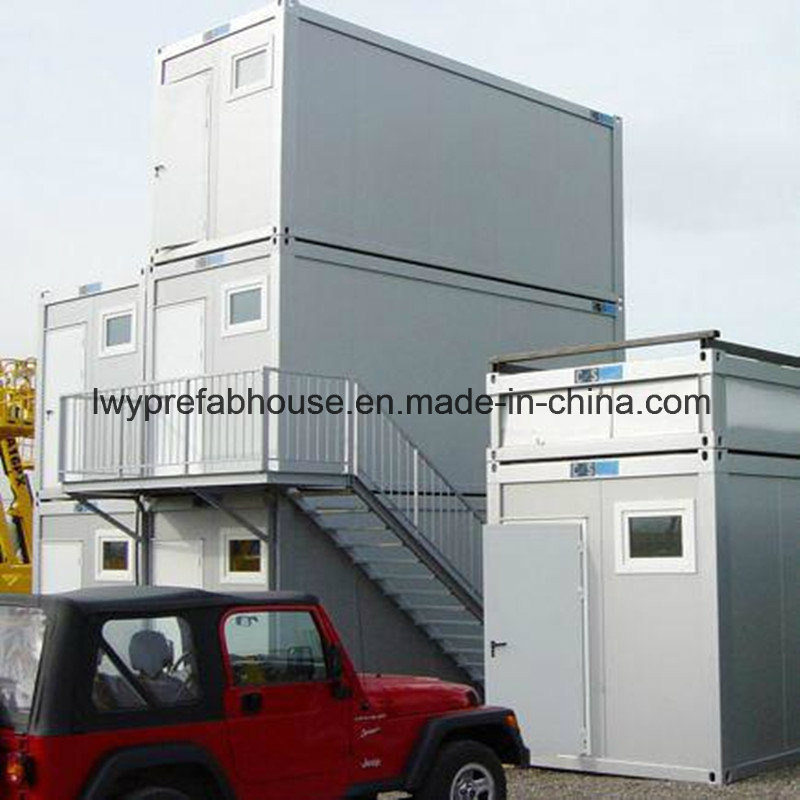

Commercial Accommodation Panelized Container Building(LWY-CH225)
Feature
You can use these kind of containers mostly on construction and residential sites, for a temporary space, site offices, accommodation, canteen, magazine, sanitation...Or commerical apartment/motel
Whether you prefer a ground-level or multi-storey space solution, with our construction containers type STANDARD you got the flexibility to expand or reduce your site containers at any time.
Both series are available in different predetermined lengths and heights, and also in special sizes according to specific projects of investors.
FLAT PACK containers house are intended for use in distant locations are FLAT PACK container house in reduced transport dimensions. When compared to standard container house, FLAT PACK container house offer up to 4 times less transport space. The time for mountage on location (two persons ) is approximately 45 minutes.
As for 1 flat pack container house, its technical parameters are shown followed:
I. ISO standard dimensions of 20 feet STANDARD flat pack containers - optionally 10 up to 30 feet
Lenght = 6.058 mm (optionally 3.048 - 9.100 mm)
Width = 2.438 mm (optionally 3.000 mm)
Exterior height = 2.591 mm (optionally 2.791 mm or 3100 mm)
Inner height = 2.300 mm (optionally 2.500 mm or 2800 mm)
II. Standard container painting
Option: On customer wish in RAL color
Option: Painted on customer wish in RAL color
III. Container floors:
ZINCED STEEL PLATE COVER 0.6mm; 100mm MINERAL WOOL; STEEL 40*80mm; PVC foil vapour barrier; Enriched white chipboard 10mm
IV. Container floor opening for forklift
Without forklift pockets
Option: With forklift pockets for containers up to 7.335 mm
Holes distance 1.506mm
V. Container roof construction
1.5mm VINYL DRESSING; 19mm OSB board; PU PANEL 50 mm; RIB
LAMINATE OR CHERAMIC TILES; PU PANEL 50 mm; RIB
VI. Container exterior wall and side panels
50 mm poliurethane panel, externally microcorrugated RAL 9002
Internally smooth RAL 9010 (white)
Option: 60 mm mineral wool, bothside plastificated in RAL 9002
Option: 60 mm mineral wool, bothside plastificated in RAL 9002,
Internally enriched chipboard 100 WHITE010 (white)
Option: 80 mm poliurethane panel, bothside plasticated steel plate RAL 9010 (white)
Option: 100 mm poliurethane panel, bothside plasticated steel plate RAL 9010 (white)
Option: 100 mm mineral wool, bothside plasticated steel plate RAL 9010 (white)
Option: 120 mm mineral wool, bothside plasticated steel plate RAL 9010 (white)
VII. Container exterior and inner walls
PVC with polyurethane filling 40 mm, clear opening 79/202 cm
VIII...Container windows and doors
Option: Windows without shutters
Option: Windows with shutters
IX. Container isolation, coefficient of thermal resistance
Floor - U = 0, 37 W / m2k
Roof - U = 0, 39 W /m2k
Wall panels - U = 0, 41 W /m2k
Windows - U = 2, 40 W / m2k
X. Container construction difference
ZINCED metal profyles 3 mm connected with scres
|
Item |
Option |
|
size |
optionally 10 up to 30 feet
lenght = 6.058 mm (optionally 3.048 - 9.100 mm)
width = 2.438 mm (optionally 3.000 mm)
exterior height = 2.591 mm (optionally 2.791 mm or 3100 mm)
inner height = 2.300 mm (optionally 2.500 mm or 2800 mm) |
|
painting |
on customer wish in RAL color |
option: painted on customer wish in RAL color |
|
container floors |
1.5mm VINYL DRESSING;19mm OSB board;PU PANEL 50 mm;RIB |
LAMINATE OR CHERAMIC TILES;PU PANEL 50 mm;RIB |
|
container roof construction |
50+40mm PU PANEL |
ZINCED STEEL PLATE COVER 0.6mm;100mm MINERAL WOOL;STEEL 40*80mm;PVC foil vapour barrier;Enriched white chipboard 10mm |
|
container exterior wall and side panels |
container exterior wall and side panels
50 mm poliurethane panel, externally microcorrugated RAL 9002
internally smooth RAL 9010 (white) |
option: 60 mm mineral wool, bothside plastificated in RAL 9002
option: 60 mm mineral wool, bothside plastificated in RAL 9002, internally enriched chipboard 100 WHITE010 (white)
option: 80 mm poliurethane panel, bothside plasticated steel plate RAL 9010 (white)
option: 100 mm poliurethane panel, bothside plasticated steel plate RAL 9010 (white)
option: 100 mm mineral wool, bothside plasticated steel plate RAL 9010 (white)
option: 120 mm mineral wool, bothside plasticated steel plate RAL 9010 (white) |
|
container exterior and inner walls |
container exterior and inner walls
PVC with polyurethane filling 40 mm, clear opening 79/202 cm |
|
container window and doors |
windows without shutters |
windows with shutters |
|
container isolation,coefficient of thermal resistance |
floor - U = 0,37 W / m2k
roof - U = 0,39 W /m2k
wall panels - U = 0,41 W /m2k
windows - U = 2,40 W / m2k |
container floor opening for forklift |
without forklift pockets |
option: with forklift pockets for containers up to 7.335 mm
holes distance 1.506mm |
