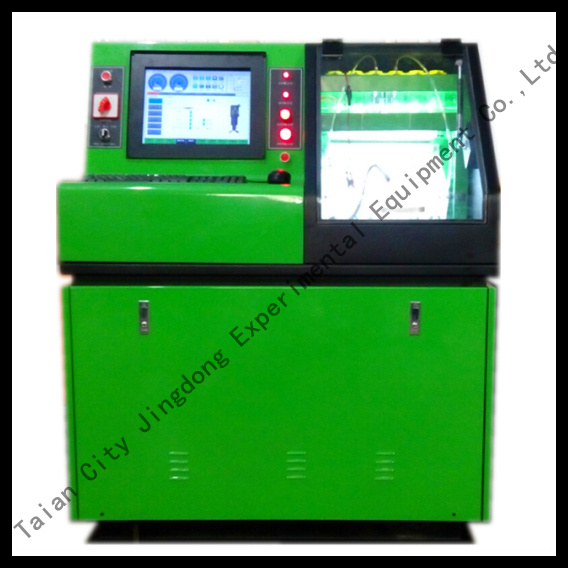

JD-CRS100 common rail test bench
We are manufacturer(located in production base Taian city shandong, china), we can offer the product with high quality and competitive price!
Characters
1. Variable frequency drive common rail oil pump produced the greatest pressure 250mpa
2. Rail pressure automatic loop control, shows the accuracy is 0.1mpa
3. Built-in common rail injector standard database, users can also automatically add data
4. Common rail injector standard database equipped with various types of wave data, output standard waveform signal to injector
5. Can detect the BOSCH, DENSO, DELPHI, SIEMENS, and so on each brand high pressure common rail injector
6. Industrial computer motherboard, embedded windows XP operating system
7. Injection quantity and back to the amount of oil to be automatic measurement, screens display
8. It can create a test data report, to be able to store and print (optional)
Functions
1. start oil testing
2. detection common rail injector open pressure
3. detection common rail injector sealing
4. detection common rail injector idling process
5detection common rail injector fuel load conditions
6. detection common rail injector starting conditions
7. detection common rail injector predict jetting conditions
8. detection common rail injector high pressure washing function
9. detection common rail injector automatic quality
10. clearing common rail injector
Parameters
1. DC output voltage adjustable
2. Digital tube display: speed, oil temperature
3. Cylinder: 45ml/set
4. Fuel tank capacity: 60L
5. Automatic temperature control: 40+/-2ºC
6. Testing oil filtering accuracy: 5µ
7. Speed adjustable: 0-3000rpm
8. Common rail high pressure: 0-250mpa
9. Power: 380v/50hz
10. Center height: 125mm
11. Flywheel inertia: 0.8kgm²
12. Net size: long*width*height1520*810*1600
13. Net weight: 480kg
14. Output power: 5.5kw
15. Rail pressure: 0-1800bar
16. High pressure pump oil supply: 0.2-9L/MIN
17. Injector oil supply: 0-200cc/min
