Specifications:
1) Voltage: 24VDC or 12VDC
2) Capacity: 250N /500N/750N
3) Max Speed: 15mm/s
4) Stroke: 50mm ~ 650mm
5) Type of duty: 10% or 2 minutes continuous use followed by 18 minutes not in use
6) Protection class: IP54/IP65
7) Built-in limit switches, not adjustable after leave factory
8) Certification: CE, RoHS
Features:
1) Powder Coated Steel Outer Tube
2) Lubrication for life time
3) Aluminum extension and outer tubes
4) Enhanced Corrosion Resistance
5) Powder Coated Aluminum Alloy Housing
Quality Guarantee
We provide 2 year warranty for JDR Linear Actuators.
We provide spare parts free or replace a new one on condition that there is any breakdown with convincing evidence.
Maintenance service
No matter what brands of your linear actuators, no matter where your linear actuators are from, full way service and technical Support could be supplied by JDR.
JDR QC Team
JDR QC team consists of more than 10 professional people to ensure 100% products high quality.
Contact Us
We highly appreciate your any enquiry by email, by fax or by Instant message.
We will reply your email or fax within 18 hours.
Please feel free to call us at any time if there is any question.
Transportation
All available shipping ways could be applied, by courier, by air or by sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you before the goods arrive.
We have a wide range of Linear Actuator and Linear Motor for worldwide customer.
Name: |

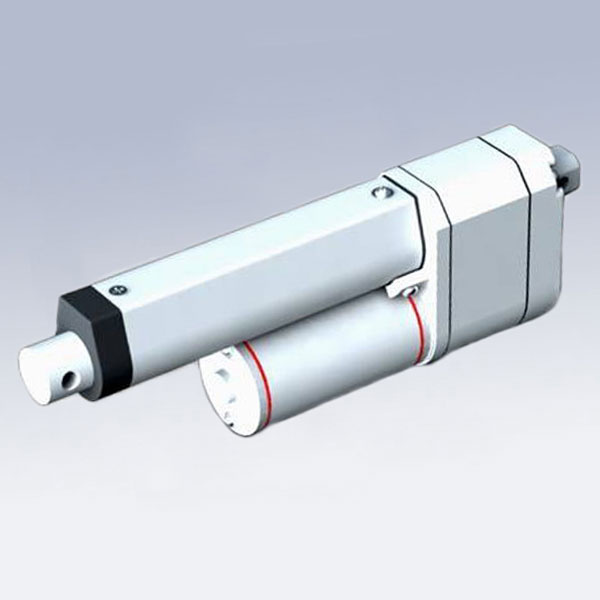

Industrial Linear Actuator |
Model: |
FY017 |
Usage: |
Electric Window, Skylight Canopy, other Application use |
Input Voltage: |
12v or 24v DC |
Load Capacity: |
750N |
Free Load Speed: |
40mm/s |
Standard Stroke: |
120mm |
Installation Dimension: |
100 --- 330mm |
Type of Duty: |
S2 -- 10 min (2 minutes work, 18 minutes rest) |
Limit Switch: |
Builtin / Inner (can not be adjust after left factory) |
Work Temp.: |
-26 to 65 centigrade |
Protection Grade: |
IP54, IP65 |
Certificate: |
CE / EMC + LVD, RoHS |
Control Box Used: |
Control 1 Linear Actuator: FYK011-1, FYK012-1, FYK015-1, FYK016-1, FYK017A |
Control 2 Linear Actuators: FYK011-2, FYK012-2, FYK015-2, FYK016-2 |
Control 3 Linear Actuators: FYK011-3, FYK012-3, FYK016-3 |
Control 4 Linear Actuators: FYK012-4, FYK016-4 |
Control 5 Linear Actuators: FYK012-5, FYK016-5 |
Control 6 Linear Actuators: FYK016-6 |
Handset Used: |
All FYH Series Handset, Pls contact us for detail pictures. |
Wuxi JDR Automation Equipment Co., Ltd, established in 2008, . Is a professional manufacturer and trading unit integrating the research, production and marketing of DC linear actuator. JDR's predecessor is Wuxi Feiya Electronical Equipment Co., Ltd, which was established in 2004.
Our company owns several automatic production lines and enough experience in the production and research of linear actuators and controllers. Our products are popularized in many occasions when need to be implemented with rectilinear motion such as electrical nursing beds, operational beds, traction beds, massage chairs, dental chairs, electrical sofas and show-cases. These products can adjust heights, move between front and behind, as well as angle change, which take the place of gas springs as well as AC decelerators.
Dreams drive science, technology creates life. Based on domestic market and aiming at overseas market, JDR has gradually started to establish perfect marketing net both at home and abroad.
"Quality First, Customer Paramount" is our established guidelines. "Based on honesty, providing high quality products and innovative service, striving after perfection" is our management concept.
With over 80 people's efforts, JDR is becoming better and better. We have sound management system and very low stuff turnover, and every department cooperate greatly.
Now, we have successful foreign trading experience in South Europe, West Europe, North Europe, North America, South America, Middle East and Southeast Asia.
We, Wuxi JDR, sincerely welcome your advices, suggestions and inquiries.
