Product Specifications
| Prod Model: |
PPS-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: AC 18V: |
Regulated Output Voltage: 48V +/- 2V DC |
| Short Circuit Output Current: 14mA: |
Frequency Response: 10Hz ~ 25k Hz |
| AC Input: AC 18V: |
Jack: Male and Female XLR Jack |
Product Description

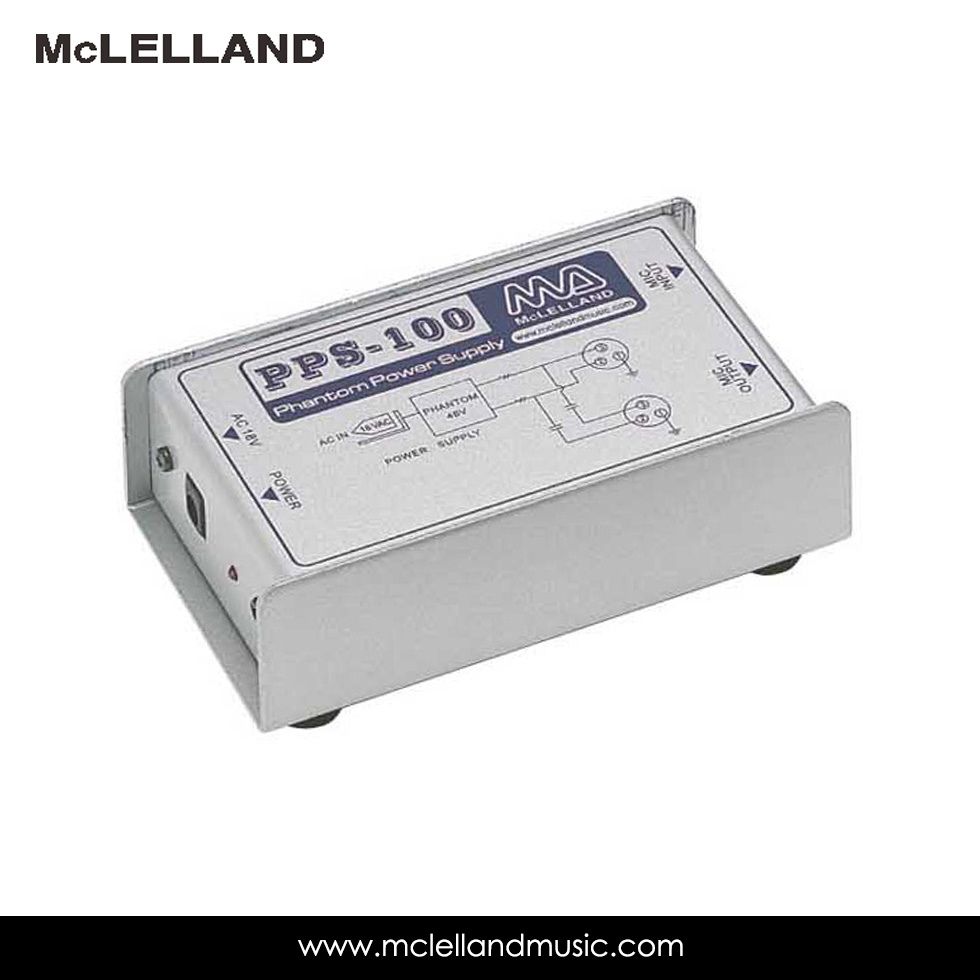

Phantom Power Supply(PPS-100)
Different condenser microphones specify different amounts of required phantom power. As a rule these ratings can range from 48 volts all the way down to 9 volts. Fortunately there is some flexibility in terms of matching phantom voltage to your mic.
Features:
Single Channel +48V Phantom power supplier for Condenser Mic
Special regulator IC prevent damage or overheating from power shorting.
Low noise and better sound performance design
Power: AC 18V
Specification:
Regulated Output Voltage: 48V +/- 2V DC
Short Circuit Output Current: 14mA
Residual Output Noise: -71dBv
Frequency Response: 10Hz ~ 25K Hz
AC input: AC 18V
Jack: Male and Female XLR jack
Size: 127x 77x 40 mm
Weight: 540g
