DAWIN Vehicles And Equipment Limited is a company specializing in the research, design and production of construction machinery for nearly 30 years. We provide the most reasonable solution according to the special demand from different customers. Our main products for construction machinery are as follows: Concrete mixer, concrete batching plant, diesel concrete mixer, concrete pump, sand so on. With several researching and producing bases in China, we can provide the powerful technical service and upper quality machinery for the clients all over the world.

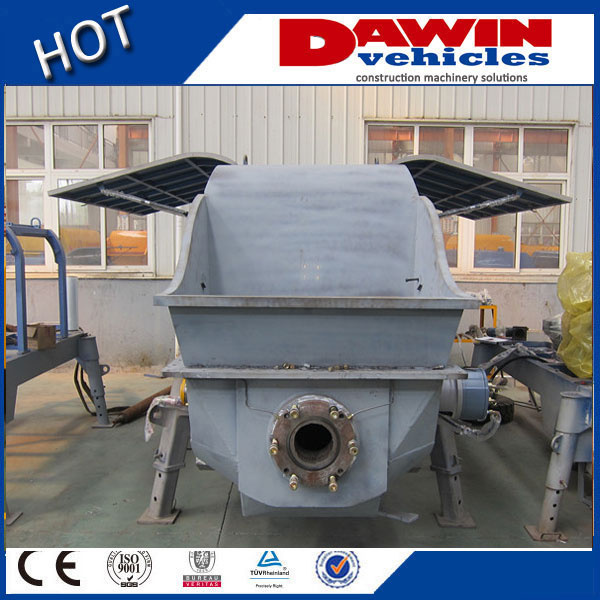

Tunnel Wet spray concrete machine
Advantages:
1, High pumping pressure and long transmission distance.
2, High efficiency, large displacement.
3, Spare parts is not easy to loss, long service life.
4, Simple and environment
5, Multi-usage, it also can be used for wet spraying machine and concrete pump
|
Item | Unit | Parameters |
| Whole machines performance | Max. discharging volume | m³/h | 10 |
| Max. delivery pressure | Mpa | 6 |
| Max. delivery frequency | times/min | 11 |
| Theoretical Delivery distance | Vertical | m | 80 |
| Horizontal | m | 200 |
| Distribution valve type |
| S valve |
| Specification of delivery cylinder | mm | Φ140×800 |
| Specification of main oil cylinder | mm | Φ80×Φ50×800 |
| Outlet opening diameter | mm | Φ125 |
| Hopper capacity | L | 300 |
| Feeding height | mm | 1100 |
| Power system | Rated voltage | V | ~380 |
| Main motor power | Kw | 18.5 |
| metering pump power | Kw | 0.75 |
| metering pump displacement | L/h | 0-250 |
| System wind pressure | Mpa | 0.6-0.8 |
| Working wind pressure | Mpa | 0.3-0.5 |
| Air consumption | m³/min | 6-8 |
| Hydraulic system | Hydraulic oil circuit type |
| Open circuit |
| Control mode |
| Electric control(with PLC) |
| Max. oil pressure of main system | MPa | 18 |
| Max. oil pressure of distributing system | MPa | 9 |
| Max. oil pressure of mixing system | MPa | 9 |
| Max. mixing speed | r/min | 24 |
| Oil tank capacity | L | 200 |
| Other parameters | Max. diameter of aggregates | mm | Crushed stone≤10,pebble ≤15 |
| concrete slump | cm | 12-23 |
| Inner dia. of delivery pipe | mm | Φ64 |
| resilience |
| ≤15% |
| Working dust concentration | mg/m³ | ≤10 |
Dimension
(length*width*height) | mm | 4100×1500×1500 |
| Weight | Kg | 1700 |
| Pulling speed | Km/h | ≤8 |
2. Configuration
1. Power:Chinese Famous Brand
2. Main oil pump:LIYUAN (China's top brand), SKS
3. Main oil cylinder: Changsha Xieli, the seal fittings adopt American Parker
4. Setting accelerator pump:Chinese famous brand
5. Hydraulic valve:Beijing Huade
6. electric components:Siemens PLC control
7. hydraulic rubber joints: the complete set is supported by American Eaton.
8. 15m delivery pipeline, spare parts and tools
Configuration of DAWIN Trailer Concrete Pump
1.Power:Electric with world famous brands-Yantai motors and Beide motors o Siemens
Diesel with original VOLVO and LOVOL engines
2.Main oil pump:German HAWE,Rexroth series and Japanese Kawasaki series
3.Main oil tank:seals adopt American Parker
4.Hydraulic valve:Shanghai Lixin, Beijing Huade.
5.Electric parts:Main electric elements are from Schneider, Omron and LS
6.Pipe Joints: Eaton ; pipeline original from Italy supported by Eaton
7.100 delivery pipeline, spare parts and maintenance tools
Constitution of the DAWIN Trailer Concrete Pump
1. Why should I choose your Trailer Concrete Pump?
We are a professional manufacturer of Trailer Concrete Pump for 13 years,In our country, we attended many national projects and the customers are satisfied with our quality. All these can meet your requirements. So I think our product is your best choice.
2. Do you have CE certification and do you have ISO9001:2008 certification?
Yes, all our Trailer Concrete Pump are CE certified and our production process has passed the ISO9001:2008 standards.
3. Which country have you exported to?
DAWIN Trailer Concrete Pump have exported our products to Algeria, Indonesia, Russia, Kazakhstan, Kyrgyzstan and Turkey etc.
4. What about the Truck Concrete Boom Pump delivery time?
Generally, the manufacturing time is about 15-30 days. The transport time is different according to your region.
5. What about the after-sale service and product warranty.
We will dispatch our engineers to your country to help you with the installation of Trailer Concrete Pump and training your workers. The warranty time is 12 month after it built.
6. What about the price of Truck Concrete Boom Pump?
We promise to give you the most favorable price to establish a long-term win-win cooperation with you.
7. What payment method can you accept?
Generally, T/T or 100% LC at sight is the best for us.
8. Can we be your agent in our country?
Yes, no problems for our Trailer Concrete Pump .
