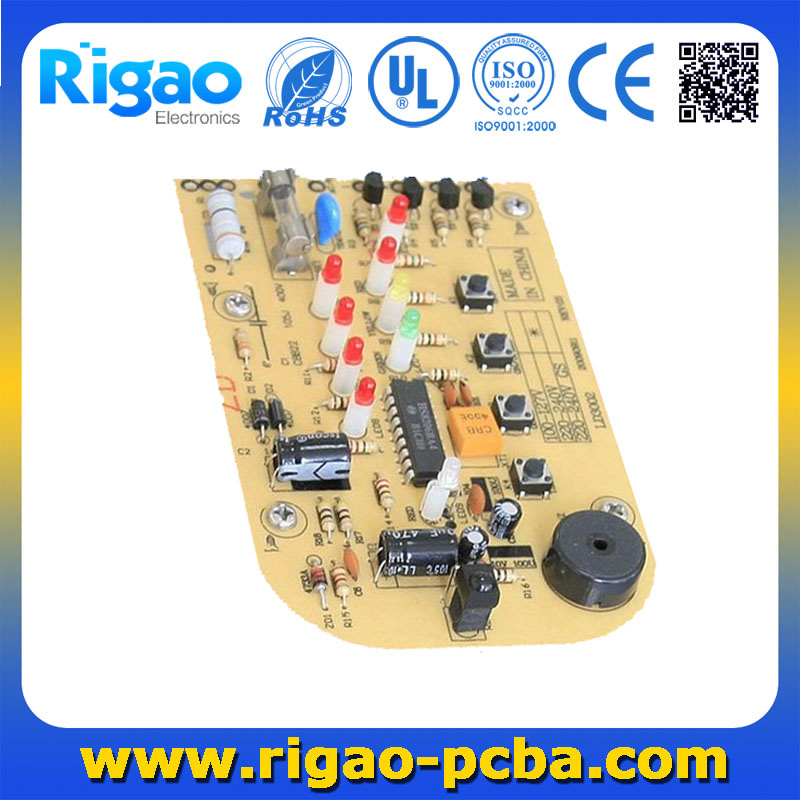

Components of a Printed Circuit Board
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering a cost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 22 Layers),
Flexible PCB/FPC (1~6 Layers),
Rigid-Flex (2~10 Layers),
Aluminum-based PCB (1~4 Layers),
High Density Interconnection/HDI PCB,
High frequency material PCB
Assembly Services
Components purchasing
Product Description:
1. Single-sided PCB/PCBA Assembly, double side & multi-layer PCB/PCBA Assembly with competitive price, good quality and excellent service.
2. CEM-1, CEM-3 FR-4, FR-4 High TG, Aluminum base material.
3. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP surface treatment.
4. Printed Circuit Boards are 94V0 compliant, and adhere to IPC610 Class 2 international PCB standard.
5. Quantities range from prototype to medium batch production.
6.100% E-Test.
Manufacturing Capability for PCB Board
1). Material type: CEM-3,FR-4,FR-4-TG170/TG180,Halogen Free,Rogers,Arlon,Taconic,Isola,PTFE, Bergquist
2). Surface Treatment: HASL,HASL lead-free,HAL,Flash gold,immersion gold,OSP,Gold Finger Palting,Selective thick gold plating, immersion silver,immersion tin, Carbon ink,peelable mask
3). Solder mask colour: Green/MATT Green/Blue/Yello/White/Black/Red
4). Board Size: 650mm*1000mm
5). Board Layer: 1L-26L
6). Board thickness: 0.2mm to 6.0mm
7). Finished Copper thickness: 0.5 OZ to 6 OZ
8). Min. drilled hole size: 3mil (0.075mm)
9). Min. Line width/Line spacing: 3mil/3mil
10). Copper thickness in hole: >20um
11). Board thickness tolerance: ±10%
12). Outline tolerance: Routing:±0.1mm,Punching:±0.1mm
13). Hole tolerance: PTH: ±0.076mm , NPTH: ±0.05mm
14). impedance control tolerance: ±10%
15). Warp and Twist: <0.75%
16). Tested by:Flying-Probe Tester, Fixture tester , Visual Inspection
17). Special requirements: Buried and blind vias, impedance control, thick Cu PCB,selectivity plating gold 30 microinch
18). Profiling: Punching, Routing, V-CUT, Beveling
19). Certificate: UL,ISO 9001,ISO14001,ROHS
20). We have a sound quality management system,Ensure the quality of all products
Why choose us?
Our manufacturing and quality control processes are ISO 9001:2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best."
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, " To be the most reliable supplier of PCB and PCBA."
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
