Product Specifications
| Prod Model: |
5XFSZ-25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White/Green/Blue |
| Application: |
All |
| Appearance: |
Horizontal |
| Type: |
Cleaning Machine |
| Press Materials: |
Grain/Seed |
| Press Series: |
98% |
Product Description

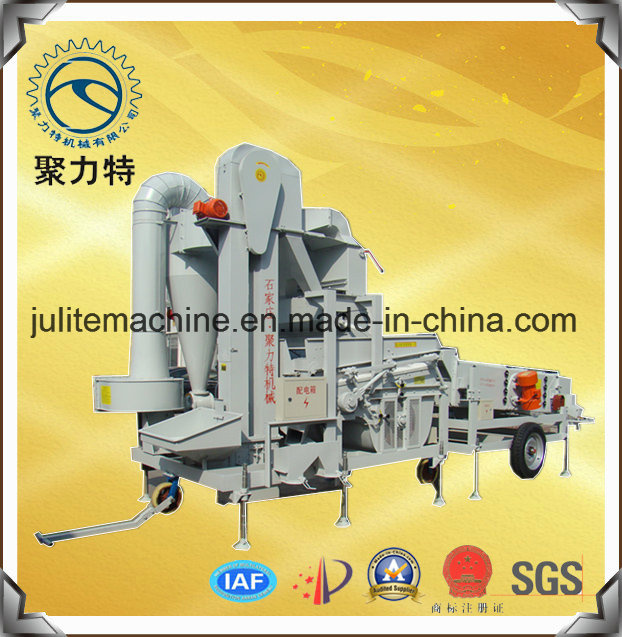

This machine consists of ultra low speed, no broken elevator, vertical air screen, cyclone duster system, large proportion platform, vibrating and grading screen. It can remove dust, chaff, shell and other light impurities, It also can remove the blighted seed, budding seed, damaged seed (by insect), rotten seed, deteriorated seed, moldy seed, non-viable seed, seed with black powder sick. When the large and small impurity have removed, the finished product separate to best, medium and small particles.
Features:
1 This machine can replace Gravity separator. If need feed into the Gravity separator, can improve the purity of grain/seed. So as to reducing the load of Gravity table, increase the production;
2 For the processing of wheat, rice, corn, soybean, sorghum and other commodity grain, productivity can reach 25t/h, and can remove more than 90% blighted seed, budding seed, damaged seed (by insect), rotten seed, deteriorated seed, moldy seed, non-viable seed, seed with black powder sick;
3 Selecting grain by air-screen, gravity table, vibrating screen. Labor, energy saving and consumption reducing;
4 vertical air sieve structure, equipped with a cyclone duster system, Environmental, no large dust leakage;
5 can be equipped with elevator, screw conveyor, belt conveyor, is flexible and convenient.
Specification:
(we provide Seed Cleaner, Seed Processing Machine, Sifting Machine, Seed Cleaning Machine, Grain
Cleaner, Grain Processing Machine, Sesame Seed Cleaning Machine, Coffee Bean Cleaning
Machine, Gravity Separator, Sesame Seed Cleaner, Wheat Seed Cleaning Machine, Magnetic
Cleaner, Pea Beans Cleaning Machine, Sorghum Cleaning Machine, Buckets Elevator, Beans
Cleaning Machine, Grain Separator, Seed Cleaner Gum Grader, Seed Grader, Vibration Grader)
| Name | Model | Layer | Sieve size(mm) | Power
Kw | capacity(T/h) | Weight
Kg | Overall size
L× W× H mm |
| Gravity | grader | seed | grain |
compound
cleaner | 5XFSZ-25C | Four | 1700x1700 | 1500x2400 | 11.5 | 10-15 | 25 | 2510 | 6200× 2300× 3600 |
Established in 2006, Shijiazhuang Julite Machinery Co., Ltd is a professional manufacturer of seeds grain cleaning machines, a combination of researching, manufacturing, selling and service. Covering an area of ten thousand square meters, the factory is located in hi-tech industrial develop zone and its annual output is over 3000 sets.
Our company consists of nine departments: Customer service centers, marketing department, international trade department, production department, purchase department, technical department, quality control department, finance department, and personnel department. The company owns more than 200 employees, including 15 professional technicians, 4 senior engineers, and 5 professional quality inspector.
Our company obtained the ""and "" two registered brand in 2009 and 2011, . And our products obtained the promotion certificate of agricultural machine for two years successively. Some advanced production also get the patent certificate. In May, 2011, our company passed the ISO 9001: 2008 quality managing system certification. Our products Air-screen Cleaner, De-stoner and Gravity Separator awarded the 'China Top Ten Agricultural Machines" in 2013. We get the right to export our products to overseas. By far, our products have been exported to United States, Argentina, Bolivia, Venezuela, Turkey, Ukraine, Thailand, Laos, the Philippines, Myanmar, Indonesia, Taiwan, Hong Kong, Australia, Dubai, Egypt, Mali, Nigeria, Sudan, Ethiopia, Somalia, Uganda, Kenya, Tanzania, Burkina Faso, Mozambique, Madagascar and other countries and regions
Sticking to the managing principle 'Keep hearts together, Supply excellent machines' our company has successfully developed the Air-screen Cleaner, Gravity Separator, De-stoner, Magnetic Separator, Air-screen Cleaner with Gravity Separator, Sheller, Double-screen Sunflower Seed Cleaner, Beans Polishing Machine, Vibration Grader, Seeds Coating Machine, Automatically Weighing and Packing Machine and all kinds of elevators.
We firmly believe 'Where there are grain and seeds, There are Julite Machines'.
